Euromaid WM8 User Manual

Front-load washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Washing Machine

User's Manual
WM8
Document Number
2820523662/
18-09-13.(9:52)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM8 and is the answer not in the manual?

Questions and answers

Related Manuals for Euromaid WM8

Summary of Contents for Euromaid WM8

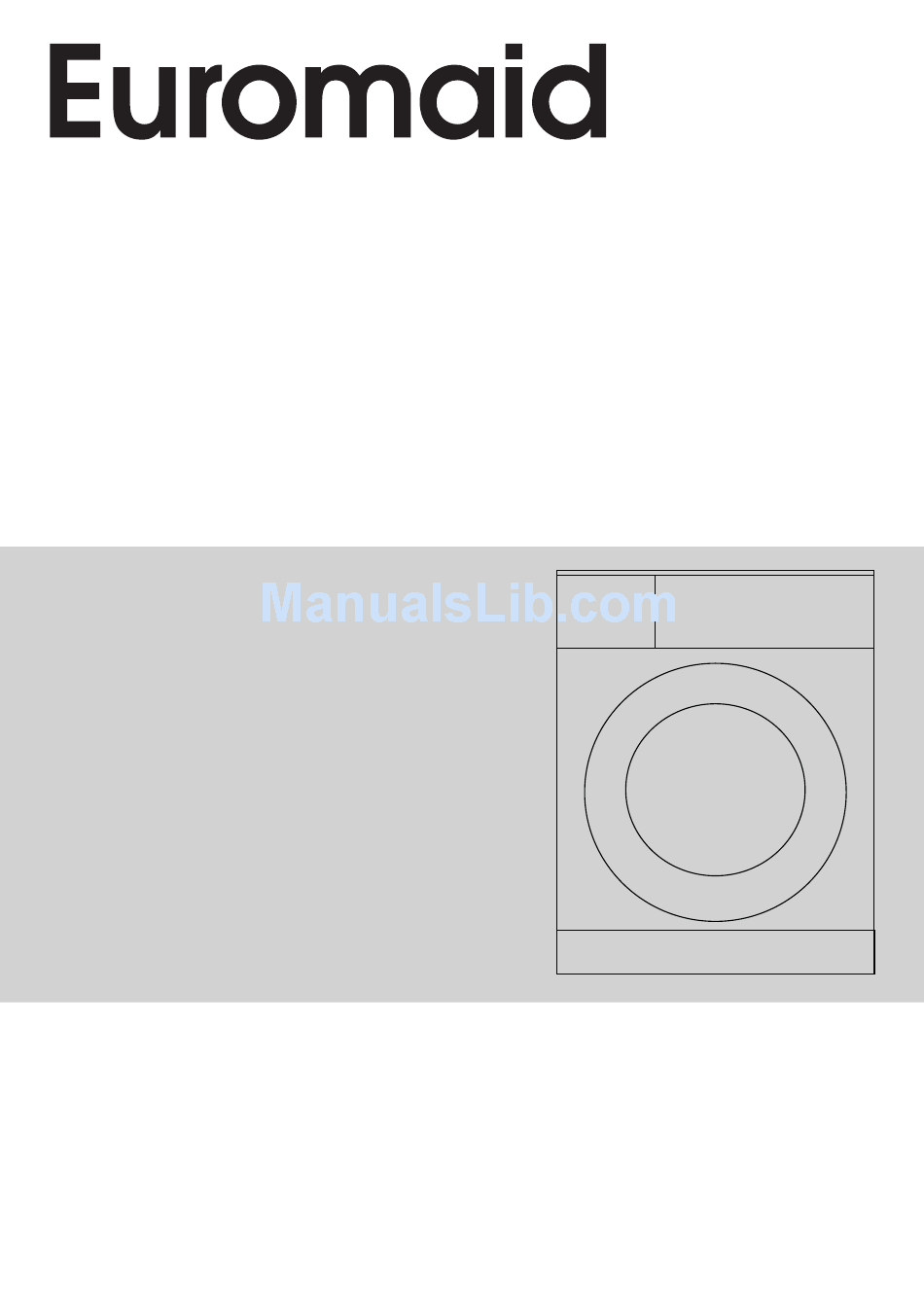

  • Page 1: Washing Machine

    Washing Machine User’s Manual Document Number 2820523662/ 18-09-13.(9:52)

  • Page 2: Important Instructions For Safety And Environment

    1 Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack expe- rience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out.

  • Page 3: Intended Use

    1.2 Intended use • This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • The product must only be used for washing and rinsing of laundry that are marked accordingly.

  • Page 4: Connecting Water Supply

    2 Installation 1. Loosen all the bolts with a suitable spanner until they rotate freely (C) . Refer to the nearest Authorised Service Agent for installation 2. Remove transportation safety bolts by turning them of the product. To make the product ready for use, review gently.

  • Page 5: Connecting To The Drain

    3. Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leaks occur, turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent water leakages and damages caused by them, 1.

  • Page 6: Initial Use

    3 Preparation 3.4 Initial use Before starting to use the product, make sure that all 3.1 Sorting the laundry preparations are made in accordance with the instructions in • Sort laundry according to type of fabric, colour, and sections “Important safety instructions” and “Installation”. degree of soiling and allowable water temperature.

  • Page 7: Loading The Laundry

    • Wash woolens with special detergent made specifically 3.6 Loading the laundry for woolens. 1. Open the loading door. 2. Place laundry items loosely into the machine. Use only detergents manufactured specifically warning 3. Push the loading door to close until you hear a locking for washing machines.

  • Page 8: Tips For Efficient Washing

    • If the gel detergent thickness is not fluidal or in the shape detergent in the prewash compartment. As an alternative of capsule liquid tablet, put it directly into the drum before application, select a programme with extra rinse and add washing.

  • Page 9: Operating The Product

    4 Operating the product 4.1 Control panel 1 - Programme Selection knob (Uppermost position On / Off) 5 - Start / Pause button 2 - Display 6 - Auxiliary Function buttons 3 - Delayed Start button 7 - Spin Speed Adjustment button 4 - Programme Follow-up indicator 8 - Temperature Adjustment button 4.2 Preparing the machine...

  • Page 10: Additional Programmes

    4.5 Additional programmes If you wish to drain only the water without spinning your laundry, select the Pump+Spin programme and then select For special cases, additional programmes are available in the No Spin function with the help of Spin Speed Adjustment the machine.

  • Page 11: Programme And Consumption Table

    4.9 Programme and consumption table Auxiliary functions Selectable Programme temperature range °C Cottons 2.60 1600 • • • • • • • Cold-90 Cottons 1.80 1600 • • • • • • • Cold-90 Cottons 0.90 1600 • • • •...

  • Page 12: Auxiliary Function Selection

    4.10 Auxiliary function selection If you want to spin the laundry held in water, adjust the Spin Speed and press Start / Pause button. Select the desired auxiliary functions before starting The programme resumes. Water is drained, laundry is spun the programme.

  • Page 13: Progress Of Programme

    4.11 Starting the programme 4.13 Progress of programme Press Start / Pause button to start the programme. Progress of a running programme can be followed from the Programme follow-up light showing the startup of the Programme Follow-up indicator. At the beginning of every programme will turn on.

  • Page 14: Maintenance And Cleaning

    5 Maintenance and cleaning 4.16 Canceling the programme To cancel the programme, turn the Programme Selection Service life of the product extends and frequently faced knob to select another programme. Previous programme problems decrease if cleaned at regular intervals. will be canceled. End / Cancel light will flash continuously to 5.1 Cleaning the detergent drawer notify that the programme has been canceled.

  • Page 15: Draining Remaining Water And Cleaning The Pump Filter

    5.4 Cleaning the water intake filters 5.2 Cleaning the loading door and the drum There is a filter at the end of each water intake valve at the Residues of softener, detergent and dirt may accumulate rear of the machine and also at the end of each water intake in your machine in time and may cause unpleasant odours hose where they are connected to the tap.
  • Page 16 In order to clean the dirty filter and discharge the water: Discharging the water when the product does not have an 1. Unplug the machine to cut off the supply power. emergency draining hose: Temperature of the water inside the machine warning may rise up to 90 ºC.

  • Page 17: Technical Specifications

    6 Technical specifications Models (EN) Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) 230 V / 50Hz Electrical input (V/Hz) Total current (A) 2200 Total power (W) Spin speed (rpm max.) 1200 Technical specifications may be changed without prior notice to improve the quality of the product. Figures in this manual are schematic and may not match the product exactly.

  • Page 18: Troubleshooting

    7 Troubleshooting Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> To cancel the programme, turn the Programme Selection knob to select another programme. Previous programme will be cancelled. (See “Canceling the programme”) Water in the machine.
  • Page 19 19 / EN Washing Machine / User’s Manual...
  • Page 20 20 / EN Washing Machine / User’s Manual...
