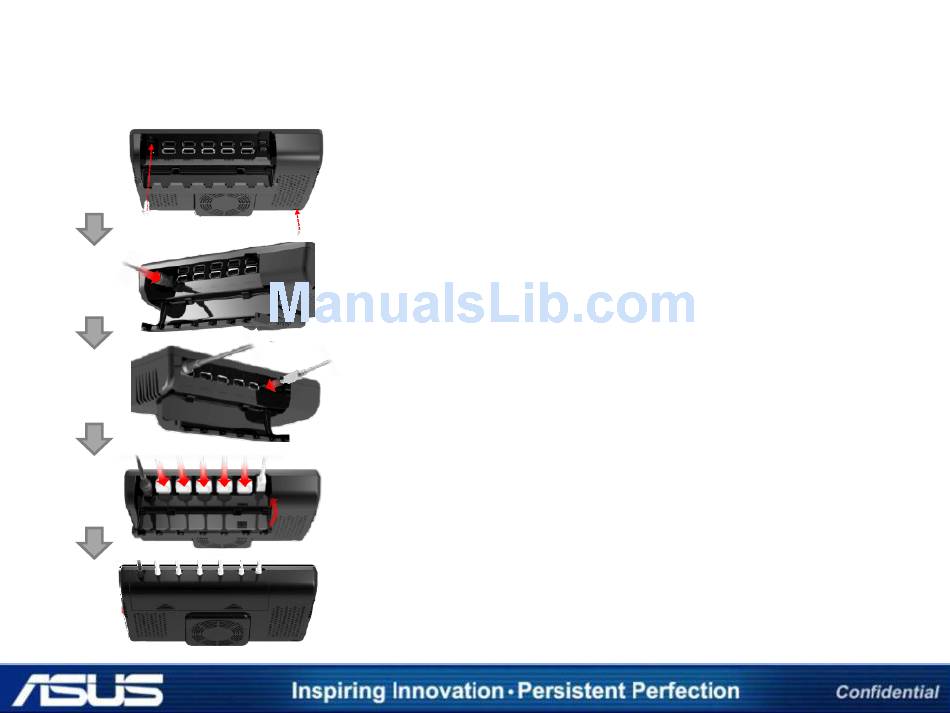

5 PORT DETAIL INSTALLATION PROCEDURE
STEP 4 - CONNECTING THE CHARGING & SECURITY CABLE
For the final installation, determine where the control box
will be located, then lock the control box onto the
determined location with two screws (4.5x12 mm; prepare
a "+" screwdriver beforehand).
Plug the power tip of the AC adaptor into the power-in
port of the control box, and plug the power cable into an
AC outlet (AC 110-220V; please use the enclosed plug
gender for 110V).
Plug the mini USB connector of the IR sensor into the mini
USB port of the control box.
Plug the USB connectors of the charging & security cables
into the USB ports of the control box (up to 5 cables can be
connected at once).
Close the lid. The installation is completed.
