5 PORT DETAIL INSTALLATION PROCEDURE

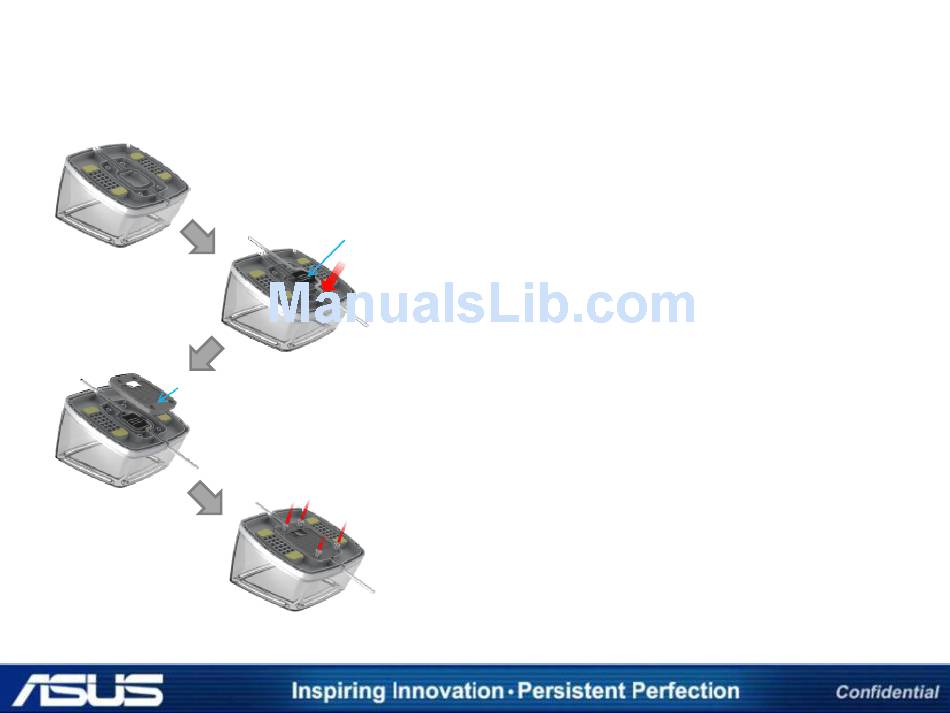

STEP 2 - ASSEMBLING THE CRADLE

Bottom lid
Position guide label
In order to make the assembling works more easier,
place the bottom of cradle facing up wards.
Match the position guide label on the middle of
the cradle, and push the charging & security cable
along the furrow.
After finish all the installing processes described
above, close the bottom lid and fasten the screws.
