5 PORT DETAIL INSTALLATION PROCEDURE

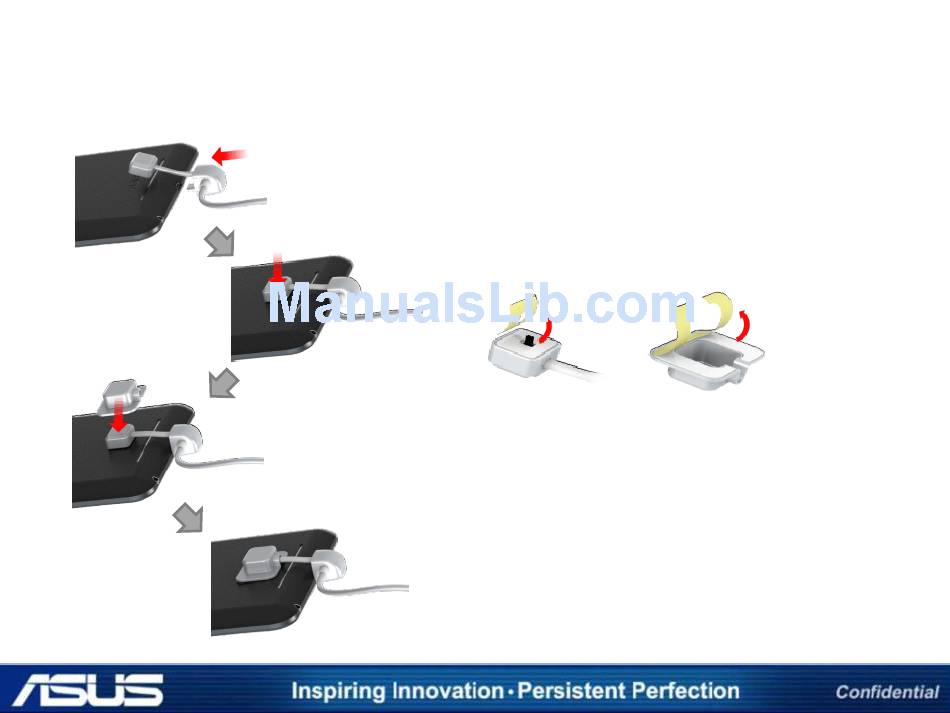

STEP 3 - CONNECTING THE CHARGING & SECURITY CABLE
Plug the charging & security connector to the charging port
of tablet device.
※ The position of the charging port may vary depending
on the product.
Remove the dust or contaminants on sensor attachment
location and stick the security-sensor after peel off the
protecting film. (Refer the left image)
Security sensor
Stick the sensor cap on the security sensor after peel off
the protecting film. (Refer the left image)
※ The adhesion of the double-sided tape used for security
sensor attachment may vary depending on the material of
the adhesion side and the bend of the surface and the
adjacent temperature. Considering the nature of the
double-sided tape, the normal degree of adhesion can be
achieved at least 24 hours after adhesion.
After mounting the sensor, connect the charging & security
cable to the mobile phone.
Sensor cap
