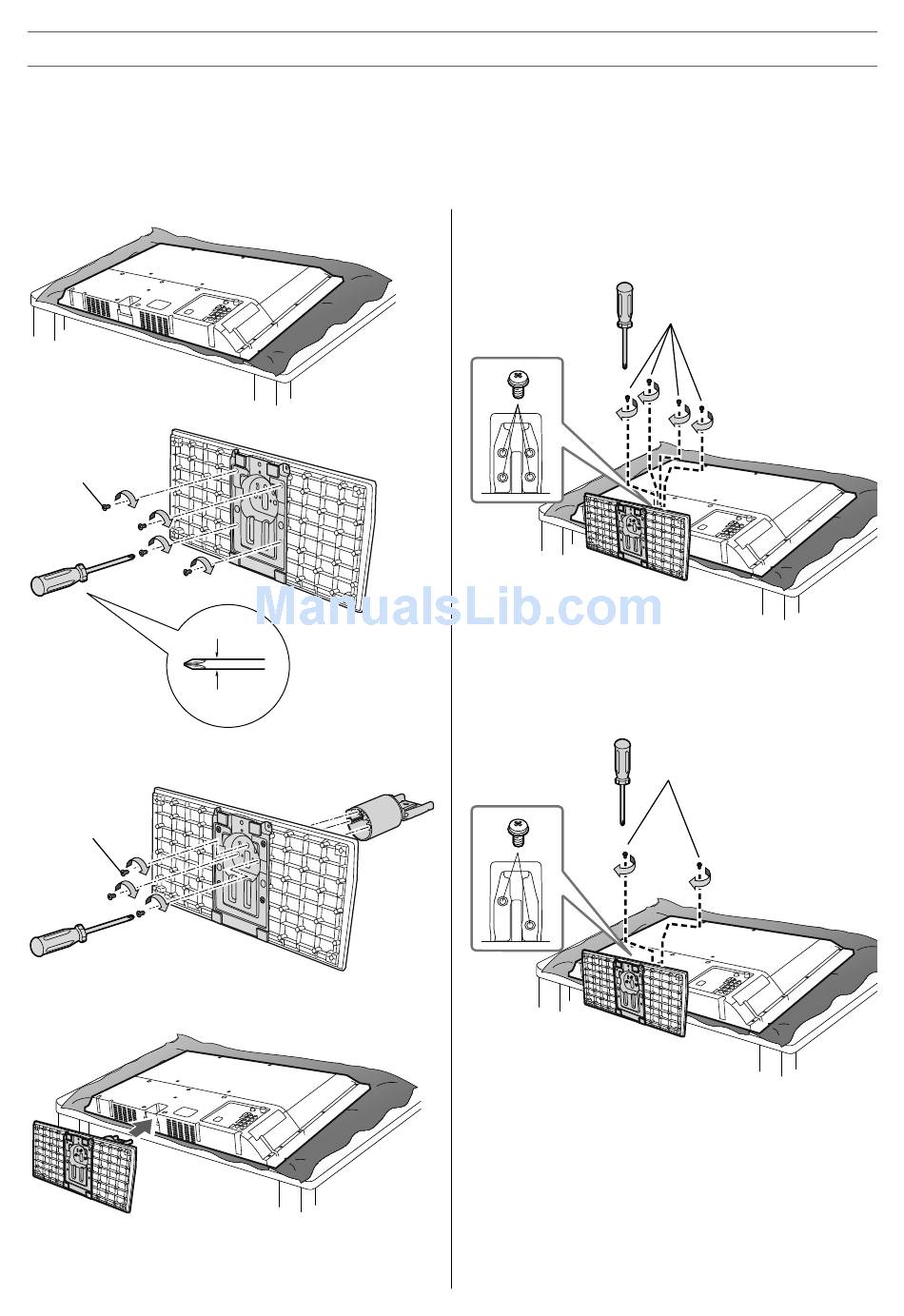

Pedestal stand Assembling

CAUTION: Before beginning pedestal assembly, carefully lay the front of the LCD Panel face down on a fl at,
cushioned surface such as a quilt or blanket. Leave the bottom of the unit protruding over the edge of the
surface and assemble as indicated.
Note:
Extreme care should always be used when attaching the pedestal stand to avoid damage to the LCD panel.
1
2
M4 × 4
3
M5 × 3
4
M6 mm
5
32PU200 Series / 40PU200 Series models
Warning: Ensure the power cable is not pinched
when attaching the pedestal stand as this could
cause an electric shock.
23PU200 Series models
Warning: Ensure the power cable is not pinched
when attaching the pedestal stand as this could
cause an electric shock.
– 2 –
M5 × 4
M5 × 2
