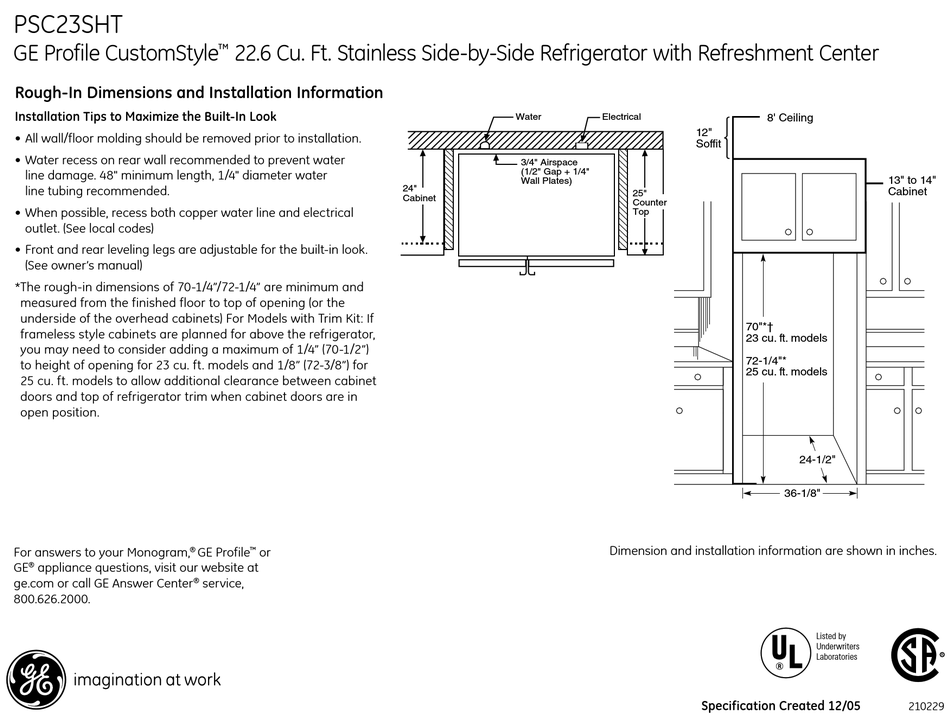

GE PROFILE CUSTOM STYLE PSC23SHT Dimension Manual page 2

PSC23SHT
GE Profile CustomStyle
Rough-In Dimensions and Installation Information
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner's manual)
* The rough-in dimensions of 70-1/4"/72-1/4" are minimum and
measured from the finished floor to top of opening (or the
underside of the overhead cabinets) For Models with Trim Kit: If
frameless style cabinets are planned for above the refrigerator,
you may need to consider adding a maximum of 1/4" (70-1/2")
to height of opening for 23 cu. ft. models and 1/8" (72-3/8") for
25 cu. ft. models to allow additional clearance between cabinet
doors and top of refrigerator trim when cabinet doors are in
open position.
For answers to your Monogram, ®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Refreshment Center
™
GE Profile ™ or
® service,
Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 24 CUBIC FOOT MODELS
Electrical 8' Ceiling
12"
Soffit
24"
25"
Cabinet
Counter
Top
70"*†
Fig 2A eps
23 cu. ft. models
72-1/4"*
25 cu. ft. models
*The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2" for 25 cu. ft.
models are minimum and measured from the finished floor to top of opening
(or the underside of the overhead cabinets). For models with trim kit:
Dimension and installation information are shown in inches.
If frameless style cabinets are planned for above the refrigerator, you may
need to consider adding a maximum of 1/4" (70-1/4") to height of opening
for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow additional
clearance between cabinet doors and top of refrigerator trim when cabinet
doors are in open position.
†Model PSDW3YGX is 71-3/4".
Specification Created 12/05
Collar Trim In. w/ceiling
Water Electrical
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
13" to 14"
Cabinet 25"
Counter
Top
Trim
24-1/2"
36-1/8"
Listed by
Underwriters
Laboratories
210229
