GE PROFILE CUSTOM STYLE PSC23SHT Dimension Manual

PSC23SHT
GE Profile CustomStyle
Dimensions and Installation Information
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90° (in.) F
Width (in.) G
Width with door open 90° inc. door handle (in.) H
Each side (in.)
Top (in.)
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram, ®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Refreshment Center
™
69-1/4
68-3/4
23-7/8
†
26-3/4
†
29-1/4
†
45-5/8
†
35-3/4
41-3/8
1/8
1
1/2
GE Profile ™ or
® service,
A B

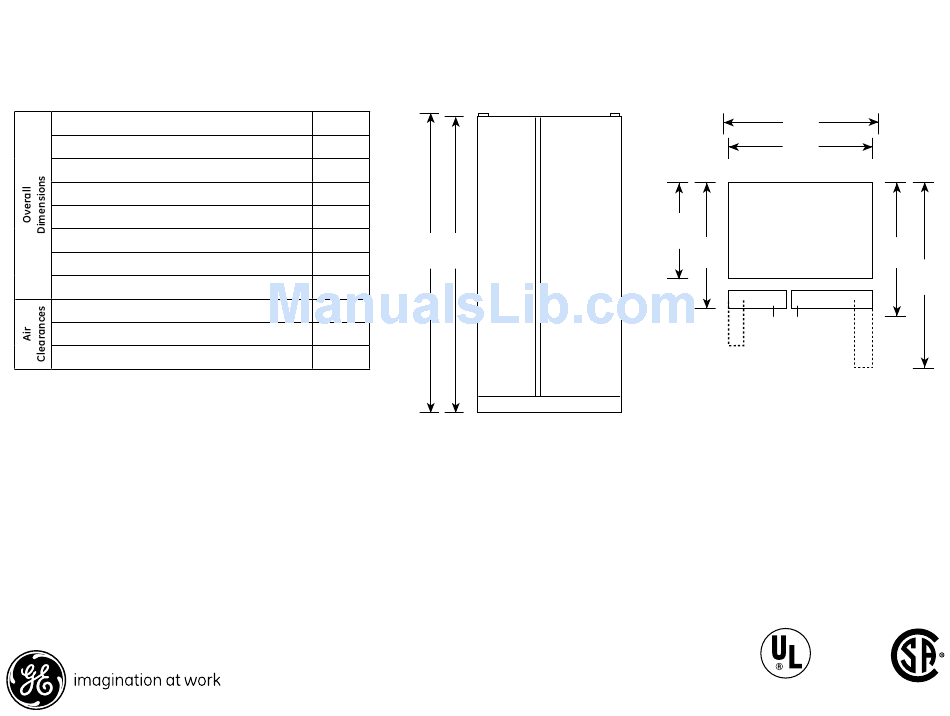

Front View
"94 SxS Refer
C
D
Top View
Dimension and installation information are shown in inches.
Specification Created 12/05
H
G
E
F
