Summary of Contents for Antec HCP-850 Platinum

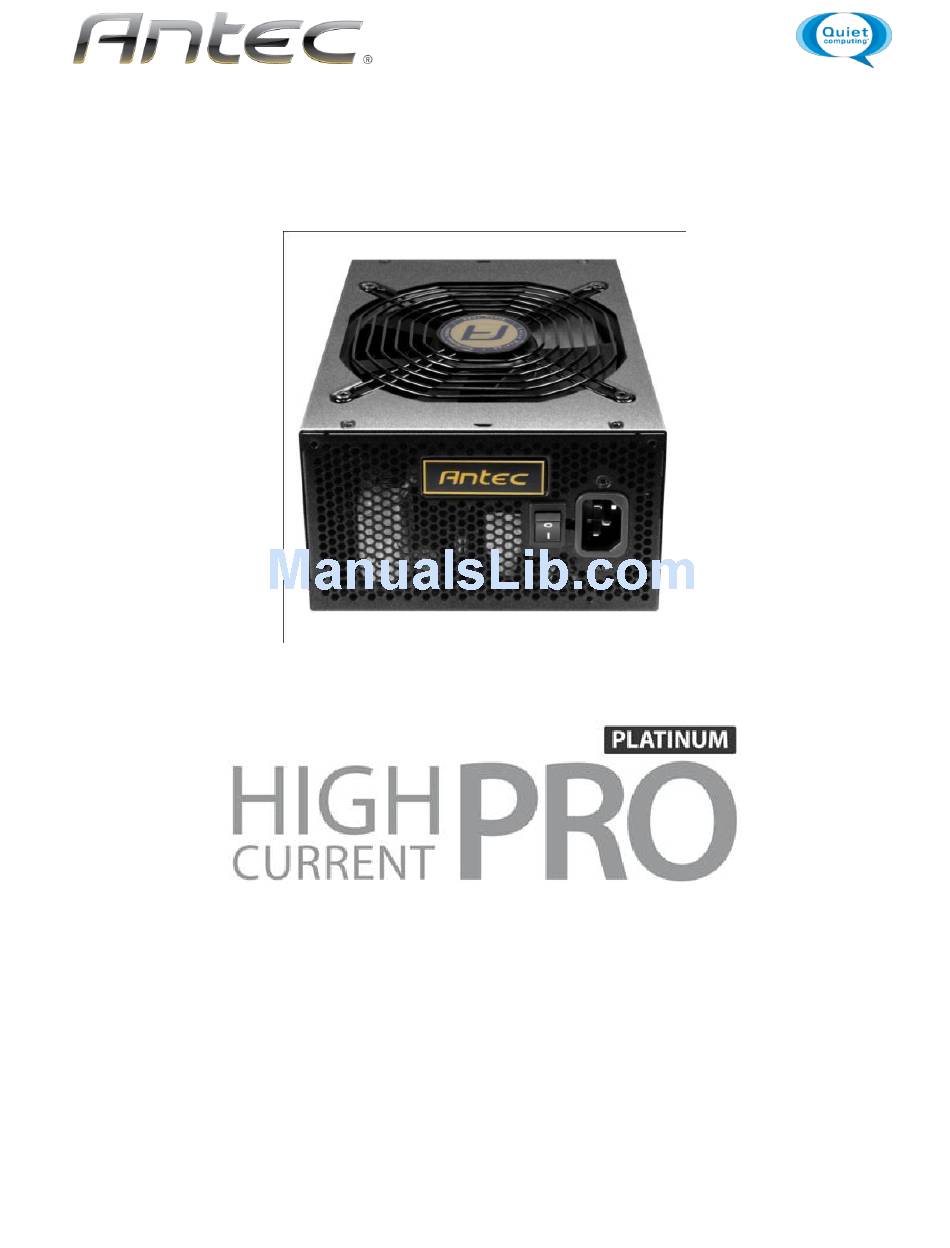

- Page 1 HCP-850 Platinum POWER SUPPLY USER’S MANUAL...
- Page 2 HCP-850 Platinum Antec’s High Current Pro Platinum series is the pinnacle of power supplies. High Current Pro Platinum is fully modular with a revolutionary 20+8-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS® PLATINUM certified & ErP Lot 6: 2013, operating up to 94% efficient, you can reduce your electricity bill by up to 25% when compared to many other power supplies.
- Page 3 MODULAR CABLE JACKS There are six 5-pin black jacks and five 16-pin black jacks on the back of your HCP-850 Platinum PSU. These jacks are for the optional cables that come with your power supply. Caution: Please connect only cables provided with this HCP-850 Platinum. Other cables may not be...
- Page 4 PLUS® certified power supply uses less energy and generates less heat to stay cooler, run quieter and last longer. The HCP-850 Platinum has been 80 PLUS® PLATINUM certified to be at least 89% efficient at a wide range of operating loads; this will lower your operating costs and help protect the environment.
- Page 5 TABLE 2 Cable Quantity Connectors Socket Description 20-pin & 8-pin 24-pin Motherboard 8-pin 8(4+4)-pin ATX12V/EPS12V 8-pin 8-pin EPS12V 16-pin 8(6+2)-pin PCI-E 8-pin 8(6+2)-pin PCI-E 5-pin Molex + FDD 5-pin SATA 5-pin Molex 2-pin OC Link™...
- Page 6 INSTALLATION Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed. Connect the 24-pin main power connector to your motherboard. Connect the 8-pin or 4+4-pin connector for the CPU.
- Page 7 Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with your PSU. PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient, making the hardwired connector the preferred choice. More powerful cards use multiple connectors, including the advanced 8-pin PCI-E connector.
-
Page 8: Technical Support
Tel: 510-770-1200 - Fax: 510-770-1288 www.antec.com ©2012 Antec, Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
