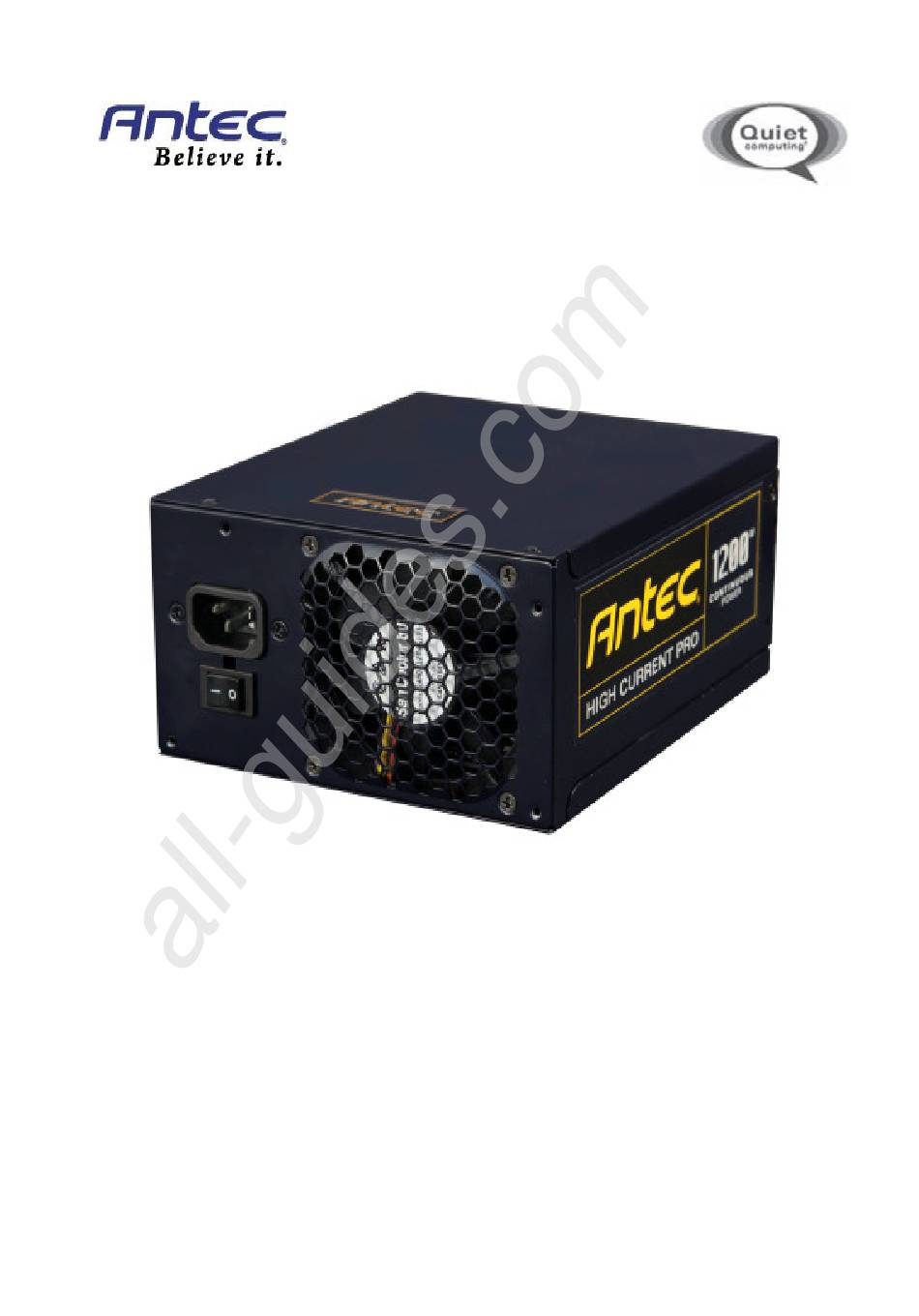

- Page 1 All manuals and user guides at all-guides.com HCP-1200 P OWER UPPLY ’ ANUAL...
- Page 2 Antec’s HCP-1200 unifies raw power with advanced PSU engineering to meet the demands of high performing PCs. A full-featured, 80 PLUS® Gold-certified unit, HCP-1200 is capable of outputting 99 percent of its rated power on its eight +12V rails, which contain high maximum loads to ensure graphics card compatibility. Exclusive to the High Current series, HCP-1200 boasts High Current heavy-gauge 16 AWG wiring that reduces conducted resistance, increasing efficiency and improving power delivery.
-
Page 3: Power Output
Antec’s HCP-1200 is NVIDIA™ SLI™-Ready and ATI CrossFireX™ certified for use with multiple high-end graphics cards for superior parallel graphics processing. OWER UTPUT The HCP-1200 power supply distributes power on separate rails. To see the output capacity and regulation for each different voltage, see Table 1. ABLE Output Voltage Load Max. - Page 4 ACKS There are three black jacks and two red jacks on the back of your HCP-1200 PSU. These jacks are for the optional cables that come with your power supply. The black connectors are used for Molex or SATA cables and the red ones for PCI-Express connectors.
- Page 5 All manuals and user guides at all-guides.com ABLE Cable Quantity Power Connectors Part Name Description 24(20 + 4)-pin main connector 8(4 + 4)-pin ATX12V, EPS 8-pin EPS12V Power supply direct cabling 4 × 8(6 + 2)-pin PCI-E 3 × SATA 3 ×...
-
Page 6: Installation
2. Install the HCP-1200 PSU into your case with the four screws provided. PSU into your case with the four screws provided. - Page 7 More powerful cards use multiple connectors, including the advanced 8-pin PCI-E connector. The 8 E connector. The 8-pin PCI-E connector on the HCP-1200 can be used as either a 6 can be used as either a 6- or 8-pin...
- Page 8 All manuals and user guides at all-guides.com 8. Hard drives, optical drives (CD/DVD/BluRay™) and other accessories will use either the older 4-pin Molex connector or the newer 15-pin SATA connector. 4-pin Molex connectors have two black, one yellow and one red wire.
- Page 9 US & Canada 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2010 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
