Hardware Installation
2.2 D
ETERMINING A
Figure 2 is an example camera layout for a bus application.
Note: For installation of these cameras, see their respective manuals.
Note: Camera layout and fields of view will vary from vehicle to vehicle, and each customer will determine camera names or
descriptions. Camera types, fields of view, and cable lengths will be determined by the customer-specific system layout.
The Front Door camera is located at the front of the bus over the driver's head, looking at the front
passenger entry.
The Forward Facing camera is located in the front of the bus, looking in front of the bus.
The Front to Rear camera is located in the front of the bus, looking down the center aisle to the rear of the bus.
The Rear Facing camera is located at the back of the bus, looking behind the bus.

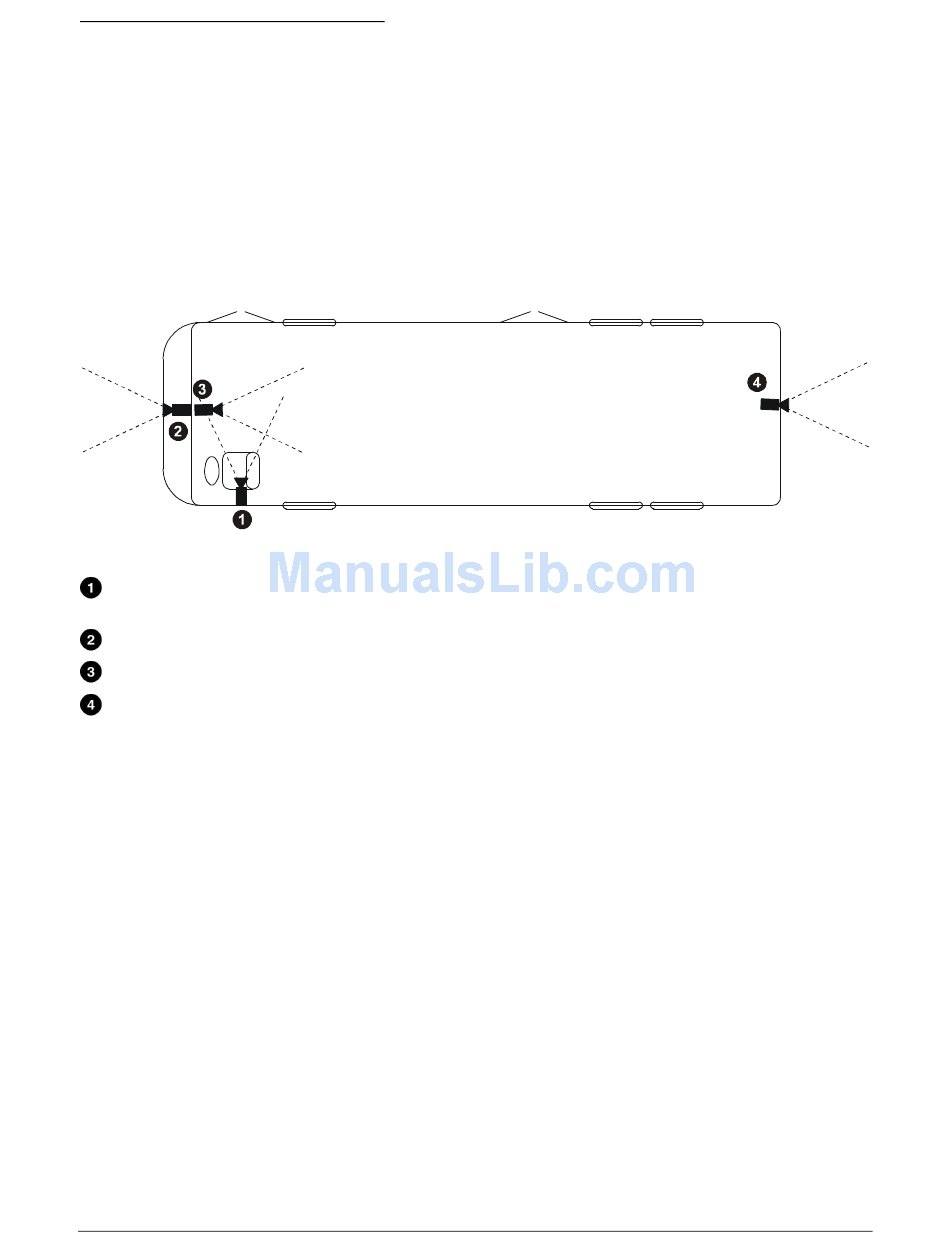

Figure 2. Typical camera placement and fields of view
8
S L
YSTEM AYOUT
