DVR Installation and Wiring

DVR I
3
NSTALLATION AND
A removable hard disk drive (HDD) is housed within the DVR that is mounted to the vehicle. All
connections are made through the terminals at the back of the unit. See Figure 22.
Removable HDD
DVR

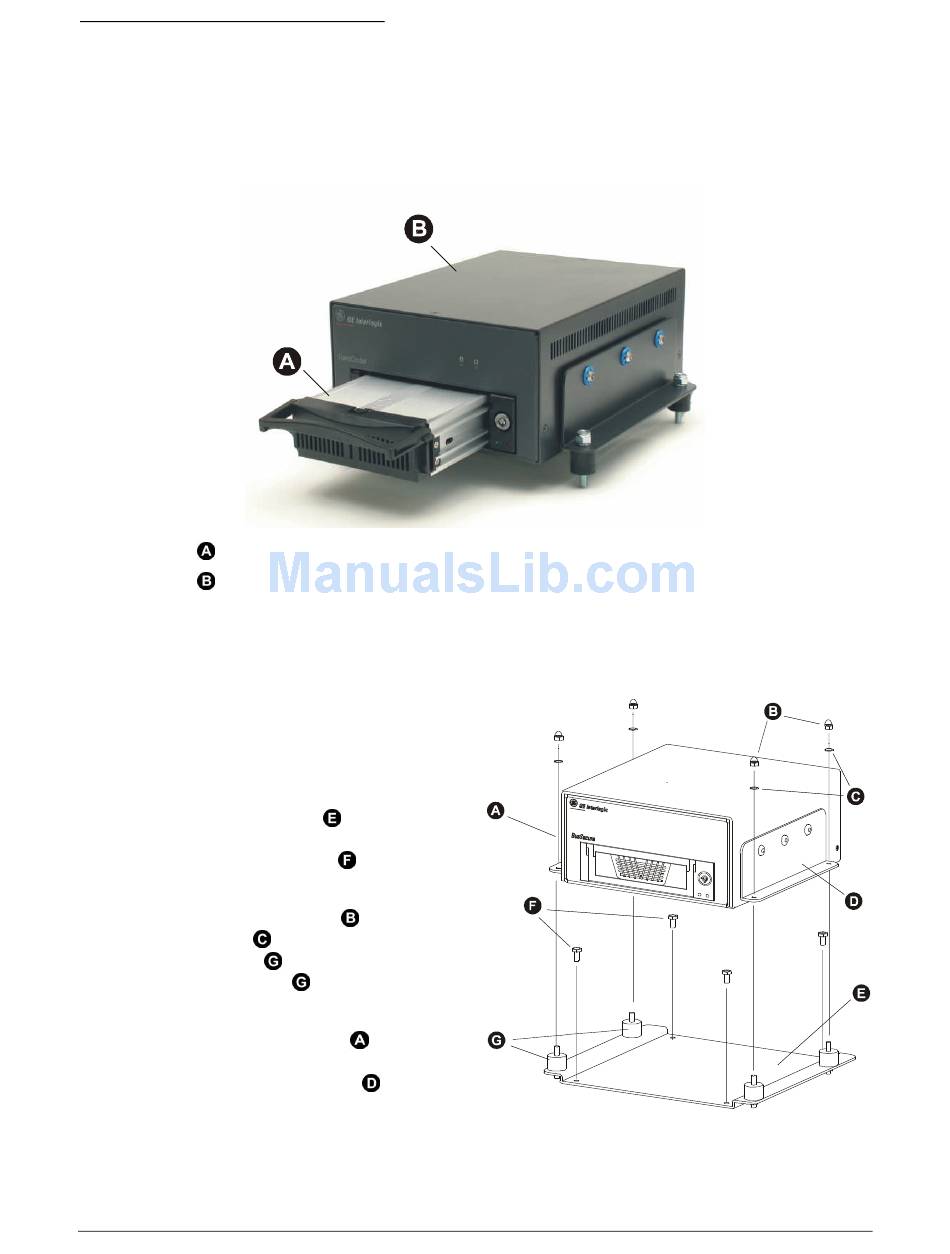

Figure 20. DVR assembly
3.1 M
OUNTING THE
Note: The DVR can be mounted in various orientations
(except upside down), but you must leave enough space
to pull the latch and remove the HDD.
See Figure 21 and perform the following:
1) Mount the mounting plate ( ) to the
vehicle using four nuts and bolts (not
provided) (1/4-20-inch bolts ( ) are
recommended).
2) Remove the four acorn nuts ( ) and
locking washers ( ) from the top of the
vibration isolators ( ) (Do not remove
the vibration isolators ( ) or the bolts
and nuts holding them in place.)
3) Place the DVR outer housing ( ) back
onto the mounting plate by lining up the
holes in the mounting brackets ( ) with
the bolts in the vibration isolators.
4) Reattach the four acorn nuts and locking
washers.
16
W
IRING
DVR
Figure 21. Mounting the DVR
