All wire connections between the DVR and auxiliary devices are made through the DVR's Rear Panel
Assembly (see Figure 22).
Ethernet connector (Use of this connector is optional)
Four-pin Molex (power management board)
BNC connectors (Video inputs Cam 1 – Cam 4)
P2 Terminal Block (Alarm inputs/outputs, status indication, and impact sensor)
(Upper Connector)
P1 Terminal Block (Camera connections) (Lower Connector)

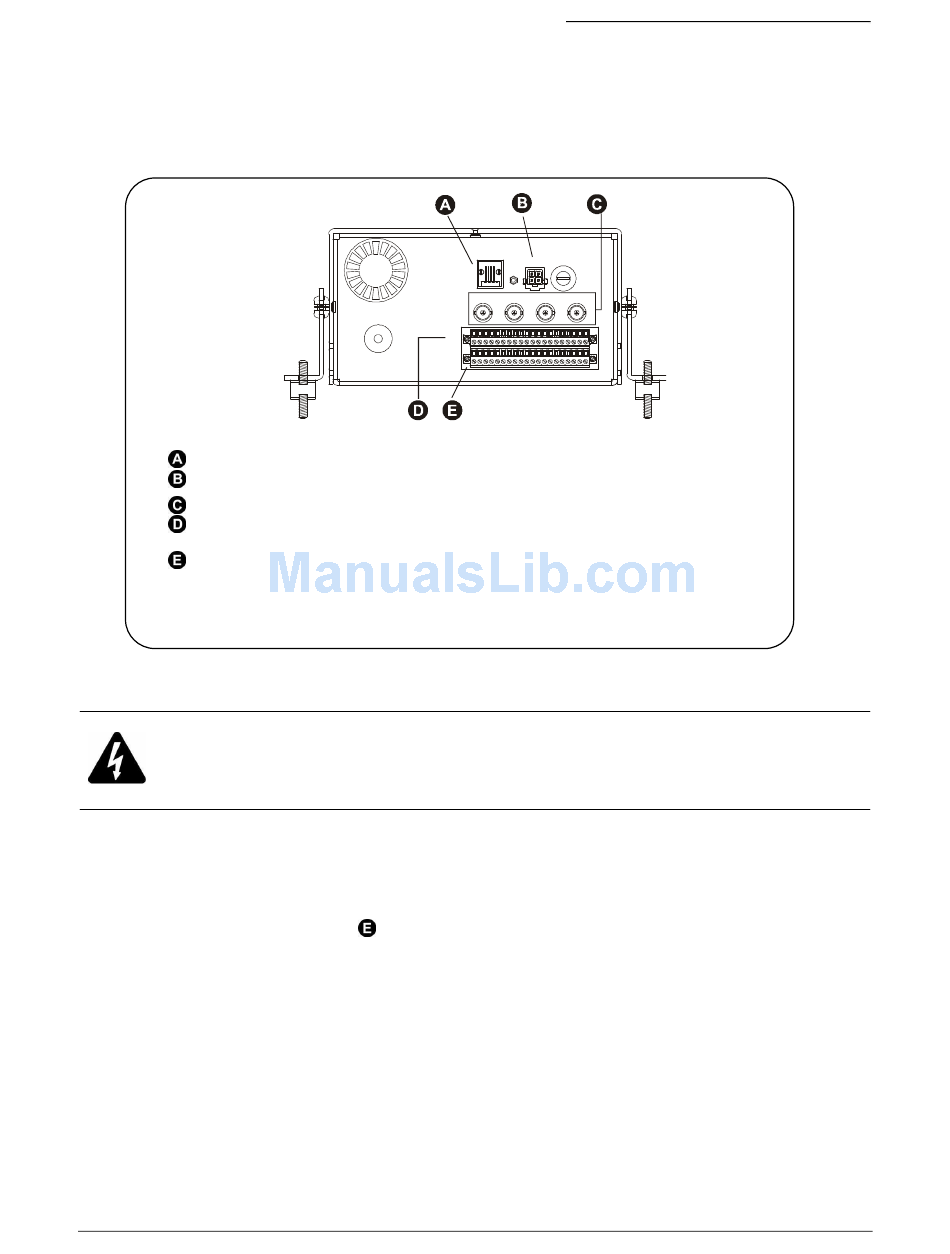

Figure 22. DVR Rear Panel Assembly connections
CAUTION:
Be very careful that you do not confuse the P1 terminal block with the P2 terminal block. The P2
terminal block is positioned above the P1 terminal block. The P1 terminal block is used strictly for
camera connections; the P2 terminal block is used strictly for input/output wiring.
3.2.1.1 P1 T B
ERMINAL LOCK
The P1 terminal block provides power to the vehicle's cameras.
1) Remove the P1 terminal block (
mounting screws and pulling it out of its socket.
2) Make connections as shown in Figure 23. To make connections, strip each wire 3/8 of an inch,
insert it into the appropriate slot, and tighten the terminal screw.
3) Reinstall the P1 terminal block.
0150-0263A / May 2003
DVR
GND
C (L
ONNECTIONS OWER
in Figure 22) from the rear panel assembly by loosening its
ETHERNET
10/100
FUSE
POWER
CAM1 CAM2 CAM3 CAM4
P2
P1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
C )
ONNECTOR
