4.1.2 C C
ONFIGURE AMERAS

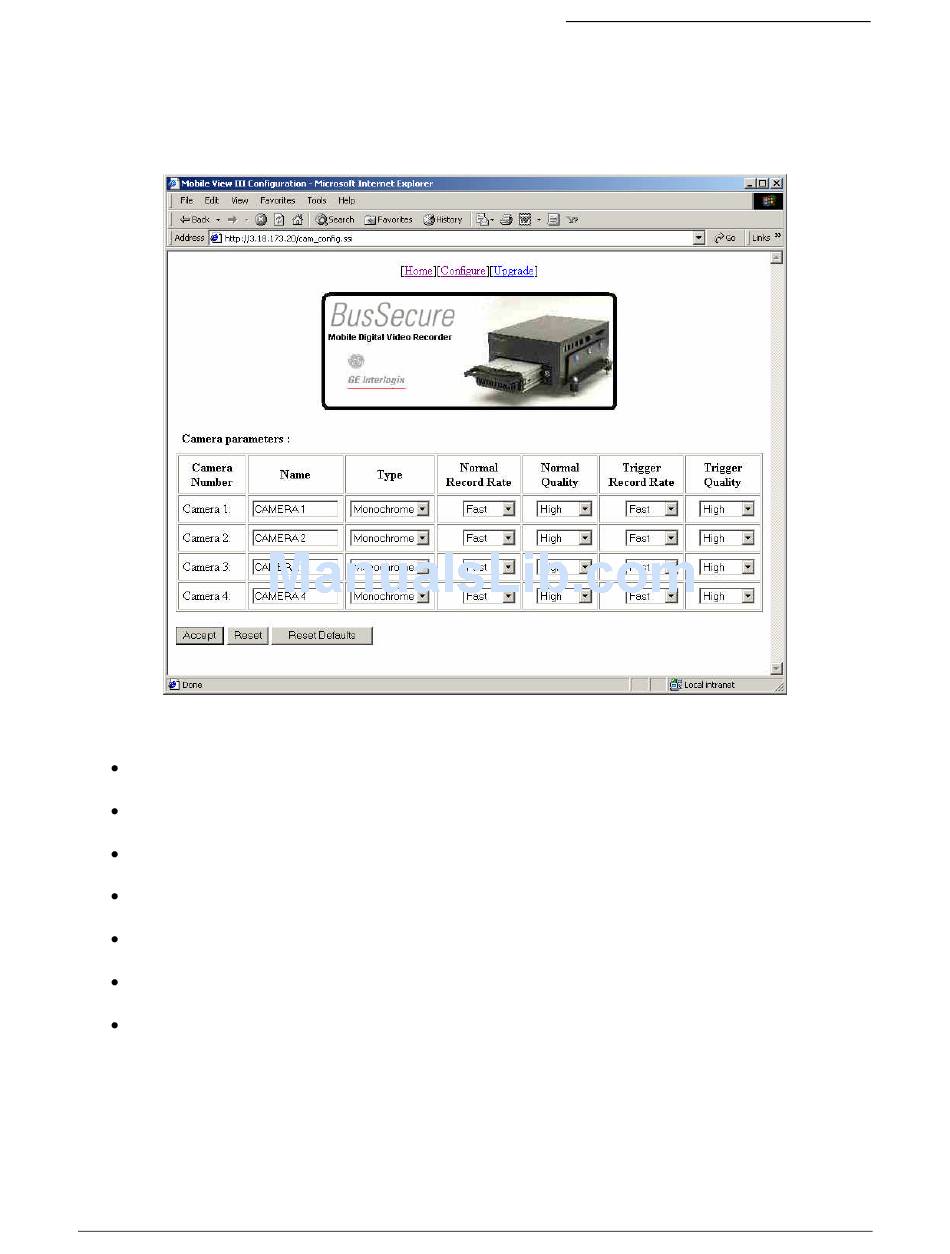

Click on the Configure Camera option to display the following screen:
The configuration options on this page include:
Name – User supplied camera name or designation.
Type – Camera type, Color or Monochrome.
Normal Record Rate* – Fast, Normal, or Slow.
Normal Quality – High, Medium, or Low.
Trigger Record Rate* – Fast, Normal, or Slow.
Trigger Quality – High, Medium or Low.
AGC Level – Automatic Gain Control (Positive numbers makes the images brighter, Negative
numbers make the images darker, and 0 is the default value). Select from +5 to –5.
A Reset Defaults button is also available. Click the Accept button to enter the changes or click the
Reset button to undo any changes.
*Note: The Normal and Trigger record rate programming feature of any camera in the system depends on the capture rate
of the other cameras. Therefore, if you want camera 1 to capture images at a faster rate than other cameras in the system,
you must set camera 1's capture rate (Normal or Trigger) to fast and the other cameras capture rates to normal or slow.
