Wireless Pushbutton
Required Tools: Small flat blade screwdriver, drill, drill bit, and phillips screwdriver.
Included Hardware:
(2) 3x20mm screws
(2) Double sided adhesive pads
Required Tools: Small flat blade screwdriver, drill, drill bit, and phillips screwdriver.
Chime Tune Setting
All wireless chimes may have more than one push button. The chime tune for each push
button is set with jumpers 7-9.
Single Push Button Kit: If you purchased a kit with a single push button, the chime
tune will be set to Ding Dong from the factory.
Dual Push Button Kit: If you purchased a kit with two push buttons, one push button
will be set to Ding Dong and the other push button will be set to Westminster from the
factory.
The following instructions explain how to change the tune on any wireless push button.
1. Remove the battery from the push button transmitter.

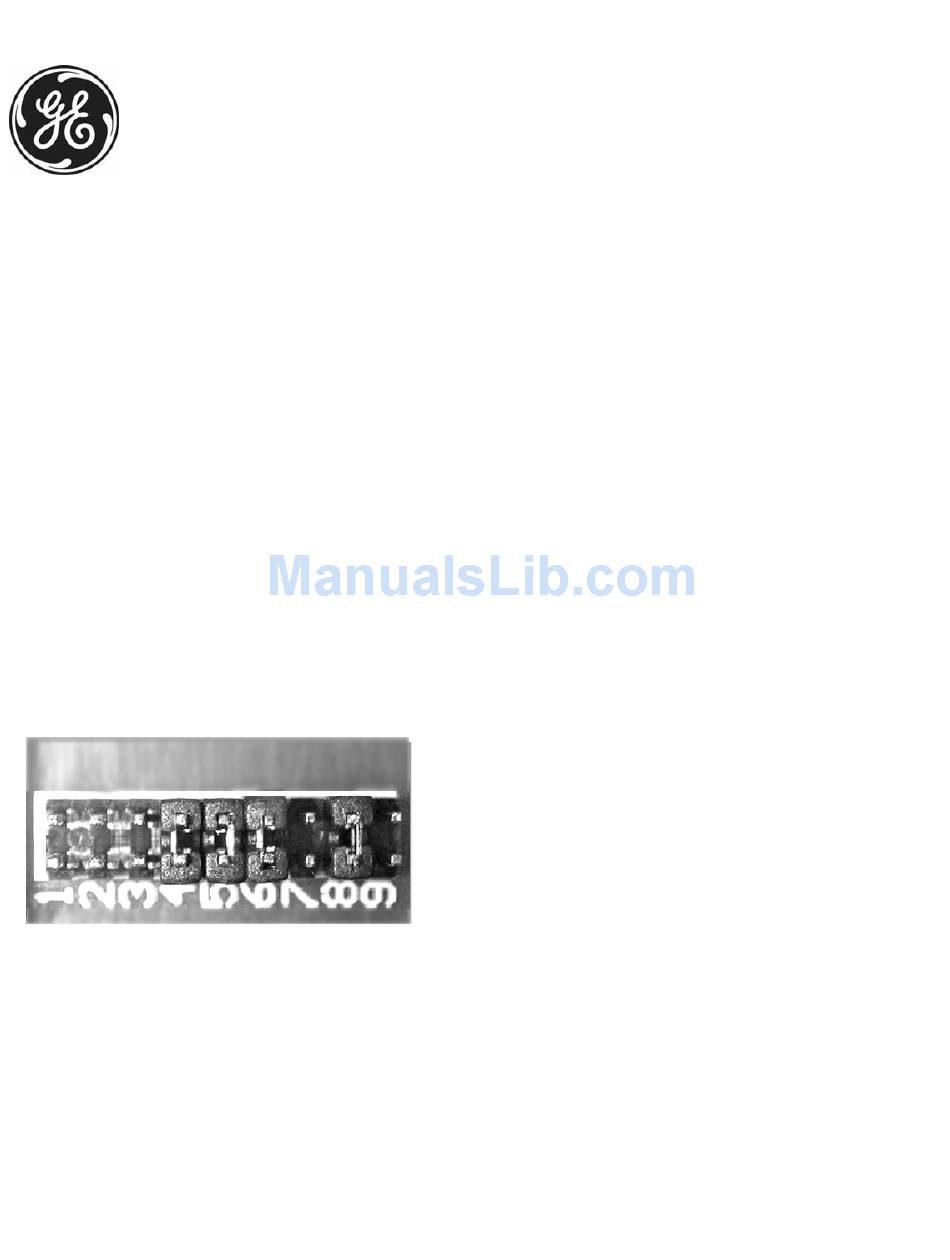

2. Locate the 9 position jumper shown below.
9 position jumper (This pushbutton is set for Ding Dong Chime since 7=off, 8=on, and
9=off.)
3. Select the desired chime sound from the table below.
Chime Sound Table
Position
Westminster
ON
Ding Dong
OFF
Knock
OFF
Bronze Chime
ON
Cuckoo Clock
ON
Foghorn
OFF
Gong
ON
7
8
9
OFF
OFF
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
ON
ON
ON
GE Model 19210/19211
www.jascoproducts.com

Advertisement

   Related Manuals for GE 19210

   Summary of Contents for GE 19210

  • Page 1

    9 position jumper (This pushbutton is set for Ding Dong Chime since 7=off, 8=on, and 9=off.) 3. Select the desired chime sound from the table below. Chime Sound Table Position Westminster Ding Dong Knock Bronze Chime Cuckoo Clock Foghorn Gong www.jascoproducts.com GE Model 19210/19211...

  • Page 2

    ON: Add a jumper to a location OFF: Remove jumper from a location. 4. Remove or add the jumpers to match the table. 5. Store unused jumpers as shown. Parking the jumper on an open set of pins. The two jumpers on the left are in the parked position.

  • Page 3

    1. Remove batteries from the pushbutton by opening the case as shown below. 2. Locate the pushbutton jumpers shown below. Push Button Jumpers 3. Jumpers 1-6 are used to select 1 of 64 possible home security codes. 4. To change the house code, add or remove jumpers as needed. After matching the existing security code, test the system for proper operation.

  • Page 4

    Replacing the back cover 1. Push buttons are typically mounted at the same height as the door knob or handle (between 36" and 44" above the floor). 2. Before mounting, choose a mounting location that is not farther than 150 feet from the chime unit location.

  • Page 5: Troubleshooting

    5. Drill two holes with 3/32” size drill in marked locations. 6. Secure back cover to the mounting surface with two supplied mounting screws. 7. Press front housing onto back cover. 8. Test operation. If the chime does not work, see TROUBLESHOOTING. Operation 1.

  • Page 6

    1. This device may not cause harmful interference, and 2. This device must accept interference received, including any interference that may cause undesired operation. For technical support contact Jasco Products Company at 1-800-654-8483 or www.jascoproducts.com Made in China is a trademark of General Electric Company and is used under license to Jasco Products Company LLC,...
