Wired Chime
Installation Instructions for
Wired Chime
Power Requirement: 16VAC @ 180mA
maximum
Included hardware:
(1) Chime
(4) Plastic screw anchors
(4) 4x25mm screws (for anchors)
Required Tools:
Wire stripper/cutter, small flat blade
screwdriver, Phillips screwdriver, drill,
and drill bit (5/32")
Removing Front Cover
The following instructions explain how to
remove the front cover of the wired
chime.
1. With the cover face down hold the
front cover while sliding the back plate
to the left.
2. Using your finger gently pry up on the
back cover plate. The back plate with
the paper product label should come
away easily.
Chime Tune Setting
The following instructions explain how to
change the tune on the wired chime.
1. Remove the chime cover and locate the
two 3 position dip switches shown below.
Front Door Dip Switch
Rear Door Dip Switch
2. Select the desired chime sound from
the table below.
Chime Sound Table
Position
1
2
Westminster
OFF
OFF
Ding Dong
OFF
ON
Knock
ON
OFF
Bronze Chime
OFF
ON
Cuckoo Clock
ON
OFF
Foghorn
ON
ON
Gong
ON
ON
ON: Switch On (up)
OFF: Switch Off (down)
WARNING: Do not exceed 16VAC
input to the chime.
Installation
1. Remove the cover from the old door
chime, disconnect the transformer and
pushbutton wires (label them for
reference). Remove the old chime.
2. Install new chime
a. Remove the front cover from the chime.
b. Pull the pushbutton and transformer wires through the slot in the base of chime.
c. Mark the 4 holes using the base as a template with the arrow pointing up.
d. If using the screw anchors, drill 4 - 5/32"holes and insert the plastic screw anchors.
Otherwise drill a 3/64" pilot hole for the screws.
e. Mount the chime base using the 4x25mm screws.
f. Attach the two wires from each pushbutton as shown in the wiring diagram. For each push
button, one wire should be connected to the "Common" screw and one wire should be
connected to the "Front" or "Rear" screw.
g. Attach the wires from the chime transformer to the "transformer connections" as shown in
the wiring diagram. (There is no polarity requirement).
h. Slide the front cover on the back plate of the chime.

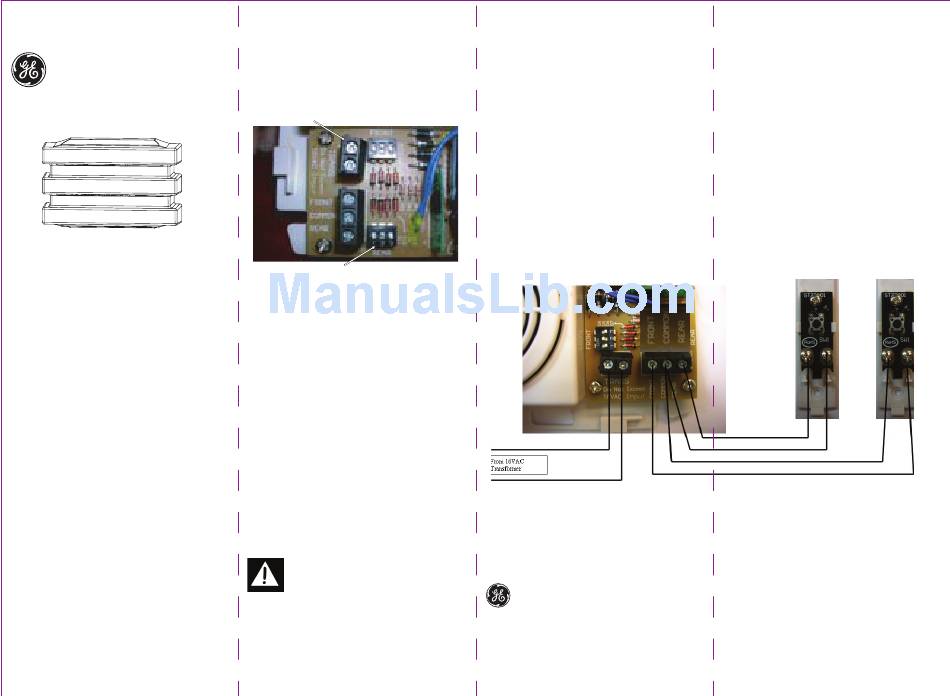

Wiring Diagram
Chime
3
ON
OFF
OFF
ON
ON
OFF
ON
For technical support contact Jasco
Products Company at 1-800-654-8483
or www.jascoproducts.com
Made in China
Hecho en China
is a trademark of General Electric Company and is used under license to
Jasco Products Company LLC, 10 E. Memorial Road, Oklahoma City, OK 73114.
www.jascoproducts.com
Rev. 08-13-08
19214-2
Rear
Front
Door
Door
Button
Button
