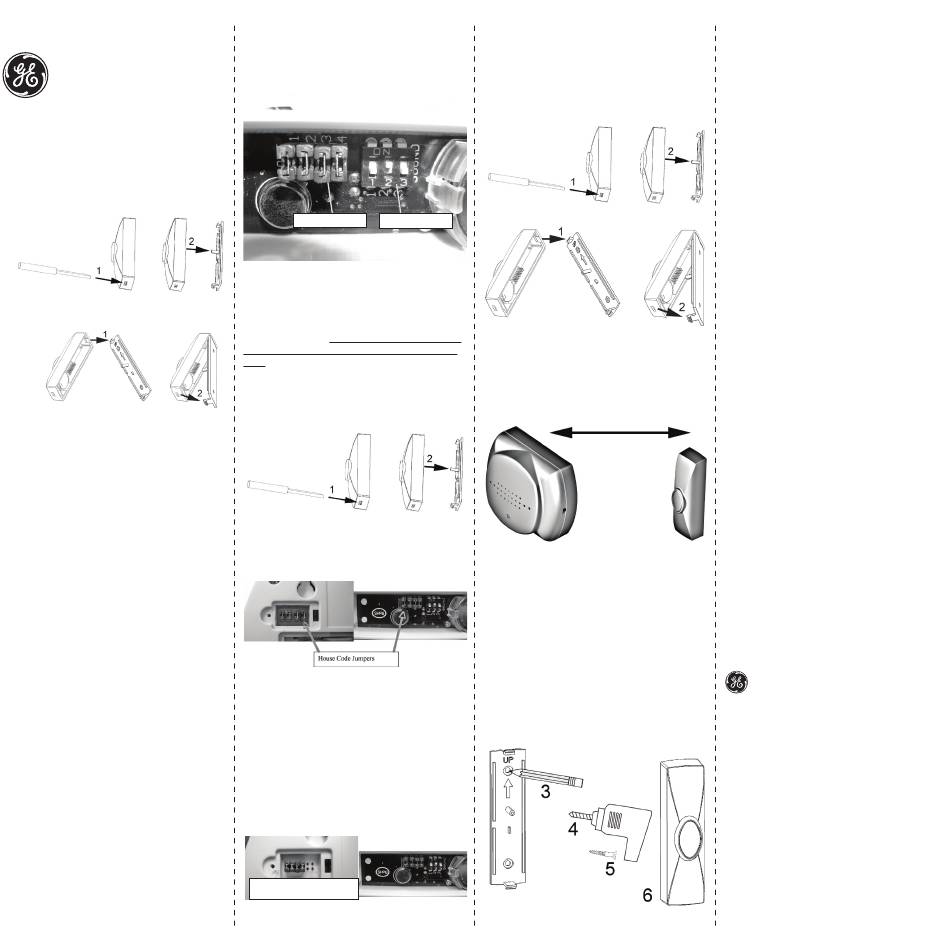

GE Model 19211
www.jascoproducts.com
Wireless Lighted
Pushbutton
Included Hardware:
(2) 3x20mm screws
(2) Double sided adhesive pads
Required Tools: Small flat blade screwdriver, drill,
1/16" drill bit, and phillips screwdriver.
Installing or Changing Batteries
1. Remove back cover.
2. Install the (included) Two CR2032
batteries in the clear plastic battery
holder located inside the push button.
3. Be sure the positive ('+') side of each battery is
facing upwards.
4. Slide each battery under the metal clip and gently
push down to secure each battery.
5. To remove the batteries gently pull back on the
plastic battery clip until the top battery pops - up.
6. Be sure to change both batteries when replacing
batteries.
Chime Tune Setting
All wireless chimes may have more than one push
button. The chime tune for each push button is set
with dip switches 1-3.
Single Push Button Kit: If you purchased a kit with
a single push button, the chime tune will be set to
Ding Dong from the factory.
Dual Push Button Kit: If you purchased a kit with
two push buttons, one push button will be set to
Ding Dong and the other push button will be set to
Westminster from the factory.
The following instructions explain how to change the
tune on any wireless push button.
1. Remove the cover from the pushbutton.
2. Remove the battery from the push button
transmitter.
3. Locate the 3 dip switches shown below.
4. Select the desired chime sound from the table
below.
Chime Sound Table
Position
1
2
Westminster
ON
OFF
Ding Dong
OFF
ON
Knock
OFF
OFF
Bronze Chime
ON
ON
Cuckoo Clock
ON
OFF
Foghorn
OFF
Gong
ON
ON: Switch On
OFF: Switch Off
House Code Jumpers
Pushbutton Dip Switches and Jumpers
Setting The House Security Code
Each chime component has 4 jumpers for setting the
house security code. In most cases you will not need
to change the factory settings for the house security
code. If your chime activates intermittently or does
not work at all, you may be able to solve the problem
by changing your security code.
1. Remove power or batteries from the chime.
2. To remove the batteries from the pushbutton, open
the pushbutton case as shown below.
3. Locate the House Security Code door and screw
located on the back of the chime. Remove the
screw and take off the door.
4. Locate the chime and pushbutton jumpers shown
below.
Chime and Pushbutton Jumpers
5. To change the house code, add or remove jumpers
as needed. It is recommended to change only
one jumper at a time and then test the system for
proper operation. The jumpers on the chime and
pushbutton must match exactly.
If you have an older chime with 6 jumper positions,
remove jumpers from the 5th and 6th positions in the
chime and match the jumpers exactly on positions 1 to
4 on the chime and pushbutton. See the picture below
3
OFF
OFF
Positions 5 and 6 open. Position
ON
1 to 4 match exactly.
OFF
ON
Older Chime with New Pushbutton
ON
ON
ON
ON
Push Button Mounting Instructions
Note: Avoid mounting on metal surfaces, as it may
result in a reduced range of transmission. Do not
mount in an area where exposed to direct rain.
a. Removing the back cover
b. Replacing the back cover
Chime Dip Switches
1. Push buttons are typically mounted at the same
height as the door knob or handle (between 36" and
44" above the floor).
2. Before mounting, choose a mounting location that
is not farther than 150 feet from the chime unit
location.
Not farther than 150 feet
Place push button where you would like to mount
and test operation with the chime as close to it's final
location as possible. If it works, mount button here. If
it does not work, see TROUBLESHOOTING.
3. Use back cover of push button as a template to
mark two screw holes.
4. Drill two holes with 1/16" drill in marked
locations.
5. Secure back cover to the mounting surface with the
3x20mm screws.
6. Press front housing onto back cover.
7. Test Operations, if chime does not work, see
TROUBLESHOOTING.
If you do not want to drill holes in your door frame,
you can use the supplied double sided tape for
installation.
1. Clean all mounting surfaces with a 50/50 mixture
of isopropyl alcohol.
2. Remove the backing from one side of the double
sided tape and press the exposed side against the
back plate of the push button.
3. Remove the other backing strip and press the
exposed side against the door frame where you
want the button installed.
Operation
1. Turn on the chime.
2. Gently press transmitter button to sound chime.
Troubleshooting
Chime doesn't work:
1. Make sure push button switch is depressed and
held for at least 1 second.
2. Make sure house code switches 1-4 on chime and
push button match exactly.
3. Verify battery orientation in push button.
4. Try fresh batteries.
5. Make sure chime is not farther than 150 feet away
from push button.
6. Ensure push button is not mounted on metal, near
metal studs, or near the floor.
7. Try a new location for the chime.
Functional range may be adversely affected by one
or more of the following factors: weather, radio
frequency interference, low transmitter battery and
obstructions between the transmitter and receiver.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following conditions:
1. This device may not cause harmful interference,
and
2. This device must accept interference received,
including any interference that may cause
undesired operation.
For technical support contact Jasco Products
Company at 1-800-654-8483
or www.jascoproducts.com
Made in China
Hecho en China
is a trademark of
General Electric Company
and is used under license to
Jasco Products Company LLC,
10 E. Memorial Road,
Oklahoma City, OK 73114.
www.jascoproducts.com
Rev 4-07
19211
