ADVANCED
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IOPac Advanced and is the answer not in the manual?

Questions and answers

Related Manuals for Reichert IOPac Advanced

Summary of Contents for Reichert IOPac Advanced

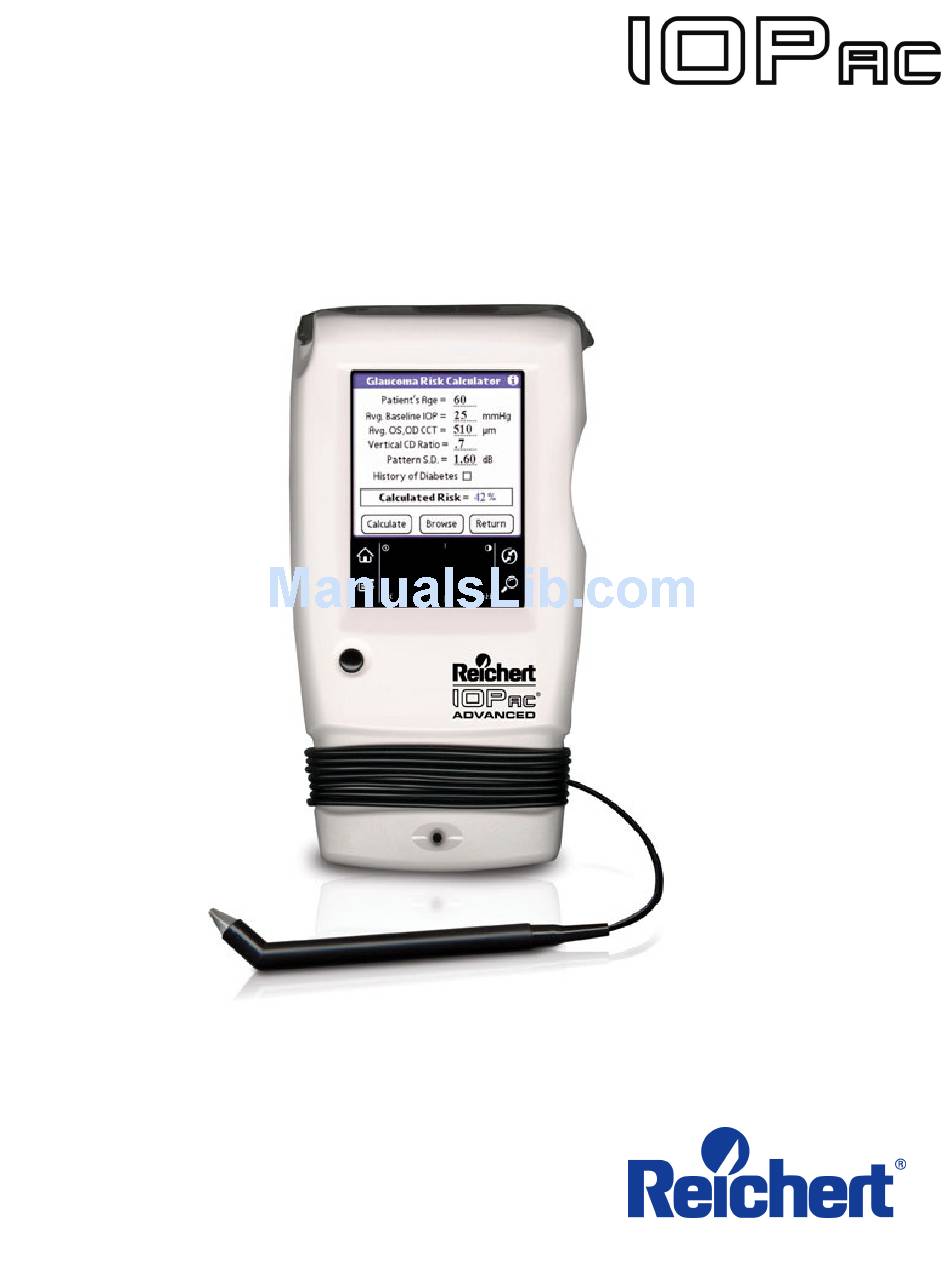

  • Page 1 ® ADVANCED User’s Guide...
  • Page 2 The information contained in this document was accurate at time of publication. Specifications subject to change without notice. Reichert, Inc. reserves the right to make changes in the product described in this manual without notice and without incorporating those changes in any products already sold.

  • Page 3: Table Of Contents

    Appendix A – Installing IOPac Support on a Windows PC (HotSync)..................... 30 Appendix B - Procedures for Retiring a Full IOPac Database......................33 Appendix C - Procedures for Reinstalling Missing IOPac Program Files..................34 End User Software License Agreement ............................. 35 Reichert Warranty....................................36 16012-101 Rev. C...

  • Page 4: Warnings & Cautions

    Only operators trained in the use of ophthalmic instruments that contact the eye should use this device. Reichert, Inc. cannot be held responsible for any damage or injury that results from a failure to follow directions in the user’s manual. Please ensure that you are entirely familiar...
  • Page 5 performed. The American Institute of Ultrasound in Medicine (AIUM) has a publication “Medical Ultrasound Safety” (1994) which has more information on this topic. CAUTION: This device has not been tested in conjunction with HF surgical (e.g. electrocautery) equipment and should not be used with such equipment.

  • Page 6: Symbols

    Symbols Explanation of Symbols Type BF Patient-applied parts are insulated. Catalog Number Serial Number Attention, See Instructions for use Date of Manufacture Waste of Electrical and Electronic Equipment Conformity with mandatory European Safety requirements 16012-101 Rev. C...

  • Page 7: Introduction

    Disclaimer and Limitation of Responsibility Reichert, Inc. assumes no responsibility for any damage, loss or claims which may result from a failure to follow the instructions contained in this Technical Manual. Reichert, Inc. assumes no responsibility for any damage or loss caused by deletion of data as result of malfunction, dead battery, or repairs.

  • Page 8: User Interface

    Introduction (Continued) User Interface The IOPac is a Palm Powered device. For documentation on the Palm interface, Graffiti text entry system and other general aspects of the Palm operating system please refer to the help file located on the Palm CD that is supplied with the IOPac.

  • Page 9: Iopac Setup

    IOPac Setup Great care has been taken to deliver your new IOPac Advanced pachymeter safely to you. The container and packaging was specially designed to transport this unit. Please retain this packaging for any future use if transportation is required.

  • Page 10: Parts Identification

    IOPac Setup (Continued) Parts Identification Parts: Charging Power Cord USB Cord Power Adapters IOPac Advanced Graffiti Labels Ultrasound Probe Stylus (attached to the Palm) Manuals and Software Disks (not shown) 16012-101 Rev. C...

  • Page 11: Instructions For Use

    Instructions for Use Turning On and Off The power button is located on the front of the IOPac. Press it once to turn the instrument ON or OFF. The IOPac has an inactivity timer set to 3 minutes after which it will shut off. Data will NOT be lost if the unit shuts off automatically. Stylus Power Button When turning on the instrument for the first time the main screen will appear.

  • Page 12: Start Measuring Central Corneal Thickness (Cct) Measurement

    Instructions for Use (Continued) Start Measuring Central Corneal Thickness (CCT) Measurement Preparation of the Patient The patient should be in a seated position. It may be helpful to explain that they should relax and attempt not to blink as the probe is going to gently contact their eye. A drop of ocular anesthetic should be placed in the eye or eyes that are going to be measured.
  • Page 13 Instructions for Use (Continued) Start Measuring Central Corneal Thickness (CCT) Measurement (Continued) Acquiring a Measurement Caution: Do Not use the ultrasound probe as a stylus. This will cause damage to the probe and void the IOPac warranty. The Measuring screen shows both the right (OD) and left (OS) eyes. The instrument will default to the right (OD) eye. You can switch the eye that you want to measure by tapping either the OD or OS box at the top of the screen.
  • Page 14 Instructions for Use (Continued) Start Measuring Central Corneal Thickness (CCT) Measurement (Continued) Calculating a Corrected IOP (Intraocular Pressure) Tap IOP at the bottom of the Measuring screen. Select the Correction Method from the pull down menu by tapping Correction Method. You can select: 2-way Lookup Table, Reference Formulas 1 to 4, or Custom Formulas 1 to 3.

  • Page 15: Risk Estimate

    Instructions for Use (Continued) Risk Estimate Calculating Glaucoma The Glaucoma Risk Calculator feature provides you with a measure of the percentage of risk that a patient might develop glaucoma within the next 5 years. The risk calculation algorithm is based on the methods proposed by Medeiros, et al. (*) using risk factors identified in the Ocular Hypertension Study (OHTS).
  • Page 16 Instructions for Use (Continued) Risk Estimate (Continued) Risk Factors Patient's age in years, entered manually in all cases Avg. Baseline IOP Average Baseline Intraocular Pressure. This value must be entered manually in all cases. Units are mmHg. Avg. OS,OD CCT Average Right Eye/Left Eye Central Corneal Thickness.

  • Page 17: View Database

    Instructions for Use (Continued) View Database To view saved entries, tap View Database on the main startup screen. You can select an examination by highlighting the examination line and tapping View, or by double tapping the examination line. Examinations are sorted by examination date –...

  • Page 18: Using The Refractive Module

    Instructions for Use (Continued) Using the Refractive Module The Refractive Module allows data from non-central areas of the cornea to be stored in an easy and intuitive way. This feature is particularly useful for refractive procedures such as Conductive Keratoplasty. Preparation of the patient Follow the same patient preparation used when taking a standard CCT measurement.

  • Page 19: System Menu Screen

    System Menu Screen The system menu screen is accessed by touching the “Reichert Pachymetry” menu at the top and left of the screen with the stylus. When the “Reichert Pachymetry” menu is selected, the following options are shown. The details of each menu selection are indicated below: •...

  • Page 20: Delete Database

    System Menu Screen (Continued) Delete Database Tapping Delete Database will erase the entire database from memory, and delete all examination data. Do not perform this action if the Pachymeter’s database has not been archived by hotsyncing, unless the data is no longer needed. You may delete individual entries by entering the View Database page.

  • Page 21: About Pachymeter

    System Menu Screen (Continued) IOP Reference List This screen displays the IOP Formula References screen and lists the journal articles from which the reference equations for the above pre-programmed formulas are taken. About Pachymeter This screen shows the software and firmware versions, and the device serial number. HotSync the IOPac Archive Database The database will be backed up onto a PC during each HotSync (as described in the Palm operating manual on the...

  • Page 22: Printer Data

    Printer Data Printing the Examination Information Select an examination file by tapping on the examination name and make sure the printer is powered on. Point the Pachymeter infrared (IR) port towards the printer’s IR port and then tap Print. The Pachymeter’s IR port has a dispersion angle of about 90 degrees side to side and must be pointing at and within about 3 feet (1m) of the printer’s IR port.

  • Page 23: Printing The Examination Information (Continued)

    Printer Data (Continued) Printing the Examination Information (Continued) Sample Refractive Examination Print-out 16012-101 Rev. C...

  • Page 24: Cleaning

    Cleaning External Cleaning WARNING: DO NOT IMMERSE THE connector OR THE main unit in ANY liquid OR DAMAGE TO THE UNIT WILL OCCUR. Clean the external surfaces of this instrument using a clean, soft cloth moistened with a mild detergent solution (1 cc of liquid dish soap to one liter of clean, filtered water (filtered below 5 microns)).

  • Page 25: Troubleshooting

    Troubleshooting Frequently Asked Questions Q: The unit will not power up. A: Always ensure the IOPac is charged sufficiently. USE ONLY THE SUPPLIED PALM CHARGER PROVIDED WITH THE UNIT, or a USB CABLE (such as the one supplied with the IOPac) CONNECTED TO A COMPUTER. We recommend a minimum charge level of 50%.
  • Page 26 Troubleshooting (Continued) Frequently Asked Questions (Continued) Q: The calibration guide hole is dirty, how should I clean it? A: Using a Q-tip or similar soft tipped device dipped in alcohol gently swab the hole. Ensure that the flat calibration surface at the bottom of the hole is clean. Be sure not to exert excess force onto the phantom while cleaning. Q: Why does the unit display a reading when not in contact with the patient's eye? A: If the tip of the probe is wet, the unit will measure the thickness of the drop of water on the tip.

  • Page 27: General Specifications

    General Specifications The IOPac displays thickness measurements to the nearest 1 µ m, and the expected accuracy of readings is ±5 µm over the measurement range of 300 to 1000 µ m. This assumes that the actual speed of sound in the cornea corresponds with that used in the measurements.

  • Page 28: Acoustic Output Powers

    General Specifications (Continued) Acoustic Output Powers Acoustic Output SPTA.3 SPPA.3 (mW/cm (W/cm Global Maximum Value 0.155±0.014 3.72±0.98 12.2±2.0 (MPa) 0.70±0.07 (mW) 0.040±0.010 0.040±0.010 (MHz) 20.2±1.4 20.2±1.4 20.2±1.4 Associated (cm) Acoustic Parameters Beam Dimensions 0.11 0.11 (cm) 0.11 0.11 PD (ms) 0.07 0.07 PRF (Hz)

  • Page 29: Tissue Exposure To Ultrasound Energy

    General Specifications (Continued) Tissue Exposure To Ultrasound Energy The ultrasound energy emitted by the IOPac is of low intensity and will have no adverse effects on the patient and/or operator. However, the operator is still cautioned to perform examinations using the principle of ALARA (As Low As Reasonably Achievable).

  • Page 30: Appendix A - Installing Iopac Support On A Windows Pc (Hotsync)

    Appendix A – Installing IOPac Support on a Windows PC (HotSync) It is good practice to backup or “synchronize” files from the Pachymeter’s memory to a PC to prevent loss of data due to accidental deletion or unforeseen failures. To do this requires a PC with a Palm HotSync service. This includes a HotSync Manager, an Install Tool and an IOPac support folder to hold backup files uploaded from the Pachymeter.
  • Page 31 The Install Wizard encourages the user to perform a first time HotSync operation after the software has been installed on the PC. New IOPac users should go through this exercise as a way of both verifying the User Name they entered and checking that the USB connection between the IOPac and the desktop computer is functioning correctly.
  • Page 32 You should also select Skip on the following screen, as there is no additional software needed or recommended, and then select Quit to exit the installation program. 16012-101 Rev. C...

  • Page 33: Appendix B - Procedures For Retiring A Full Iopac Database

    Appendix B - Procedures for Retiring a Full IOPac Database The IOPac Pachymeter examinations database, called P20Dbase.pdb, is designed to hold about 1000 examinations in memory. Given that there is more than 8 MB of memory available, database capacity is probably somewhat higher but it is difficult to estimate given the fact that other applications may also grow as the examinations database does.

  • Page 34: Appendix C - Procedures For Reinstalling Missing Iopac Program Files

    Appendix C - Procedures for Reinstalling Missing IOPac Program Files IOPac Pachymeters come from the factory with all necessary pachymetry software pre-installed on the device. IOPac owners usually consider re-installing the software files on the Pachymeter for one of two reasons: To update to a newer IOPac version To recover files lost due to accidental deletion The IOPac comes from the factory with all necessary pachymetry software pre-installed in memory.

  • Page 35: End User Software License Agreement

    Reader software, Palm Inc. software or any other applications software licensed to you by third parties that is included on the same media as Reichert, Inc. Software (“Other Software”) if the Other Software provides that the use of the Other Software is subject to the terms and conditions of the third party’s license agreement.

  • Page 36: Reichert Warranty

    Nor shall this warranty be extended to a product installed or operated in a manner not in accordance with the applicable Reichert instruction manual, nor to a product which has been sold, serviced, installed or repaired other than by a Reichert factory, Technical Service Center, or authorized Reichert Dealer.
  • Page 37 Notes 16012-101 Rev. C...
  • Page 38 Reichert, Inc. 3362 Walden Ave Depew, NY 14043 Toll Free 888-849-8955 Phone: 716-686-4500 Fax: 716-686-4545 email: info@reichert.com www.reichert.com Reichert GmbH Hubertstrasse 2 D-82229 Seefeld Germany Tel: +49 8152 993530 Fax: +49 8152 993535 ISO-9001/13485 Registered May 2009 16012-101 Rev. C...
