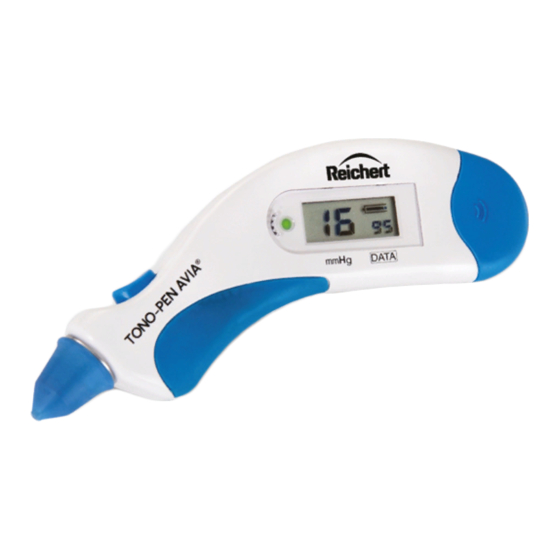

Reichert TONO-PEN AVIA Quick Reference Manual

TOnO-Pen AVIA
Proper set up of the Ocu-Film
The application procedure below should be followed. A new Ocu-Film tip cover must be used for each new patient.
To initiate an IOP measurement, press and release the operating
button once; you will see a brief display of [
LCD. If any segments are not filled, please contact Reichert Technical
Service at 888-849-8955.
When the TOnO-Pen AVIA tonometer is ready to measure, the LCD
will display a double row of dashes, [
the device will beep.
Tap the sensor very lightly and briefly on the corneal surface. The
TOnO-Pen AVIA tonometer will chirp with each applanation, and
the DATA field on the LCD will increment for each valid IOP reading
obtained.
Note: If upon pressing the operating button, the LCD display shows
[dn], the TOnO-Pen AVIA tonometer will need to successfully pass
verification before a measurement can be obtained. See reverse side
®
Applanation Tonometer
Quick Reference Guide
tip cover is essential for the precision and accuracy of the tonometry measurement.
®
Position the Ocu-Film
applicator on the transducer.
Roll the Ocu-Film tip cover
onto the Tono-Pen tip and
remove applicator.
88
888 ] as a self-test of the
= = =
] the green LeD will light, and
Correct
Too
Taut
Be certain that the film is flat across the tip, but not too taut or too loose.
for verification instructions.
When another beep tone is heard, indicating 10 applanations have
been read, the LeD will turn off, and the averaged IOP measurement
will appear on the LCD above "mmHg". The statistical confidence
indicator will appear on the LCD above "DATA".
statistical confidence indicator, the more reliable the measurement.
If at least 6 but less than 10 applanations were obtained, the IOP will
be displayed after a 4 second delay, along with the statistical confidence
indicator. If 15 seconds elapse prior to applanation being initiated,
the TOnO-Pen AVIA tonometer will initate the sleep mode, indicated
initially by the display of a single row of dashes [
blank display. The applanation mode may be initiated by pressing the
operating button.
Too
Loose
The higher the
- - -
], followed by a
980051 Rev D 08/11
