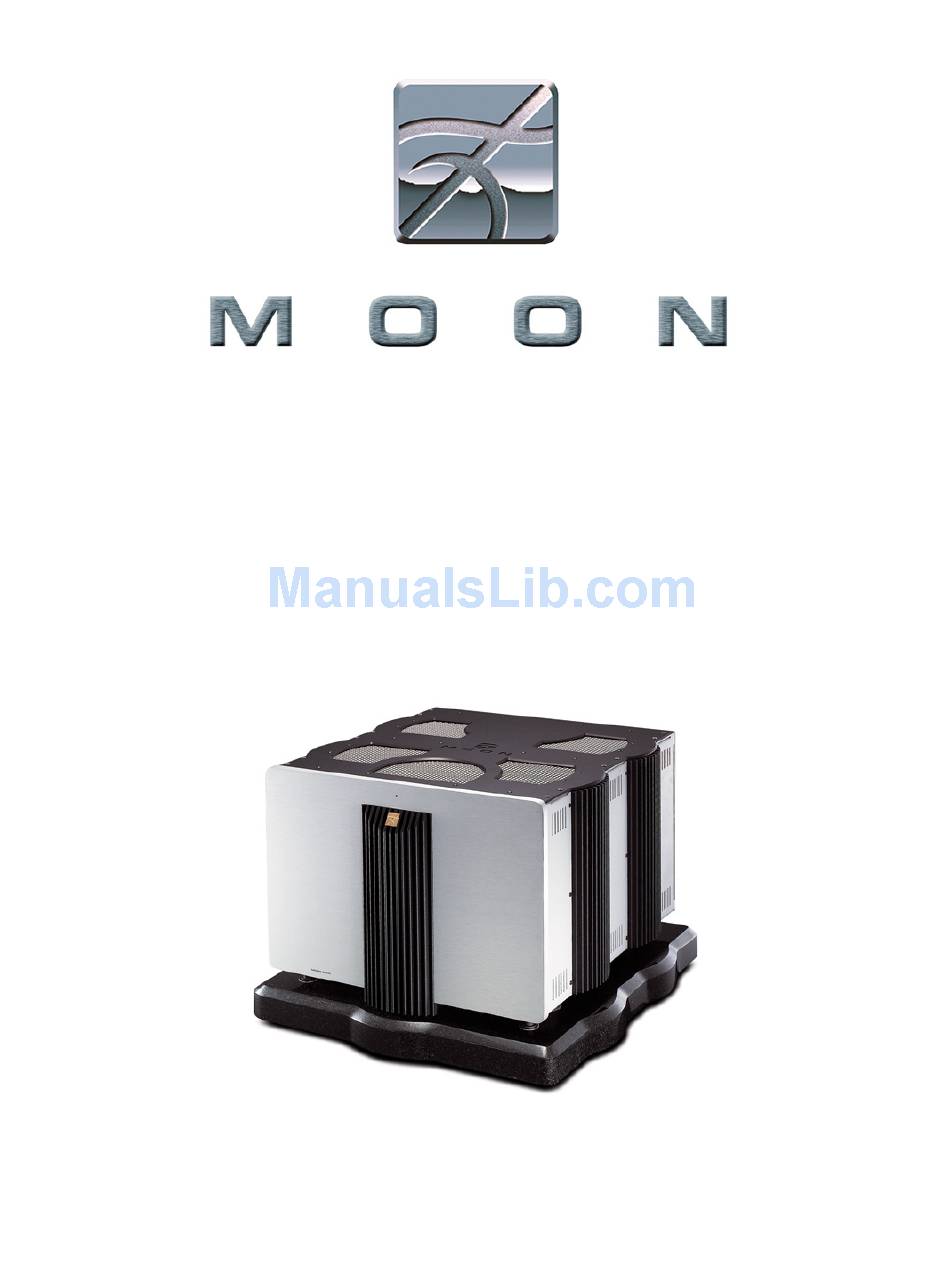

- Page 1 ROCK Mono Power Amplifier ___________________________________________________________________________ Owner’s Manual...
-
Page 2: Table Of Contents
MOON ROCK Mono Power Amplifier Table of Contents Congratulations ..........3 Unpacking............3 Introduction ............. 4 Installation & Placement ........4 Rear Panel Layout ..........5 Connecting the ROCK ........6 Balanced Operation ........... 6 Operating the ROCK .......... 7 Specifications .......... -
Page 3: Congratulations
Before setting up your new MOON ROCK, we encourage you to please read this manual thoroughly to properly acquaint yourself with its features. We hope you enjoy listening to the MOON ROCK Mono Power Amplifier as much as the pride we have taken in creating this fine audio product. -
Page 4: Introduction
20A circuit for this amplifier, you will be able to take full advantage of the power potential of the MOON ROCK Mono Power Amplifier. If the AC voltage in your home is 220V or 240V, you will not have to worry about the previously described current limitations. -
Page 5: Rear Panel Layout
“AC” 20 ampere IEC receptacle for the power cord. To the left of the “on/off” push-button is a “12V trigger” input on a 1/8” mini-jack. This allows for the MOON ROCK to be turned “on” or “off” using a hard wired remote connected to this input. -
Page 6: Connecting The Rock
+5 Volts, the other will be carrying a signal of –5 Volts. When these two inverted signals on a balanced line are input into a differential power amplifier such as the MOON ROCK, any noise picked up by the interconnect will be eliminated since a differential circuit amplifies only the difference between these two signals: Noise on a balanced interconnect will be equal on both conductors and therefore not be processed. -
Page 7: Operating The Rock
Operating the ROCK We recommend that you leave your MOON ROCK Mono Power Amplifier powered up at all times to maintain optimal performance. In the event that you plan to be away from your home for a few days, powering off the amplifier may not be a bad idea. -
Page 8: Specifications
MOON ROCK Mono Power Amplifier Specifications Configuration ............Mono Power Supply Transformers ........2 x 1.1kVA Power Supply Capacitance ........282,000µF Class Of Operation ..........A/AB Design ..............Fully Balanced Differential Input Impedance – Single-ended ......24,900Ω Input Impedance – Balanced ........50,900Ω...
