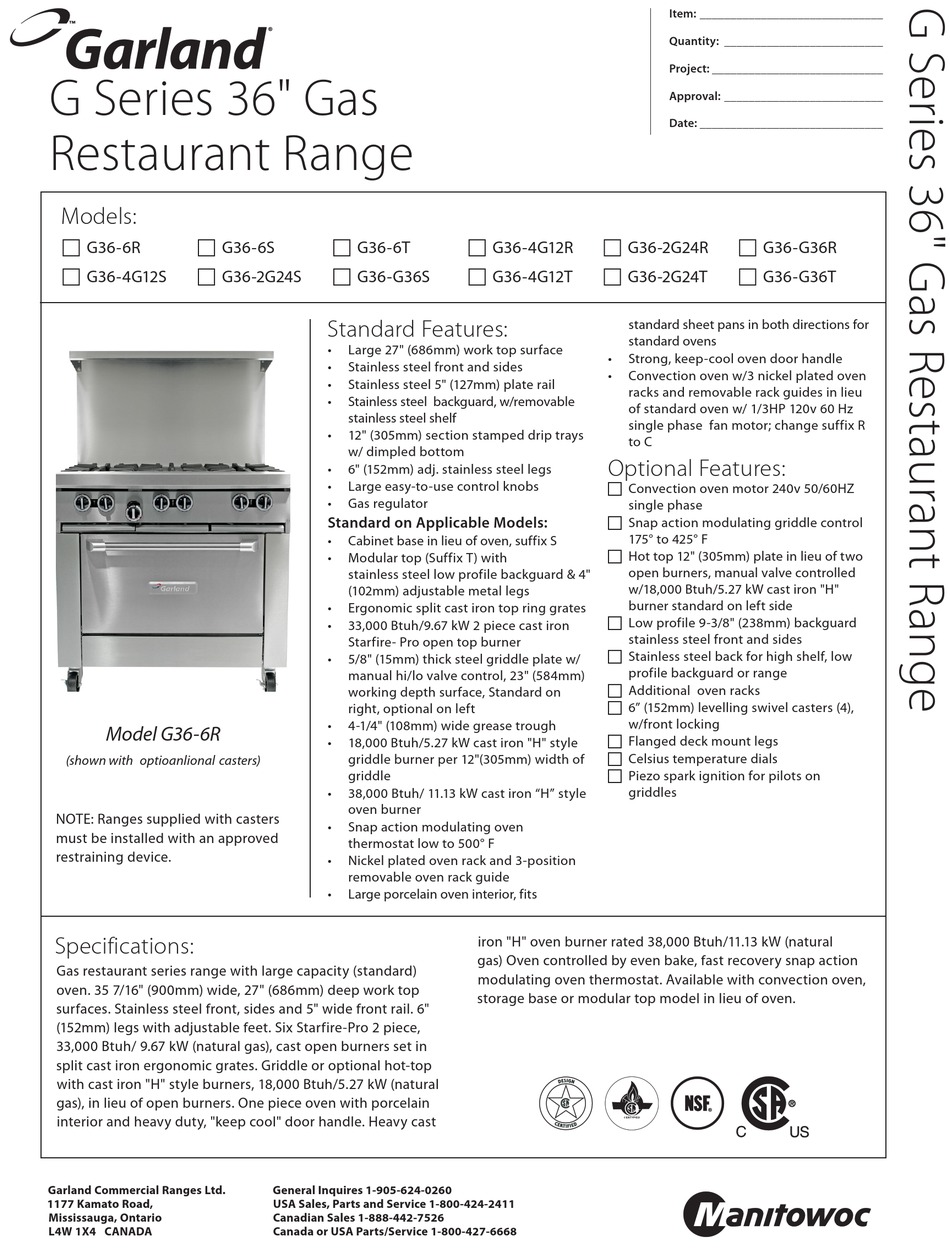

G series 36" gas restaurant range

Advertisement

Quick Links

G Series 36" Gas
Restaurant Range

Models:

 G36-6R
 G36-6S
 G36-4G12S
 G36-2G24S
Model G36-6R
(shown with optioanlional casters)
NOTE: Ranges supplied with casters
must be installed with an approved
restraining device.

Specifications:

Gas restaurant series range with large capacity (standard)
oven. 35 7/16" (900mm) wide, 27" (686mm) deep work top
surfaces. Stainless steel front, sides and 5" wide front rail. 6"
(152mm) legs with adjustable feet. Six Starfire-Pro 2 piece,
33,000 Btuh/ 9.67 kW (natural gas), cast open burners set in
split cast iron ergonomic grates. Griddle or optional hot-top
with cast iron "H" style burners, 18,000 Btuh/5.27 kW (natural
gas), in lieu of open burners. One piece oven with porcelain
interior and heavy duty, "keep cool" door handle. Heavy cast
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 G36-6T
 G36-G36S

Standard Features:

• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 5" (127mm) plate rail
• Stainless steel backguard, w/removable
stainless steel shelf
• 12" (305mm) section stamped drip trays
w/ dimpled bottom
• 6" (152mm) adj. stainless steel legs
• Large easy-to-use control knobs
• Gas regulator
Standard on Applicable Models:
• Cabinet base in lieu of oven, suffix S
• Modular top (Suffix T) with
stainless steel low profile backguard & 4"
(102mm) adjustable metal legs
• Ergonomic split cast iron top ring grates
• 33,000 Btuh/9.67 kW 2 piece cast iron
Starfire- Pro open top burner
• 5/8" (15mm) thick steel griddle plate w/
manual hi/lo valve control, 23" (584mm)
working depth surface, Standard on
right, optional on left
• 4-1/4" (108mm) wide grease trough
• 18,000 Btuh/5.27 kW cast iron "H" style
griddle burner per 12"(305mm) width of
griddle
• 38,000 Btuh/ 11.13 kW cast iron "H" style
oven burner
• Snap action modulating oven
thermostat low to 500° F
• Nickel plated oven rack and 3-position
removable oven rack guide
• Large porcelain oven interior, fits
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
 G36-4G12R
 G36-2G24R
 G36-4G12T
 G36-2G24T
standard sheet pans in both directions for
standard ovens
• Strong, keep-cool oven door handle
• Convection oven w/3 nickel plated oven
racks and removable rack guides in lieu
of standard oven w/ 1/3HP 120v 60 Hz
single phase fan motor; change suffix R
to C

Optional Features:

 Convection oven motor 240v 50/60HZ
single phase
 Snap action modulating griddle control
175° to 425° F
 Hot top 12" (305mm) plate in lieu of two
open burners, manual valve controlled
w/18,000 Btuh/5.27 kW cast iron "H"
burner standard on left side
 Low profile 9-3/8" (238mm) backguard
stainless steel front and sides
 Stainless steel back for high shelf, low
profile backguard or range
 Additional oven racks
 6" (152mm) levelling swivel casters (4),
w/front locking
 Flanged deck mount legs
 Celsius temperature dials
 Piezo spark ignition for pilots on
griddles
iron "H" oven burner rated 38,000 Btuh/11.13 kW (natural
gas) Oven controlled by even bake, fast recovery snap action
modulating oven thermostat. Available with convection oven,
storage base or modular top model in lieu of oven.
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
 G36-G36R
 G36-G36T
