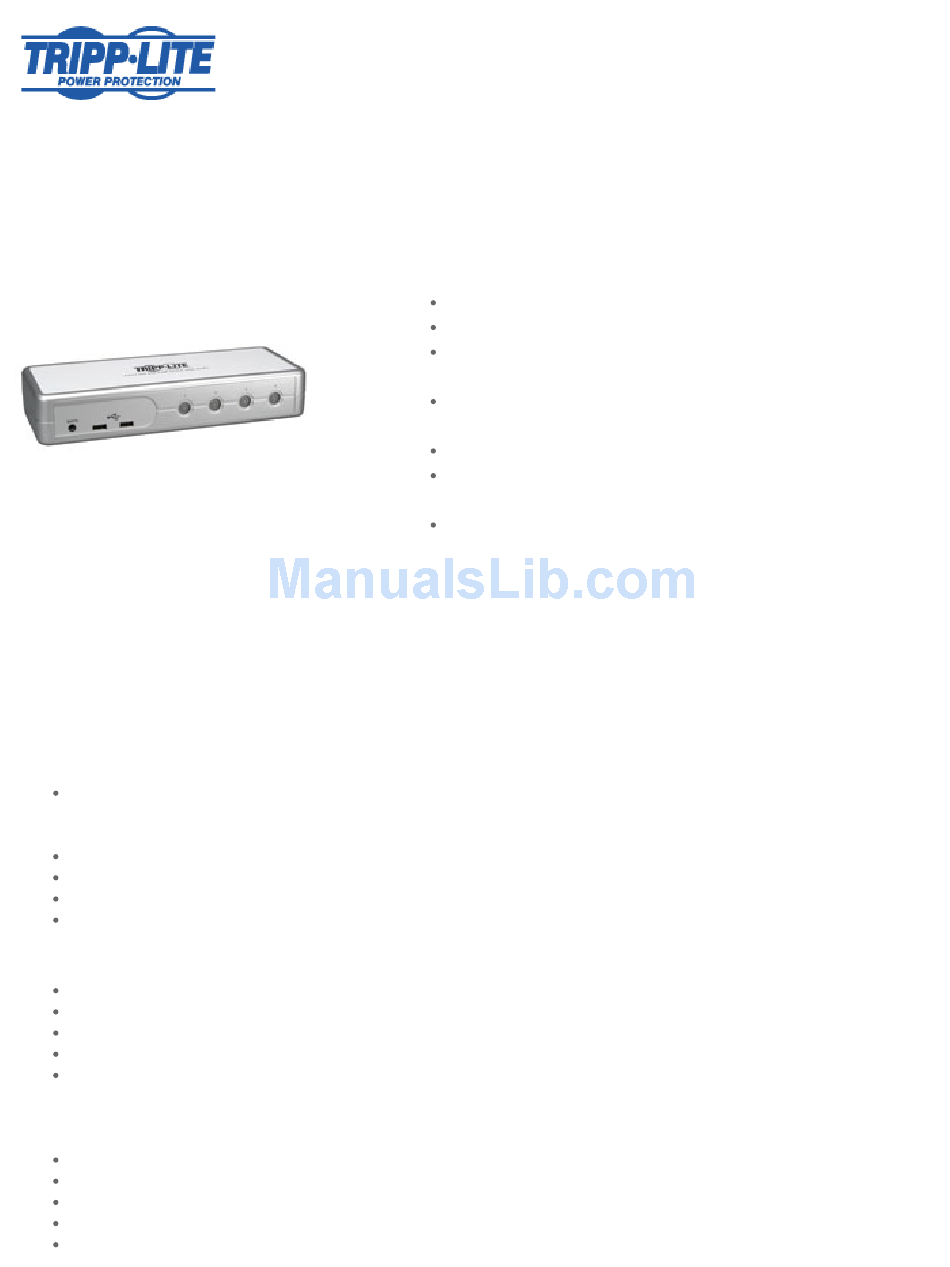

Tripp Lite B004-DUA4-K-R Quick Manual

Model #: B004-DUA4-K-R
KVM Switch - 4-Port DVI/USB KVM Switch w/Audio and Cables

Description

The B004-DUA4-K-R is a 4-Port DVI/USB KVM Switch with audio and USB 2.0 peripheral sharing. It allows you to access, control, boot and reboot
four computers from a single USB keyboard, USB mouse, and monitor. Switching between connected computers is quick and simple using keyboard
hotkeys or pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can
be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the
same time.
The B004-DUA4-K-R uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A
DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. Whichever you use, full time DDC support
provides the necessary EDID information required for optimal video performance on Windows 7 and other operating systems. Compatible with all
major operating systems.

Applications

Use this KVM switch when accessing four multimedia computers from a single USB keyboard, USB mouse, and monitor.

System Requirements

KVM Console: A DVI monitor, USB keyboard, and USB mouse
Computers: DVI-I port
Audio (Optional): A microphone and speakers with 3.5mm Mini-Stereo connectors and a computer with 3.5mm Mini-Stereo ports
Compatible with all major operating systems

Package Includes

B004-DUA4-K-R
(x4) 6 ft. DVI-I + 3.5mm Audio Cable kits
(x4) 6 ft. USB A-B device cables
Owner's Manual
External Power Supply (Input: 100-240V, 50/60Hz, 0.4A Output: 5V, 2A)

Features

Fast, easy switching via keyboard hotkeys or pushbuttons
Plug-and-play setup - no software required
Hot-swap capability allows easy addition or removal of computers without powering down the switch or other computers
Speaker and microphone connections allow for the sharing of audio components between systems
Supports 2-Channel Stereo Audio
Independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a
(P118-000 DVI-I to DVI-D Adapter is required for computers with DVI-D ports), and USB Port

Highlights

Control 4 computers with a single DVI monitor, USB keyboard and USB mouse
Switch ports via keyboard hotkeys or pushbuttons
Allows for the sharing of audio components between systems; listen to music
from one computer while accessing another
Features two USB 2.0 ports for the sharing of USB peripherals (e.g. flash
drives, printers, etc.) between the connected computers
(x4) 6ft USB cables and (x4) 6ft DVI + Audio KVM cable kits included
Full time DDC support provides the necessary EDID information for optimal
video performance on Windows 7 and other operating systems
Compatible with all major operating systems
