Front Panel Layout

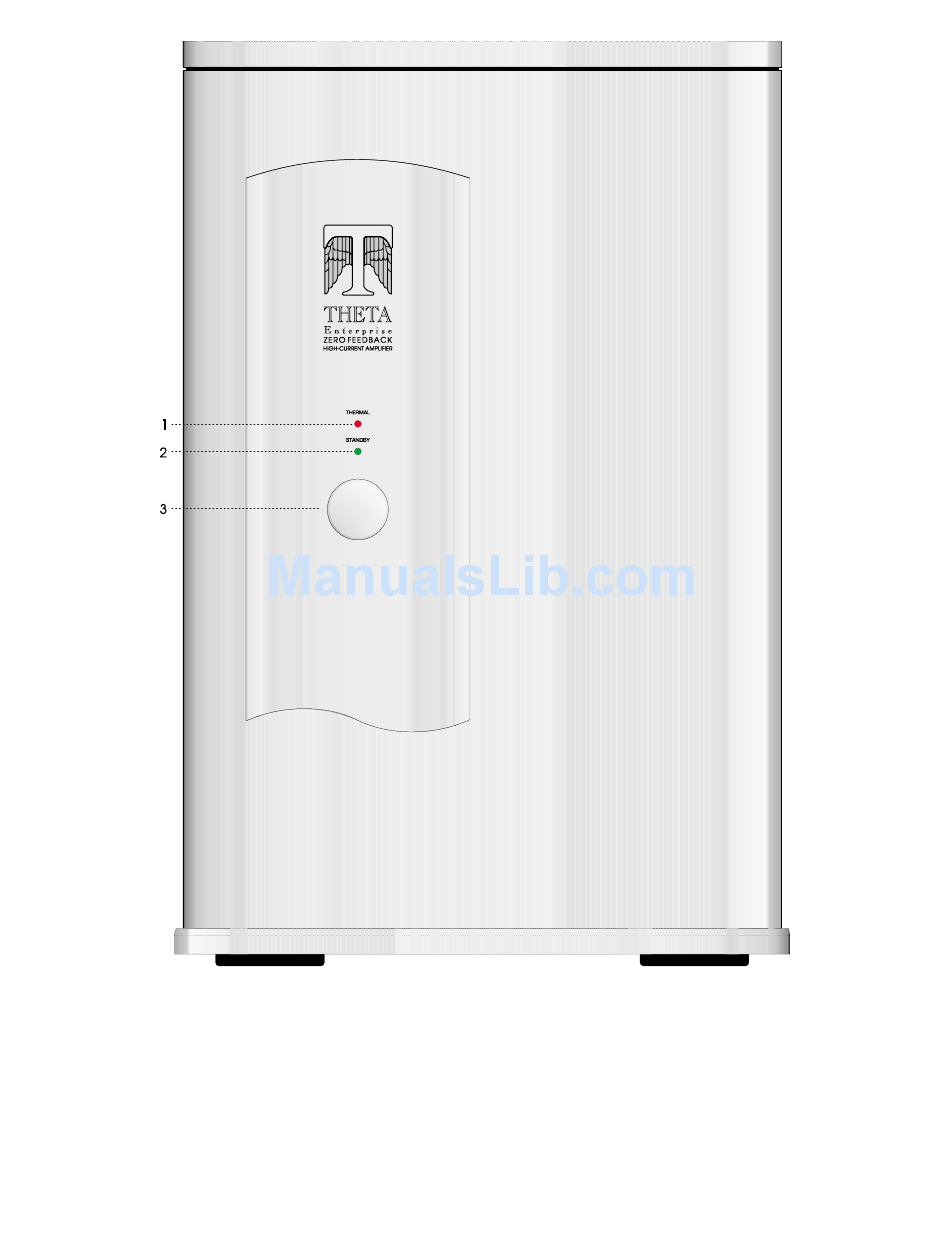

Figure 2 - Front Panel Layout of a RIGHT Enterprise
1. THERMAL LED. Illuminates when the Enterprise's amplifier module temperature rises above the maximum
operating temperature and puts the Enterprise into standby.
2. STANDBY LED. Illuminates red when the power amplifier is in STANDBY, green when the amplifier is active.
3. STANDBY button. After the rear panel MAIN POWER switch is turned on press the front panel Theta logo button to
exit the standby mode. The Enterprise will come out of standby.
4
