Front Panel Layout

1. STANDBY button. After the left-hand (when viewed from the front of the amplifier) rear-panel POWER
switch is turned on, press the front panel STANDBY button to exit the standby mode. The channels in the
two left most slots (when viewed from the front of the amplifier) will come out of standby. The channels in
the two right-hand slots (when viewed from the front of the amplifier) are controlled by the right-hand
rear-panel POWER switch. If both rear-panel POWER switches are turned on, the STANDBY button will
control all 4 rear-panel amplifier slots.
2. STANDBY LED. Illuminates RED when the amplifier enters the Standby mode. Illuminates GREEN when the
amplifier is in the turn-on sequence. Illuminates BLUE when the amplifier is ready for normal operation.
3. PROTECT LED. Illuminates if the unit enters the protection mode. This can be caused by a short circuit in
any of the channels or by an over-temperature operating condition.

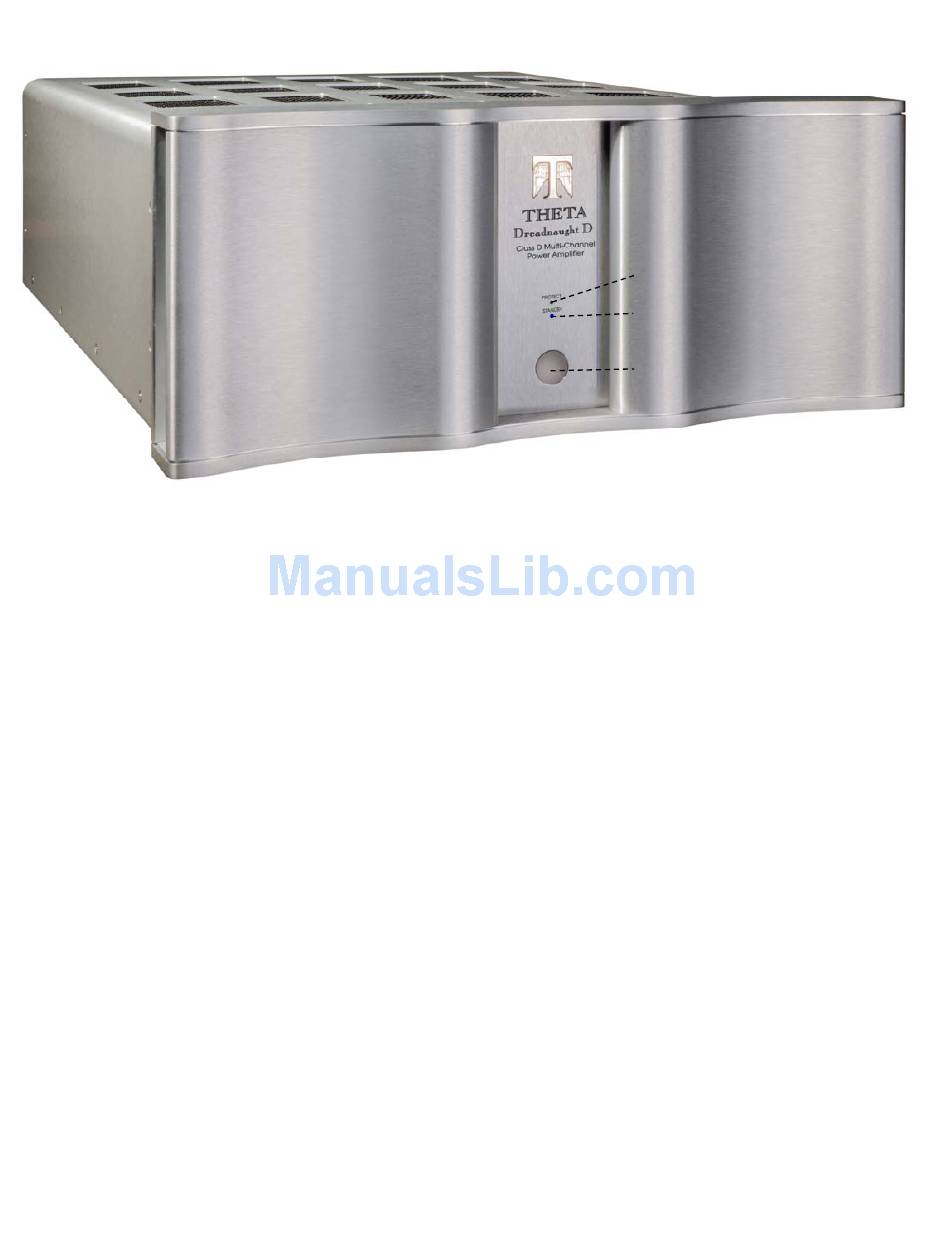

Figure 1a - Front Panel Layout
3
3
2
1
