Summary of Contents for NETGEAR ProSAFE FS526Tv2

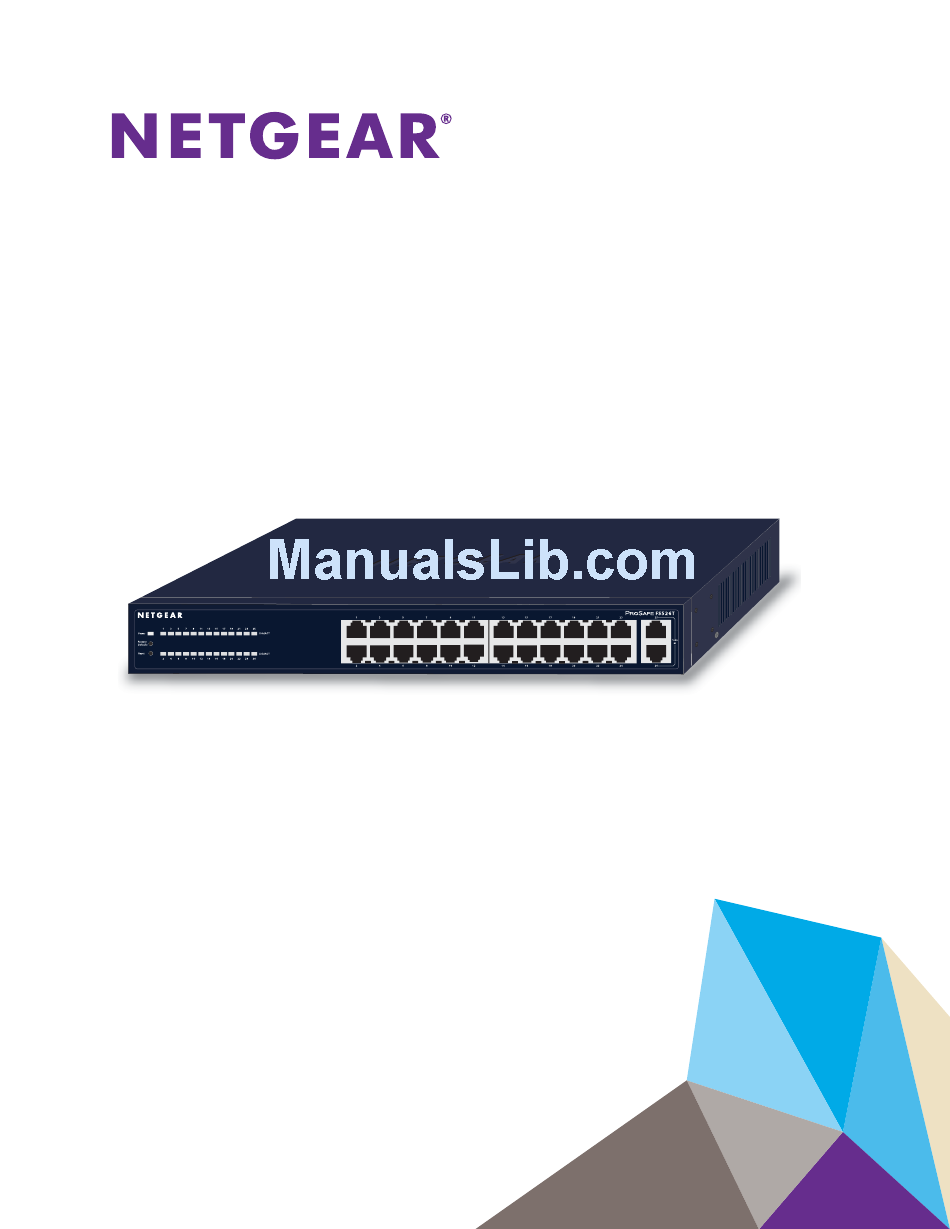

- Page 1 ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Ha rd wa re Installation Gui de July 2013 202-11251-02 350 East Plumeria Drive San Jose, CA 95134...
- Page 2 Trademarks NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.
-
Page 3: Table Of Contents
Contents Chapter 1 Introduction and Hardware Description Overview........... . 5 Switch Features . -
Page 4: Chapter 1 Introduction And Hardware Description
Introduction and Hardware Description The NETGEAR® ProSAFE® 26-Port Fast Ethernet Smart Switch FS526Tv2 is a state-of-the-art, high-performance, IEEE-compliant network solution. To simplify installation, the switch is shipped ready for use out of the box. The chapter covers the following topics: •... -
Page 5: Overview
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Overview This hardware installation guide is for the NETGEAR ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2. The switch provides twenty-four 10/100BASE-T ports and two 10/100/1000BASE-T ports. You can make high-speed connections using the two Gigabit Ethernet ports. For example: •... -
Page 6: Switch Features
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Figure 1. Example of a network configuration Switch Features The following list identifies the key features of the switch: • Twenty-four RJ-45 10/100 Mbps Fast Ethernet switching ports. • Two RJ-45 10/100/1000 Mbps Gigabit Ethernet switch ports. -
Page 7: Package Contents
Package Contents The following figure shows the package contents of the switch. Figure 2. Package contents Verify that the package contains the following: • NETGEAR ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 • Rubber footpads for tabletop installation • Power cord •... -
Page 8: Front Panel
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the product for repair. Front Panel The switch provides twenty-four 10/100BASE-T ports and two Gigabit Ethernet ports. -
Page 9: Leds
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 LEDs The following table describes the LEDs. Table 1. LED descriptions Port Designation (Not applicable, system Power • Off. Power is disconnected. LED) • Solid green. Power is supplied to the switch and the switch is operating normally. -
Page 10: Rj-45 Ports
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 RJ-45 Ports RJ-45 ports are autosensing and autonegotiating ports. When you insert a cable into an RJ-45 port, the switch automatically ascertains the maximum speed (10, 100, or 1000 Mbps) and duplex mode (half- or full-duplex) of the attached device. All ports support a twisted-pair cable that is terminated with an 8-pin RJ-45 plug. -
Page 11: Chapter 2 Installation
Installation This chapter describes how to install the switch, which involves the steps that are described in the following sections: • Step 1: Prepare the Site • Step 2: Install the Switch • Step 3: Check the Installation • Step 4: Connect Devices to the Switch •... -
Page 12: Step 1: Prepare The Site
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Step 1: Prepare the Site Before you install the switch, ensure that the operating environment meets the requirements in that are described the following table. Table 2. Site requirements Characteristics Requirements Mounting •... -
Page 13: Install The Switch In A Rack
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Install the Switch in a Rack To install the switch in a rack, you need the 19-inch rack-mount kit that is supplied with switch. Note: To prevent the rack from overbalancing and toppling over, install devices from the bottom of the rack to the top. -
Page 14: Step 3: Check The Installation
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Step 3: Check the Installation Before you apply power to the switch, do the following: • Inspect the equipment thoroughly. • Verify that all cables are installed correctly. • Check cable routing to make sure that cables are not damaged or creating a safety hazard. -
Page 15: Step 5: Apply Ac Power
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Step 5: Apply AC Power The switch does not have an On/Off switch. You apply AC power to the switch by connecting the power cord, and you remove AC power from the switch by disconnecting the power cord. -
Page 16: Chapter 3 Troubleshooting
Troubleshooting This chapter describes how you can troubleshoot the switch. The chapter covers the following topics: • Troubleshooting Chart • Troubleshooting Suggestions... -
Page 17: Troubleshooting Chart
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Troubleshooting Chart The following table lists symptoms, causes, and solutions of possible problems. Table 3. Troubleshooting chart Symptom Cause Solution Power LED is off. No power is received. • Check the power cord connections for the switch at the switch and the connected device. -
Page 18: Configuration
ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Configuration If problems occur after you alter the network configuration, restore the original connections and determine the problem by implementing the new changes, one step at a time. Ensure that cable distances, repeater limits, and other physical aspects of the installation do not exceed the Ethernet limitations. -
Page 19: Appendix A Physical And Technical Specifications
Physical and Technical Specifications This appendix provides the physical and technical specifications for the switch. Table 4. Physical and technical specifications Feature Description Network protocols and • IEEE 802.3i 10BASE-T supported standards • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T •... - Page 20 ProSAFE 26-Port Fast Ethernet Smart Switch FS526Tv2 Table 4. Physical and technical specifications (continued) Feature Description Environment • Operating temperature. 0 to 50°C (32 to 122°F) • Storage temperature. –20 to 70°C (28 to 158°F) • Operating humidity. 10–90% maximum relative humidity, noncondensing •...
