Infrant Technologies ReadyNAS 1100 Getting Started Manual page 2

1
Unpack and Check the Contents
2

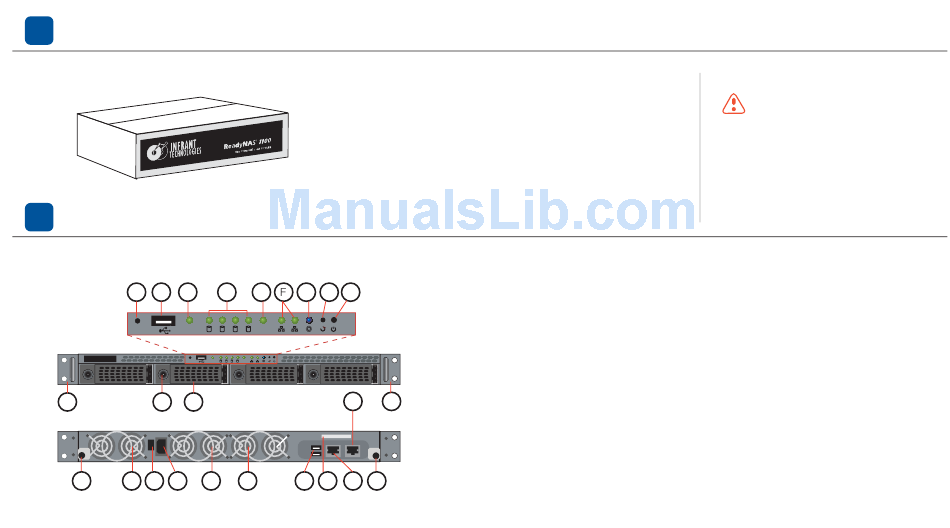

About ReadyNAS 1100
A B C
USB
Backup
1
ReadyNAS
Backup USB
J K L
M N O P N
D E G H I
Act
2 3 4
Act
S
J
N B Q R M
Package Contents:
(1) ReadyNAS 1100
(4) Hard Disk Trays
(1) Getting Started Guide
(1) Warranty Card
(1) Power Cable
(1) Ethernet Cable
(1) ReadyNAS Installation CD
(16) Screws for Hard Disk Installation*
A - Programmable Backup Button
B - USB Port
C - USB (1) activity LED
D - Disk LEDs. Lights up green for disk online
E - Activity LED. Blinking for disk access activities
F - Ethernet (1) and (2) activity LED
G - Power LED
H - System Reset Button
I - Power Button. To power off, Depress for 5 seconds or untill the disk LEDs blink
J - Mounting-ear with screw holes for 2-post rack mounting
K - Disk Tray Door Access
L - Disk Tray with lock-on latch
M - Latch with thumb screw to access the System Module
N - Cooling Fan
O - Power Switch
P - Power Connector (100~240VAC, 50/60Hz)
Q - Label (with Serial number, MAC address)
R - Ethernet Port (2)
If you purchased a diskless unit,
please read the optional
disk installation section before
connecting ReadyNAS to the network.
* For diskless unit only
S - Ethernet Port (1)
p1
