4" DIA.
4"
GTUP240EM/240GM
No. of 90º
Rigid
Elbows
Metal
GE
24" Unitized Spacemaker
®
0
56 Feet
1
44 Feet
2
34 Feet

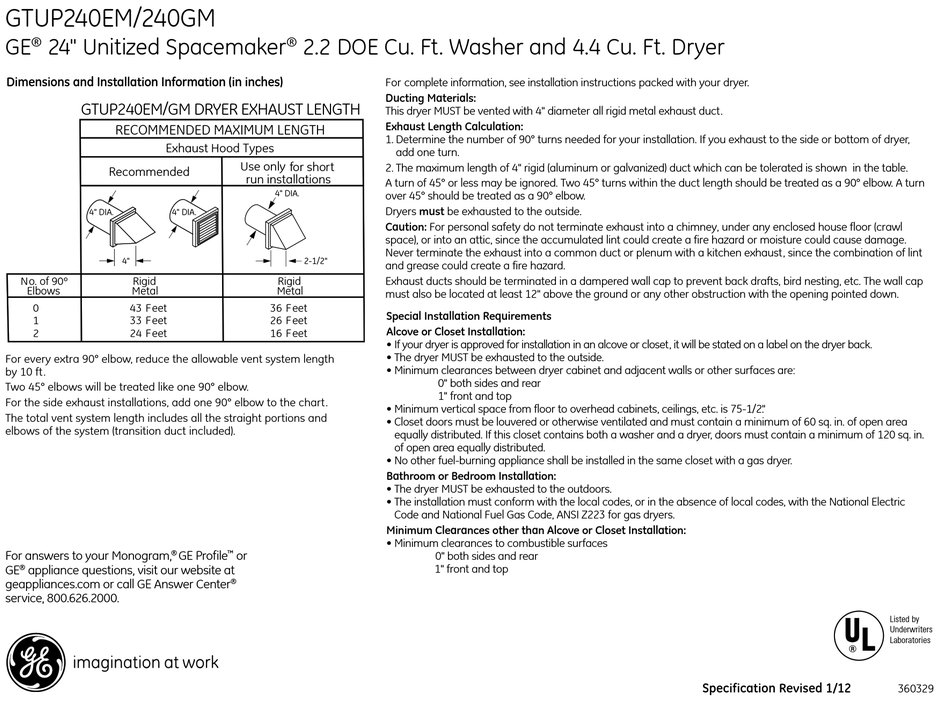

Dimensions and Installation Information (in inches)
3
24 Feet
GTUP240EM/GM DRYER EXHAUST LENGTH
RECOMMENDED MAXIMUM LENGTH
Recommended
4" DIA.
4"
No. of 90º
Rigid
Elbows
Metal
0
43 Feet
1
33 Feet
2
24 Feet
For every extra 90° elbow, reduce the allowable vent system length
6
by 10 ft.
Two 45° elbows will be treated like one 90° elbow.
For the side exhaust installations, add one 90° elbow to the chart.
The total vent system length includes all the straight portions and
elbows of the system (transition duct included).
For answers to your Monogram,
GE
®
appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
4" DIA.
2-1/2"
Rigid
Metal
2.2 DOE Cu. Ft. Washer and 4.4 Cu. Ft. Dryer
®
42 Feet
32 Feet
25 Feet
18 Feet
Exhaust Hood Types
Use only for short
run installations
4" DIA.
4" DIA.
2-1/2"
Rigid
Metal
36 Feet
26 Feet
16 Feet
GE Profile
or
®
™
®
For complete information, see installation instructions packed with your dryer.
Ducting Materials:
This dryer MUST be vented with 4" diameter all rigid metal exhaust duct.
Exhaust Length Calculation:
1. Determine the number of 90° turns needed for your installation. If you exhaust to the side or bottom of dryer,
add one turn.
2. The maximum length of 4" rigid (aluminum or galvanized) duct which can be tolerated is shown in the table.
A turn of 45° or less may be ignored. Two 45° turns within the duct length should be treated as a 90° elbow. A turn
over 45° should be treated as a 90° elbow.
Dryers must be exhausted to the outside.
Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed house floor (crawl
space), or into an attic, since the accumulated lint could create a fire hazard or moisture could cause damage.
Never terminate the exhaust into a common duct or plenum with a kitchen exhaust, since the combination of lint
and grease could create a fire hazard.
Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting, etc. The wall cap
must also be located at least 12" above the ground or any other obstruction with the opening pointed down.
Special Installation Requirements
Alcove or Closet Installation:
• If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.
• The dryer MUST be exhausted to the outside.
• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" both sides and rear
1" front and top
• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 75-1/2" .
• Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of open area
equally distributed. If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in.
of open area equally distributed.
• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
Bathroom or Bedroom Installation:
• The dryer MUST be exhausted to the outdoors.
• The installation must conform with the local codes, or in the absence of local codes, with the National Electric
Code and National Fuel Gas Code, ANSI Z223 for gas dryers.
Minimum Clearances other than Alcove or Closet Installation:
• Minimum clearances to combustible surfaces
0" both sides and rear
1" front and top
Specification Revised 1/12
Listed by
Underwriters
Laboratories
360329
