GE GTUP240EM5WW Installation Instructions Manual
GE GTUP240EM5WW Installation Instructions Manual

GE GTUP240EM5WW Installation Instructions Manual

Unitized electric wosher/dryer

Advertisement

Available languages

Available languages

Quick Links

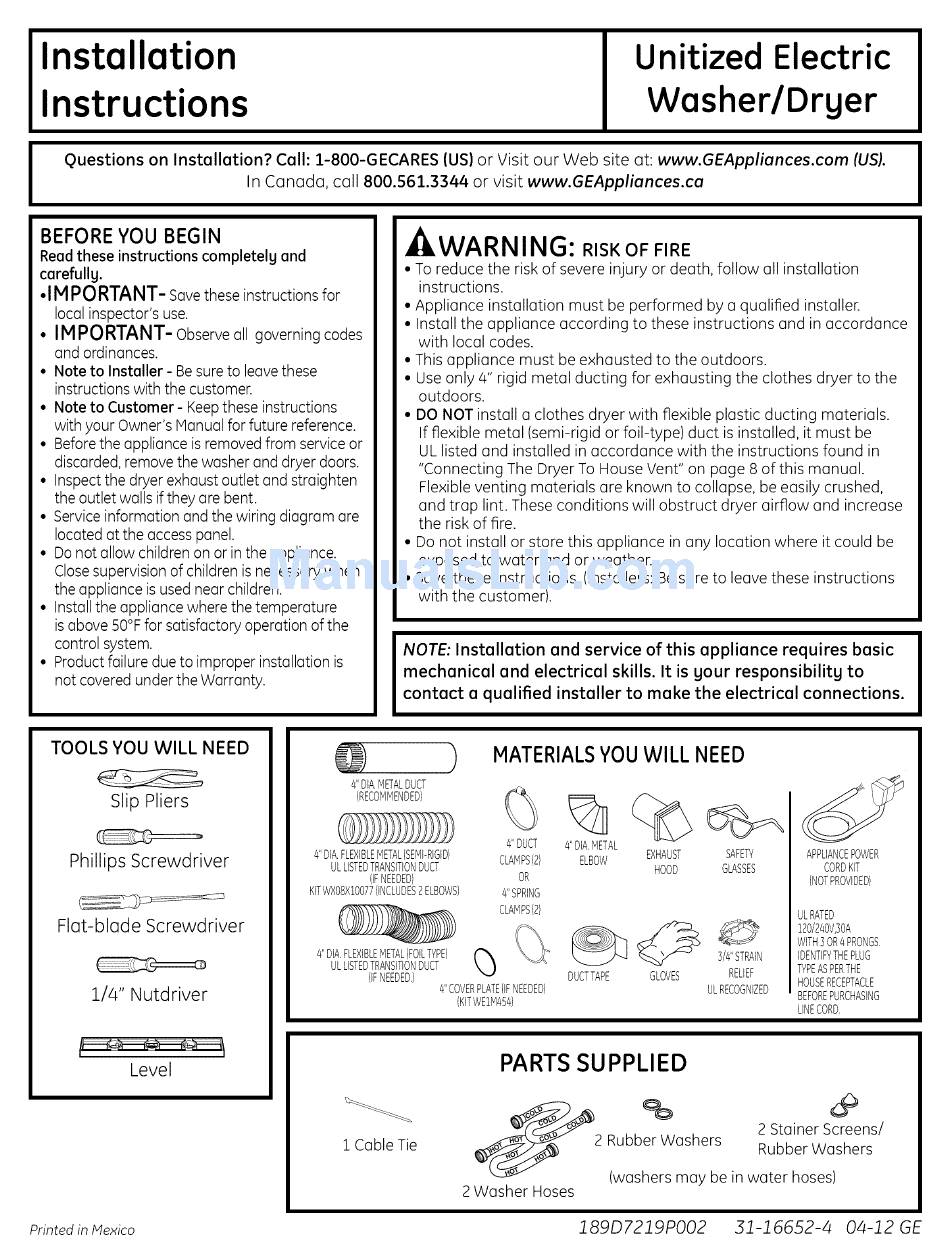

Installation
Instructions
Unitized Electric
Wosher/Drger
Questions
on Installation?
Call: 1-800-GECARES (US) or Visit our Web site at: www.GEApplionces.com
(US).
In Canada, call 800.561.3344
or visit www.GEApplionces.co
BEFORE YOU BEGIN
Readthese instructions completely and
carefully.
•IN PORTANT- save
these
instructions for
local inspector's use.
IMPORTANT-
Observe oil governing codes
and ordinances.
• Note to Installer - Be sure to leave these
instructions with the customer.
• Note to Customer- Keepthese instructions
with your Owner's Honuol for future reference.
• Beforethe appliance is removed from service or
discorded,remove the washer and dryer doors.
• Inspect the dryer exhaust outlet and straighten
the outlet walls if they ore bent.
• Service information and the wiring diagram ore
located at the access panel.
• Donot allow children on or in the appliance.
Closesupervisionof children is necessary when
the appliance is used near children.
• Installthe appliance where the temperature
is above 50°Ffor satisfactory operation of the
control system.
• Product failure due to improper installation is
not covered under the Warranty.
A,
,,^,,=,,=,,-
J:IkW_Kl_lll_llJ"
RISK OF FIRE
• To reduce the risk of severe injury or death, follow all installation
instructions.
• Appliance installation must be performed by a qualified installer.
• Install the appliance according to these instructions and in accordance
with local codes.
• This appliance must be exhausted to the outdoors.
• Use only 4" rigid metal ducting for exhausting the clothes dryer to the
outdoors.
• DO NOT install a clothes dryer with flexible plastic ducting materials.
If flexible metal (semi-rigid or foil-type) duct is installed, it must be
UL listed and installed in accordance with the instructions found in
"Connecting The Dryer To House Vent" on page 8 of this manual.
Flexible venting materials are known to collapse, be easily crushed,
and trap lint. These conditions will obstruct dryer airflow and increase
the risk of fire.
• Do not install or store this appliance in any location where it could be
exposed to water and or weather.
• Save these instructions. (Installers: Be sure to leave these instructions
with the customer).
NOTE: Installation
end service of this appliance
requires
basic
mechanical
end electrical
skills. It is gour responsibilitg
to
contact
a qualified
installer
to make the electrical
connections.
I
TOOLS YOU WILL NEED
Slip Pliers
Phillips Screwdriver
Flat-blade Screwdriver
1/4" Nutdriver
Level
)
# DAMETAL DUCT
(RECOMMENDED}
MATERIALS YOUWILL NEED
4' DUCT
# DIA.FLEXIBLE
METAL ( SEMI-RIGID}
CLAMPS (2}
U LLISTED
TRANSITION
DUCT
(IF NEEDED}
OR
KIT WXO8X10077 (INCLUDES
2 ELBOWS}
4' SPRING
CLAM PS (2}
# DA FLEXIBLE METAL (FOIL T YPE}
U LLISTED
TRANSITION
DUCT
,,,j
(iFNEEDED.}
4' COVER P LATE ( IFNEEDED}
(KiT W E1M454}
%
4' DIA, METAL
ELBOW
,d<5
EXHAUST
SAFETY
HOOD
GLASSES
_
3/#STRAIN
DUCT T APE
GLOVES
RELIEF
ULRECOGNIZED
APPLIANCE
POWER
CORD KIT
(NOT PROVIDED}
U LRATED
120/240V,30A
WITH 5OR 4 PRONGS,
IDENTIFY
THE PLUG
TYPE A S PERTHE
HOUSE
RECEPTACLE
BEFORE
PURCHASING
LINE C ORD,
PARTS SU PPLIED
1 Cable Tie
%
oo
2 Rubber Washers
2 Stainer Screens/
Rubber Washers
(washers may be in water hoses)
2 Washer Hoses
Printedin Mexico
189D7219PO02
31-16652-4
04-12
