Taillight/Brake Light Bulb Replacement

Make sure that the vehicle key switch is in the
OFF position and the key has been removed.

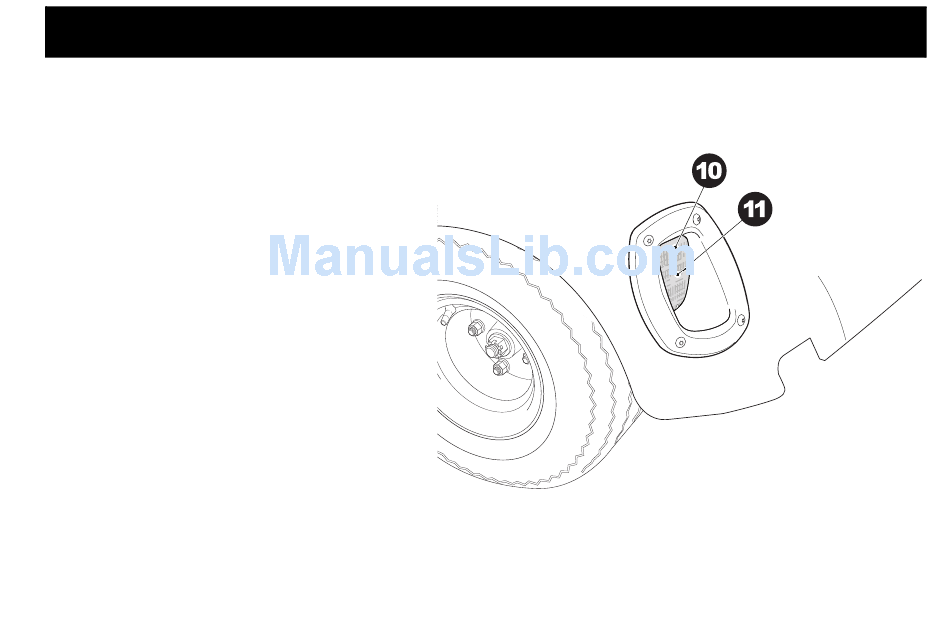

1. Remove the two Phillips head screws (10)
that secure the lens (11) to the taillight
assembly.
2. Remove the light bulb.
3. Install the new light bulb.
4. Install the lens (11) and secure in place
with the two Phillips head screws (10).
