Summary of Contents for BOXLIGHT XP-56d

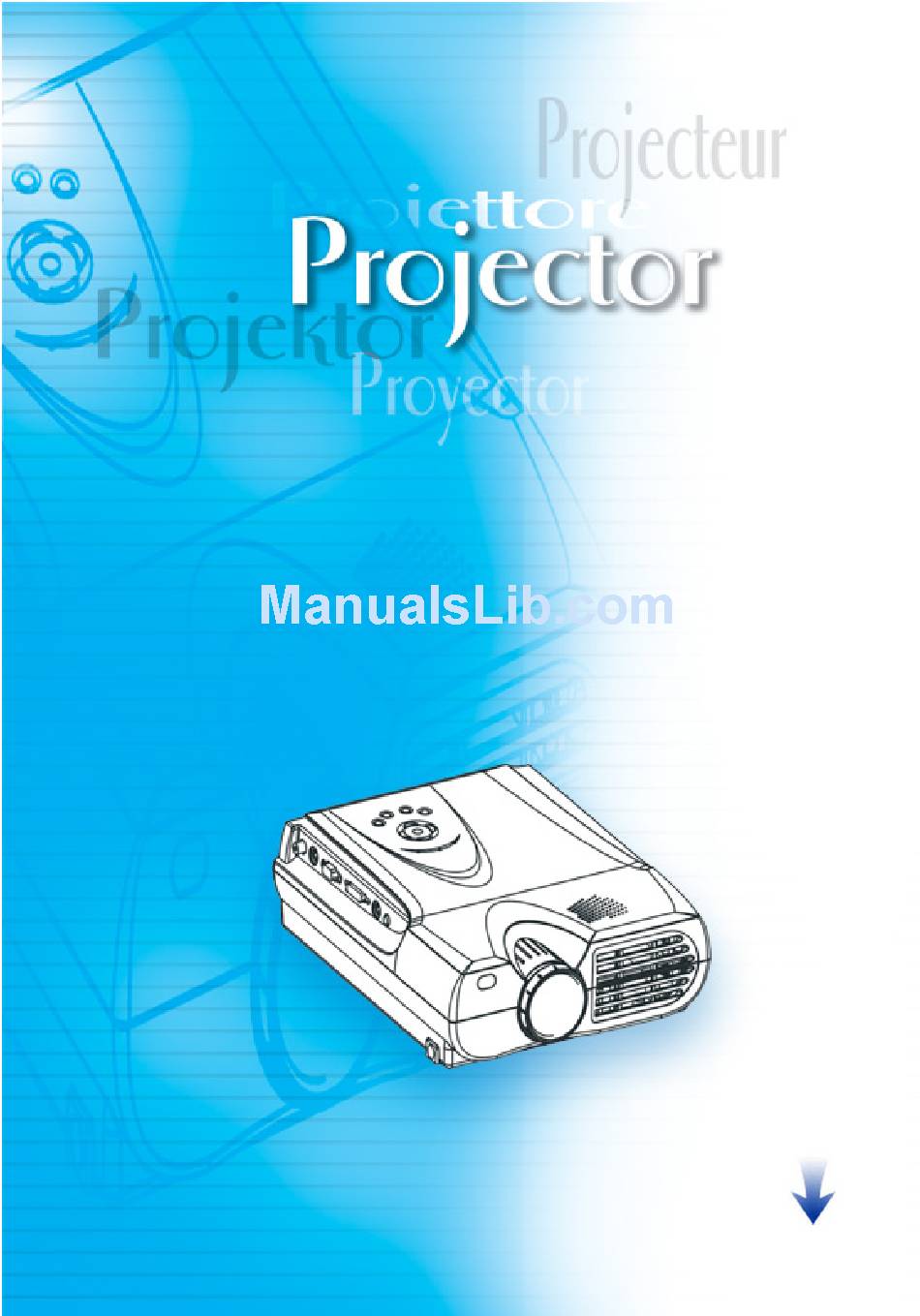

- Page 1 Micro Portable LCD Projector USER’S MANUAL MAIN PAGE...
-
Page 2: Table Of Contents
CONTENTS Overview Features & Warnings ................1 Checking the Accessories Standard and Optional Accessories ............2 Definitions of Keys and Indicators Remote Controller and Keys of Control Panel ........3 Definitions of Indicators and Definitions of key functions ....4 Setting Up Location for Setting Up ................. -
Page 3: Overview
Overview Features !2.7kgs Micro-Portable projector. !High Brightness with high Contrast ratio, total power consumption 220 W. !A wide variety of External Connections available for D-Sub 15 pin, S-Video, RCA composite signal and DVI Input（XGA Type）. !Good Compatibility：horizontal scanning frequency from 15 to 90KHz, and vertical scanning frequency from 43 to 85Hz , VGA to SXGA Signals. -
Page 4: Checking The Accessories
Checking the Accessories Standard Accessories ! Projector ! D-Sub 15pin Cable ! Lens Cover ! Audio Wire-RCA Jack ! Power Cord DVI Interface connecting wire （XGA Type） ! Remote Controller ! Video Wire-RCA Jack ! No.4 AAA Battery x 2 ! PS/2 Mouse connecting wire ! Audio Wire-Phone Jack ! User’s Manual ! S-Video Wire Carrying bag for projector and accessories... -
Page 5: Definitions Of Keys And Indicators
Definitions of Keys and Indicators Remote Controller Keys of Control Panel... -
Page 6: Definitions Of Indicators And Definitions Of Key Functions
Definitions of Indicators Meaning ◎Red ◎Green ◎Orange Standby Mode Normal Normal Working Mode Indicator Heat Dissipating Alternate Flash per second Flash Abnormal Fan （Heat Dissipating） Abnormal Flash Abnormal Fan Indicator No Power Definitions of key functions Function (Under normal working mode) Power ! Press Power button to turn on the projector. -
Page 7: Setting Up
Setting Up Locations for Setting Up ! Projector shall be placed on steady desktop or use specific tooling to hand on solid ceiling. ! Adjust projector so the lens is perpendicular to screen, otherwise, the image on screen will have trapezoidal shape. Projection Distance /Size Table Projection Project Distance /m... -
Page 8: Zoom, Focus And Height Adjustment
Zoom, Focus and Height Adjustment Focus , Magnitude Adjustment !When the image appears on the screen, use these functions to focus and adjust screen alignment. !Actual projected display size depends on the distance between the projector and the screen, as well as the magnitude of projector lens. !Focus adjustment：Turn the focusing ring of the lens, which is the outer ring at the lens in front side of projector. -
Page 9: External Connections
External Connections Connecting to PC ! Connect the D-Sub 15 pin cable the VGA card of the computer into the from terminal of the projector . VGA IN ! Mark sure that both parts have a good connection. ! Turn on projector first then computer. -
Page 10: Connecting To Video Signals
Connecting to Video Signals !Connecting to video signal sources such as VTR , DVD or LD. !The method for connecting RCA jack AV wire is shown below !The method for connecting S-Video Wire is shown below... -
Page 11: Display/Exit Osd Menu
OSD (On Screen Display) Manu Display/Exit OSD Menu !Press MENU key to display the main menu. !The contents of main menu are different according to various input signals which are shown as the following： !Press EXIT key to Exit the main menu. Input signals of Input signals of AV or S -VIDEO VGA or DVI... -
Page 12: Advanced Setting Adjustment
Advanced Setting Adjustment !After displaying OSD menu, press key to move the Bar to “Advanced ” " # !Press key to enter sub menu. !Press key to move Bar to the option which needs to be adjusted . " # !Press key to set the value and press key to return to main menu. -
Page 13: Advanced Scale Adjustment (Digital Zoom)
Advanced Scale Adjustment (Digital Zoom) !After displaying OSD menu, press key to move the Bar to “Adv. " # Scale ”. !Press key to enter sub menu. !Press key to move Bar to the option which needs to be adjusted. "... -
Page 14: Options
Options !After display Main-menu，press key to move Bar to “Options ” " # !Press key to enter sub-Menu. !Press key to move Bar to the option which needs to be adjusted. " # !Press key to set value and press MENU key to return to main menu. !Press EXIT key to exit the menu and save the value. -
Page 15: Audio Adjustment
Audio Adjustment !After displaying main menu，press key to move Bar to “Audio ” . " # !Press key to enter sub menu. !Press key to move Bar to the option which is about adjusted. " # !Press key to set the value and press key to return to main menu. -
Page 16: Maintenance
Maintenance Handling of Abnormality Abnormality of Indicators !When Red indicator is on, it means the heat dissipation or fan is at fault, please contact with your dealer. !If there is No indicator on, please check whether the power cord connect properly. -
Page 17: Replacing Main Lamp
Replacing Main Lamp Replacing Lamp Module !When the red indicator is flashing and the lamp doesn’t lighting up, the lamp source might abnormal or burn out. !When the projection image is too dark, or the projection image is unstable and flashing , please change the lamp. !Please use specific lamp module provided by your local dealer. -
Page 18: Appendix
Appendix Compatible Modes Resolution Resolution V. Frequency H. Frequency V. Frequency H. Frequency 720 × 420 70Hz 31.5KHz 1152 ×864 60Hz 54.3KHz 640 × 350 70Hz 31.5KHz 1152 ×864 70Hz 63.9KHz 720 × 400 85Hz 37.9KHz 1152 ×864 70Hz 64KHz 640 ×...
