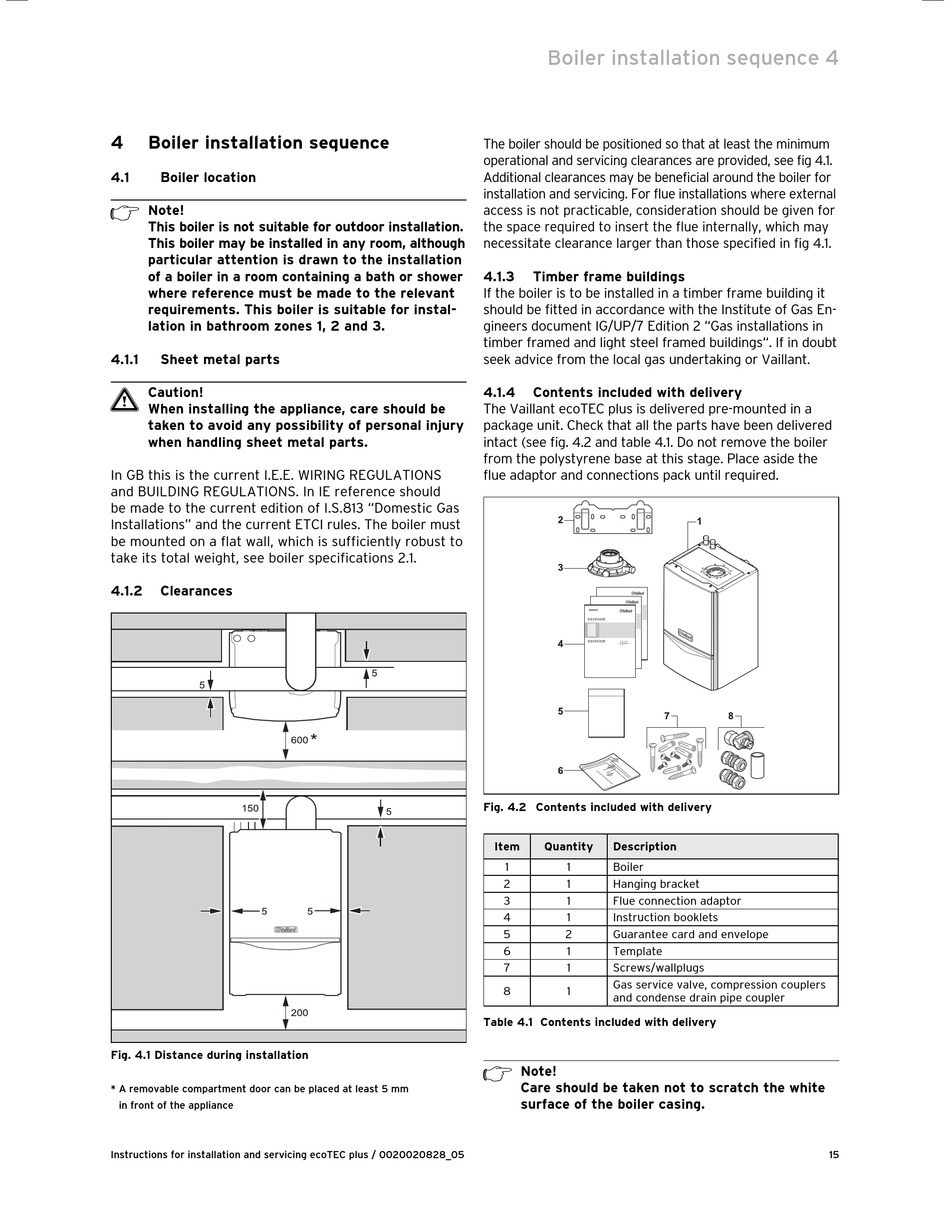

4 Boiler installation sequence
4.1

Boiler location

h Note!
This boiler is not suitable for outdoor installation.
This boiler may be installed in any room, although
particular attention is drawn to the installation
of a boiler in a room containing a bath or shower
where reference must be made to the relevant
requirements. This boiler is suitable for instal-
lation in bathroom zones 1, 2 and 3.
4.1.1

Sheet metal parts

a Caution!
When installing the appliance, care should be
taken to avoid any possibility of personal injury
when handling sheet metal parts.
In GB this is the current I.E.E. WIRING REGULATIONS
and BUILDING REGULATIONS. In IE reference should
be made to the current edition of I.S.813 "Domestic Gas
Installations" and the current ETCI rules. The boiler must
be mounted on a flat wall, which is sufficiently robust to
take its total weight, see boiler specifications 2.1.
4.1.2

Clearances

Fig. 4.1 Distance during installation
* A removable compartment door can be placed at least 5 mm
in front of the appliance
Instructions for installation and servicing ecoTEC plus / 0020020828_05

Boiler installation sequence 4

The boiler should be positioned so that at least the minimum
operational and servicing clearances are provided, see fig 4.1.
Additional clearances may be beneficial around the boiler for
installation and servicing. For flue installations where external
access is not practicable, consideration should be given for
the space required to insert the flue internally, which may
necessitate clearance larger than those specified in fig 4.1.
4.1.3

Timber frame buildings

If the boiler is to be installed in a timber frame building it
should be fitted in accordance with the Institute of Gas En-
gineers document IG/UP/7 Edition 2 "Gas installations in
timber framed and light steel framed buildings". If in doubt
seek advice from the local gas undertaking or Vaillant.
4.1.4

Contents included with delivery

The Vaillant ecoTEC plus is delivered pre-mounted in a
package unit. Check that all the parts have been delivered
intact (see fig. 4.2 and table 4.1. Do not remove the boiler
from the polystyrene base at this stage. Place aside the
flue adaptor and connections pack until required.
Fig. 4.2 Contents included with delivery
Item Quantity Description
1 1 Boiler
2 1 Hanging bracket
3 1 Flue connection adaptor
4 1 Instruction booklets
5 2 Guarantee card and envelope
6 1 Template
7 1 Screws/wallplugs
Gas service valve, compression couplers
8 1
and condense drain pipe coupler
Table 4.1 Contents included with delivery
h Note!
Care should be taken not to scratch the white
surface of the boiler casing.
15
