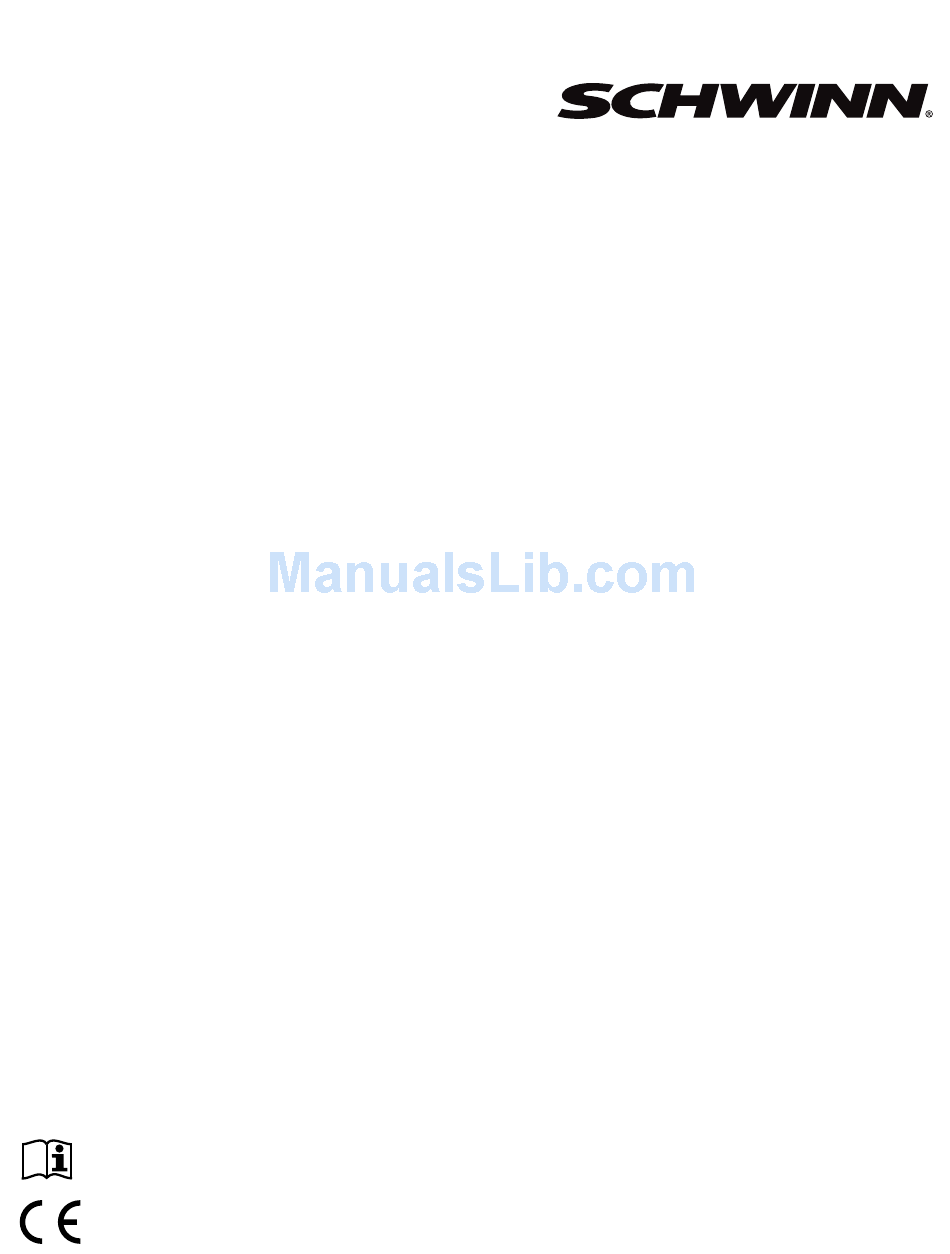

- Page 1 170i This product is compliant with the applicable CE requirements. ASSEMBLY MANUAL / OWNER’S MANUAL...
-
Page 2: Table Of Contents
Serial Number __________________________ Date of Purchase ____________________ To register your product warranty, contact your local distributor. If you have questions or problems with your product, please contact your local Schwinn distributor. ® To find your local distributor, go to: www.nautilusinternational.com Nautilus, Inc., www.NautilusInc.com - Customer Service: technics@nautilus.com | Nautilus, Inc., 18225 NE Riverside Parkway, Portland, OR... -
Page 3: Important Safety Instructions - Assembly
ImporTanT safeTy InsTruCTIons — assembly This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Obey the following warnings: Read and understand all warnings on this machine. Carefully read and understand the Assembly instructions. •... -
Page 4: Safety Warning Labels / Serial Number
safeTy WarnIng labels and serIal number • Read, understand and obey all warnings on this machine. • Keep children away. • Not intended for use by anyone under 14 years of age. • Prior to use, read and understand the Owner’s Manual. •... -
Page 5: Specifications
speCIfICaTIons Maximum User Weight: 136 kg (300 lbs.) Total Surface Area (footprint) of equipment: 5670 cm Machine Weight: 28.5 kg (62.3 lbs.) Power Requirements: Operational Voltage: 220V - 240V AC, 50Hz Operating Current: 0.4A Regulatory Approvals 141cm (55.6”) AC Power Adapter: CE compliant. 105cm (41.3”) 54cm (21.4”) This product conforms to the applicable EN ISO 20957 International Standards for Stationary Training Equipment, Class S... -
Page 6: Parts
parTs 13 (R) 12 (L) Item Description Item Description Main Frame Seat Post Front Stabilizer Adjustment Knob Rear Stabilizer Seat Top Shroud Left Pedal (L) Mast Gasket Right Pedal (R) Console Mast (with Handlebar Mount) Water Bottle Holder Handlebars AC Adapter Console Handlebar Mount Cover Note: Media Cable is in a bag. -
Page 7: Hardware
HardWare / Tools Item Description Button Head Hex Screw M8 x 25 Lock Washer M8 Curved Washer M8 Flat Washer M8 T-handle Tools Included 6 mm... -
Page 8: Assembly
1. Attach Stabilizers to Main Frame Note: Hardware(*) is pre-installed on the stabilizers and not on Hardware Card. Make sure transport wheels on the front stabilizer point forward, and the Schwinn decal on the rear stabilizer faces outward from the machine. - Page 9 3. Install Handlebars on Console Mast NOTICE: Do not crimp the cables. Put the Handlebar (7) in the bracket (6a), adjust the Handlebar to the desired angle, and install the T-handle (E) through the holes. Use the pull cable in the Handlebar Mount to route the HR cable (7a) through the slot (6c) under the Handlebar Mount to the top of the mast.
- Page 10 4. Install Console on Console Mast Note: Remove the pre-installed screws(*) from the back of the Console before you connect the cables. NOTICE: Do not crimp the cables.
- Page 11 5. Install Seat Post on Frame NOTICE: Make sure the Adjustment Knob engages the Seat Post. Do not set the Seat Post position higher than the stop mark (STOP) on the tube. STOP 6. Attach Seat to Seat Post NOTICE: Be sure the Seat is straight. Tighten the nuts (11b) on the Seat bracket (11a) to hold the Seat in position.
- Page 12 7. Install Pedals Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”. 13 (R) 12 (L)
- Page 13 8. Install Water Bottle Holder Note: The hardware(*) is pre-installed on the Console Mast and not on Hardware Card. 9. Connect AC Adapter 10. Final Inspection Inspect your machine to ensure that all hardware is tight and components are properly assembled. Be sure to record the serial number in the field provided at the front of this manual.
-
Page 14: Leveling The Bike
before you sTarT Leveling Your Bike Levelers are found on each side of the Rear Stabilizer. Turn the knob to adjust the stabilizer foot. Make sure the bike is level and stable before you exercise. Moving Your Bike To move the upright bike, carefully tilt the Handlebars toward you while pushing the front of the bike downward. Push the bike to the desired location. -
Page 15: Important Safety Instructions - Owner's
ImporTanT safeTy InsTruCTIons This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Before using this equipment, obey the following warnings: Read and understand the complete Manual. Keep the Manual for future reference. Read and understand all warnings on this machine. -
Page 16: Features
feaTures Console Power Connector Handlebars with Elbow Pads Water Bottle Holder Adjustable Seat MP3 Input Seat Slider Adjustment Knob USB Port Seat Post Adjustment Knob Contact Heart Rate (CHR) Sensors Pedals Speakers Stabilizers Levelers Media Tray Fully Shrouded Flywheel Telemetry Heart Rate (HR) Receiver Transport Rollers Media Cable WARNING! Heart rate monitoring systems may be inaccurate. -
Page 17: Console Features
Console Features The Console provides important information about your workout and lets you control the resistance levels while you exercise. The Console features the Schwinn Dual Track display with touch control buttons to navigate you through the exercise ™ programs. - Page 18 Resistance Level Quick Buttons- Shifts the resistance levels to the setting quickly during a workout Achievement Indicator Lights- when an achievement level is reached or a result is reviewed, the achievement indicator light will activate. Schwinn Dual Track Display ™...
- Page 19 Achievement Display The Achievement Display activates when a workout goal is reached or a workout milestone is surpassed from past workouts. The Console display will congratulate and inform the User of their achievement, along with a celebratory sound. 40% 70% Lower Display Data The Lower Display shows the Workout Values.
-
Page 20: Remote Heart Rate Monitor
Remote Heart Rate Monitor Monitoring your Heart Rate is one of the best procedures to control the intensity of your exercise. Contact Heart Rate (CHR) sensors are installed to send your heart rate signals to the Console. The Console can also read telemetry HR signals from a Heart Rate Chest Strap Transmitter that operates in the 4.5kHz - 5.5kHz range. - Page 21 The Heart Rate table is an estimate of what Heart Rate Zone (HRZ) is effective to burn fat and improve your cardiovascular system. Physical conditions vary, therefore your individual HRZ could be several beats higher or lower than what is shown. The most efficient procedure to burn fat during exercise is to start at a slow pace and gradually increase your intensity until your heart rate reaches between 50 –...
-
Page 22: Operations
operaTIons What to Wear Wear rubber-soled athletic shoes. You will need the appropriate clothes for exercise that allow you to move freely. How Often Should You Exercise Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in your chest, become short of breath, or feel faint. -
Page 23: Quick Start / Manual Program
Time: Push the Increase/Decrease buttons to adjust the currently active value (flashing). Push the Left/Right buttons to change which segment is the currently active value (hour / minute / AM or PM). Push OK to set. Units of Measurement: Push the Increase/Decrease buttons to adjust between “MILES” (Imperial English) or “KM” (metric). - Page 24 Edit User Profile From the Power-Up Mode screen, push the Increase() or Decrease() buttons to select one of the User Profiles. 2. Push the OK button to select the User Profile. 3. The Console display shows the EDIT prompt and the current User Profile name. Push OK to start the Edit User Profile option.
-
Page 25: Profile Programs
3. The Console display shows the current User Profile name and the EDIT prompt. Push the Increase() or Decrease() buttons to change the prompt. Note: To exit the Edit User Profile option, push the PAUSE/END button and the console will go back to the Power-Up Mode screen. - Page 26 Pyramids Pyramids Summit Pass Summit Pass CHALLENGES Uphill Finish Uphill Finish Uphill Finish Cross-Training Cross-Training Cross-Training Interval Interval Stairs Interval Interval Stairs Stairs Interval Stairs Workout Profile and Goal Program The Console lets you select the Profile Program and type of Goal for your workout (Distance, Time or Calories), and set the Goal value.
- Page 27 Recovery Test Program Recovery Test shows how quickly your heart recovers from an exercise state to a more restful state. Improved recovery is an indicator of increasing fitness. Note: The Console must be able to read the heart rate information from the Contact Heart Rate (CHR) sensors or Heart Rate Monitor (HRM) to work correctly.
-
Page 28: Pausing Or Stopping
Console automatically goes into Sleep Mode. GOAL TRACK Statistics (and Achievements) The statistics from every workout are recorded to a User Profile. The Schwinn Dual Track Console shows the Goal Track workout Statistics on the Lower Display in three channels: ™... - Page 29 To view the GOAL TRACK statistics of a User Profile: From the Power-Up screen, push the Increase() or Decrease() buttons to select a User Profile. 2. Push the GOAL TRACK button. The Console will display the LAST WORKOUT values and activate the corresponding Achievement light.
-
Page 30: Console Setup Mode
Console seTup mode www.SchwinnConnect.com Go to the www.SchwinnConnect.com web site to create an online profile, upload your workout results using a USB Flash Drive, and then view and track your achievements over time. www.SchwinnConnect.com also works with MyFitnessPal. Simply follow the prompts from the “Link to MyFitnessPal” button, and your workout results will be available with your existing MyFitnessPal profile. -
Page 31: Maintenance
maInTenanCe Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is necessary to do the necessary tasks. Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that regular maintenance is done. - Page 32 Maintenance Parts Console HR Cables Flywheel Console Mast CHR Sensors Brake Assembly Pedals Seat RPM Sensor Crank Arms Seat Post w/ Slider Speed Sensor Magnet Left Shroud Adjustment Knob Servo Motor Power Inlet Seat Post Shroud Drive Belt Right Shroud Water Bottle Holder Drive Pulley Top Shroud...
-
Page 33: Troubleshooting
TroublesHooTIng Condition/Problem Things to Check Solution No display/partial display/ Check electrical (wall) Make sure unit is plugged into a functioning wall outlet. unit will not turn on outlet Check connection on Connection should be secure and undamaged. Replace adapter console or connection at unit if either are damaged. - Page 34 Condition/Problem Things to Check Solution Check magnet position Magnet should be in place on pulley. (requires shroud removal) Check Speed Sensor Speed sensor should be aligned with magnet and connected to (requires shroud removal) data cable. Realign sensor if necessary. Replace if there is any damage to the sensor or the connecting wire.
- Page 36 Nautilus Bowflex Schwinn Universal ® ® ® ® 8002942.081513.A...
