Electrolux 253.28092802 Repair Parts List Manual

Sears upright freezer
Hide thumbs


Advertisement

REPAIR
PARTS
LIST
253.28092802
For Parts or Service:
Call
P08F0137.eps P08D0618.eps P08C1202.eps P08S0485.eps
1-800-4-MY-HOME
(1-800-469-4663)
Or Visit
www.sears.com
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

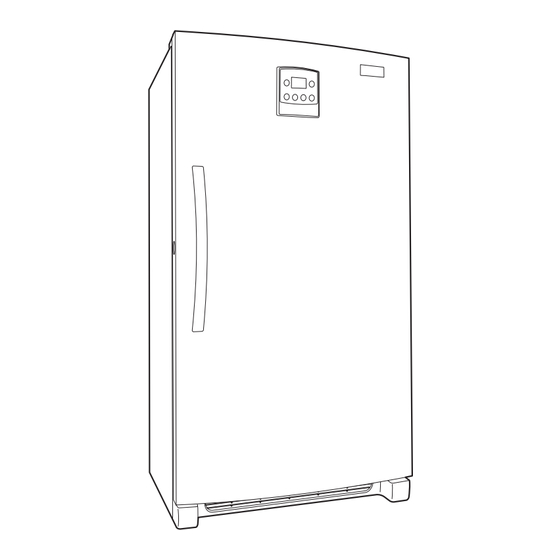

UPRIGHT FREEZER
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the left side of
the access panel.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
®
• Product Type
• Model Number
Publication number 5995546719
• Part Number
• Part Description
