Electrolux 253.28712809 Repair Parts List Manual

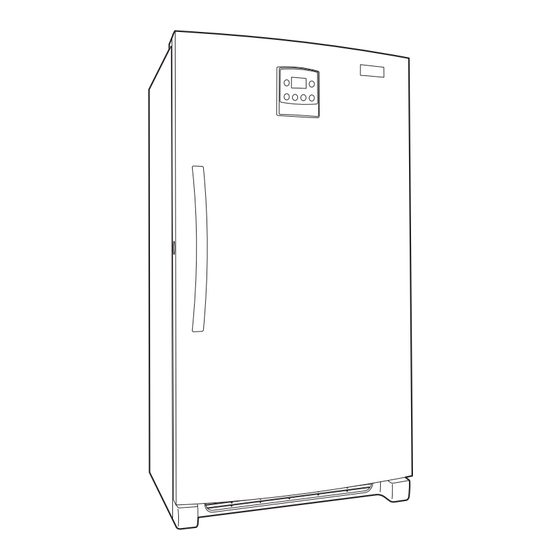

Sears upright freezer
Hide thumbs


Advertisement

REPAIR
PARTS
LIST
253.28712809
For Parts or Service:
Call
P08F0137.eps P08D0624.eps P08C1202.eps R08S0525.wmf
1-800-4-MY-HOME
(1-800-469-4663)
Or Visit
www.sears.com
Sears Brands Management Corporation, Hoffman Estates, IL 60179
UPRIGHT FREEZER
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the left side of
the access panel.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
®
• Product Type
• Model Number
Publication number 5995603247
• Part Number
• Part Description

Advertisement

Table of Contents
loading

  Related Manuals for Electrolux 253.28712809

  Summary of Contents for Electrolux 253.28712809

  • Page 1 REPAIR PARTS LIST 253.28712809 UPRIGHT FREEZER In all orders or correspondence, avoid delays and misunderstandings by always giving the complete model number shown on the left side of the access panel. All repair parts listed are available for immediate purchase or special order when you visit your nearest Sears Parts &...
  • Page 2 253.28712809 DOOR CAUTION: Use the Kenmore part number to order part, not the illustration number. P08D0624 11/11...
  • Page 3 253.28712809 CAUTION: Use the Kenmore part number to order part, not the illustration number. POS. NO PART NO. DESCRIPTION 216522359 Gasket-door, white 297318600 Lock Assy 297213300 Clip, spring 297147700 Key, lock 297185800 Panel-inner door, frzr 297317202 Panel-outer door, white 297086400...
  • Page 4 253.28712809 CABINET 137B 137C 156A P08C1202 11/11...
  • Page 5 253.28712809 CABINET POS. NO PART NO. DESCRIPTION 216503100 Screen-drain 216325600 Fan Blade 297200600 Breaker Kit w/corners, no lock slot 297200800 Breaker Kit w/corners, incl lock catch 297200100 Breaker Kit w/corners, 32", top and bottom 13 # 297250000 Motor, fan, 115 V...
  • Page 6 253.28712809 SYSTEM 11/11...
  • Page 7 253.28712809 SYSTEM POS. NO PART NO. DESCRIPTION 5300083897 Condenser 5308000110 Strap-evap/heater, aluminum, (2) 216987501 Dryer-filter 297237602 Harness-main 14 # 297348700 Defrost Heater, w/thermostat, termination swt 15 # 216997300 Evaporator 297217900 Heat Exchanger, suct/cap tube 297078701 Insulator-evap, styrofoam, RH 297078801 Insulator-evap, styrofoam, LH...
  • Page 8 Get it fixed, at your home or ours! Your Home For troubleshooting, product manuals and home solutions advice: www.managemyhome.com For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner’s manuals that you need to do-it-yourself.
