Summary of Contents for Kenmore 253.70181

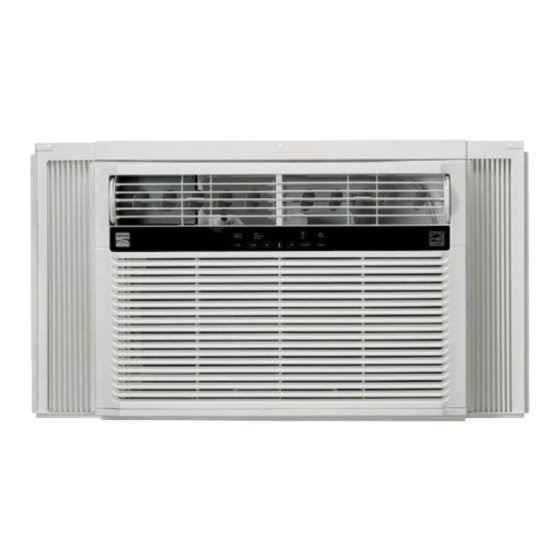

- Page 1 Use & Care Guide Manual de Uso y Cuidado English / Español Models/Modelos: 253.70181, 253.70251 Kenmore WINDOW TYPE ROOM AIR CONDITIONER Use & Care Guide Manual de uso y cuidado P/N 2020219A0900 Sears Brands Management Corporation, Ho man Estates, IL 60179 USA www.sears.com...
-
Page 2: Table Of Contents
TA B L E O F C O N T E N T S Warranty ............2 Care and Cleaning ........... 9 Master Protection Agreements ......3 Energy Saving Ideas ........9 Important Safety Instructions ......4 Troubleshooting Guide ........10-11 Air conditioner Feature ........5-7 Normal Sounds .......... -
Page 3: Master Protection Agreements
Master Protection Agreements ® Congratulations on making a smart purchase. Your new Kenmore product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation. The Master Protection Agreement also helps extend the life of your new product. -
Page 4: Important Safety Instructions
Important Safety Read all instructions before using this air conditioner. For Your Safety WARNING Instructions Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings. NOTE The power supply cord with Prevent Accidents... -
Page 5: Air Conditioner Features
Air Conditioner Features ELECTRONIC CONTROL Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below and all its functions, then touch the symbol pads for the functions you desire. The unit can be controlled by the panel touch pads or with the remote control. - Page 6 Air Conditioner Features (continued) Note: The following instructions describe the Control Panel Touch Pads. The same instructions apply to the Remote Control. To turn unit on or off press the ON/OFF button: Note: The unit is programmed to start in the cool mode, with high fan speed and a temperature setting of 72 °F.
- Page 7 Air Conditioner Features (continued) To use Energy Saver press the MODE button to select: You will save energy usage in this mode. The compressor and motor will turn off once the room is at the desired temperature. The air will be sampled for 20 seconds every 10 minutes until the room is above the set temperature, at which point the compressor turns back on and the fan runs.
-
Page 8: Additional Things
ADDITIONAL THINGS YOU SHOULD KNOW Now that you understand the basic operation functions, here are more control features with which you should become familiar. The “cool” circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. -
Page 9: Air Conditioner Feature
LOUVERS Air Directional Louvers Air directional louvers control air flow direction. Your air conditioner has the 8-way directional system described below. The louvers will allow you to direct the air flow Up or Down and Left or Right throughout the room as needed. Rotate the Auger Wheels until the desired Left or Right direction is obtained. -
Page 10: Troubleshooting Guide
Room Air Conditioner Troubleshooting Guide ® THE AIR CONDITIONER WILL NOT OPERATE Check if Then Power supply cord is disconnected Firmly push the cord into a live wall outlet having proper voltage. (Page 4) breaker House fuse has blown or circuit breaker tripped Replace the fuse with a time delay type or reset the circuit . - Page 11 Room Air Conditioner Troubleshooting Guide (Continued) THE AIR CONDITIONER RUNS TOO MUCH Check if Then Inside blower continues operating for one minute to use as much cooling that is Energy Saver is chosen. available in the evaporator. Newer, higher efficiency Air Conditioner may run longer to cool the room. Total Current Unit replaced an older unit.
-
Page 12: Normal Sounds
Normal Sounds High Pitched Whine Vibration Today’s high efficiency Unit may vibrate and make compressors may have a noise because of poor wall high pitched whine during or window construction or the cooling cycle. incorrect installation. Sound of Rushing Air At the front of the unit, you may hear the sound of rushing air being moved... -
Page 13: Sears Service
Get it fixed, at your home or ours! Your Home For troubleshooting, product manuals and home solutions advice: www.managemyhome.com For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner’s manuals that you need to do-it-yourself.
