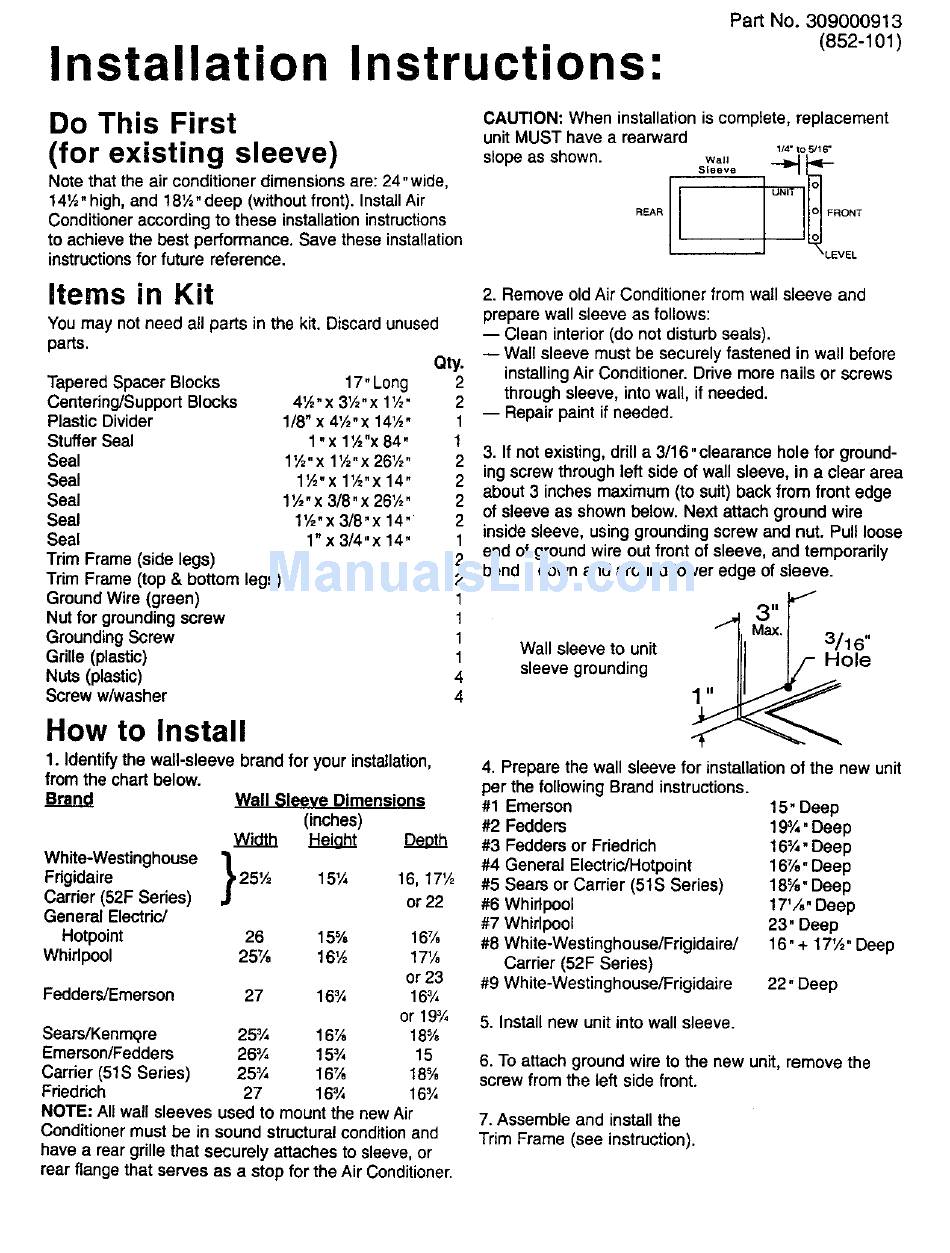

Installation Instructions:
Pa_ No. 309000913
(852-101)
Do This First
(for existing sleeve)
Note that the air conditioner dimensions are: 24" wide,
14½" high, and 18½" deep (without front). Install Air
Conditioner according to these installation instructions
to achieve the best performance. Save these installation
instructions for future reference.
Items in Kit
You may not need all parts in the kit. Discard unused
parts.
Qty.
Tapered Spacer Blocks 17" Long 2
Centering/Support Blocks 4½" x 3½" x 1½" 2
Plastic Divider 1/8" x 4½"x 14½- 1
Stuffer Seal 1 "x 1½"x 84" 1
Seal 1½" x 1½" x 26½" 2
Seal 1½"x 1½"x 14" 2
Seal 1½" x 3/8" x 26½" 2
Seal 1',_"x 3/8" x 14" 2
Seal 1" x 3/4"x 14, 1
Trim Frame (side legs) 2
Trim Frame (top & bottom legs) 2
Ground Wire (green) 1
Nut for grounding screw 1
Grounding Screw 1
Grille (plastic) 1
Nuts (plastic) 4
Screw w/washer 4
How to Install
1. Identify the wall-sleeve brand for your installation,
from the chart below.
Brand
White-Westinghouse
Frigidaire
Carrier (52F Sedes)
General Electric/
Hotpoint
Whirlpool
Wall Sleeve Dimensions
(inches)
Width He oht Oeoth
25½ 15½ 16, 17½
or 22
26 15%
25% 16½
Fedders/Emerson 27 16¾
16%
17½
or23
16%
or19¾
18%
15
18%
16¾
Sears/Kenmqre 25% 16¼
Emerson/Fedders 26% 15¾
Carrier (51S Series) 25¾ 16¼
Friedrich 27 16¾
NOTE: All wall sleeves used to mount the new Air
Conditioner must be in sound structural condition and
have a rear grille that securely attaches to sleeve, or
rear flange that serves as a stop for the Air Conditioner.
CAUTION: When installation is complete, replacement
unit MUST have a rearward
1/4" to 5/16"
REAR FRONT
VEL
2. Remove old Air Conditioner from wall sleeve and
prepare wall sleeve as follows:
-- Clean interior (do not disturb seals).
-- Wall sleeve must be securely fastened in wall before
installing Air Conditioner. Drive more nails or screws
through sleeve, into wall, if needed.
-- Repair paint if needed.
3. If not existing, drill a 3/16" clearance hole for ground-
ing screw through left side of wall sleeve, in a clear area
about 3 inches maximum (to suit) back from front edge
of sleeve as shown below. Next attach ground wire
inside sleeve, using grounding screw and nut. Pull loose
end of ground wire out front of sleeve, and temporarily
bend it down and around lower edge of sleeve.
Wall sleeve to unit
sleeve grounding
3" _
"_]l Max'] 3/16"
ill IF Ho,e
4. Prepare the wall sleeve for installation of the new unit
per the following Brand instructions.
#1 Emerson
#2 Fedders
#3 Fedders or Friedrich
#4 General Electric/Hotpoint
#5 Sears or Carrier (51S Series)
#6 Whirlpool
#7 Whirlpool
#8 White-Westinghouse/Frigidaire/
Carrier (52F Series)
#9 White-Westinghouse/Frigidaire
15" Deep
19¾"Deep
16¾"Deep
16%"Deep
18%"Deep
17'A.Deep
23"Deep
16"+ 17½"Deep
22"Deep
5. Install new unit into wall sleeve.
6. To attach ground wire to the new unit, remove the
screw from the left side front.
7. Assemble and install the
Trim Frame (see instruction).
