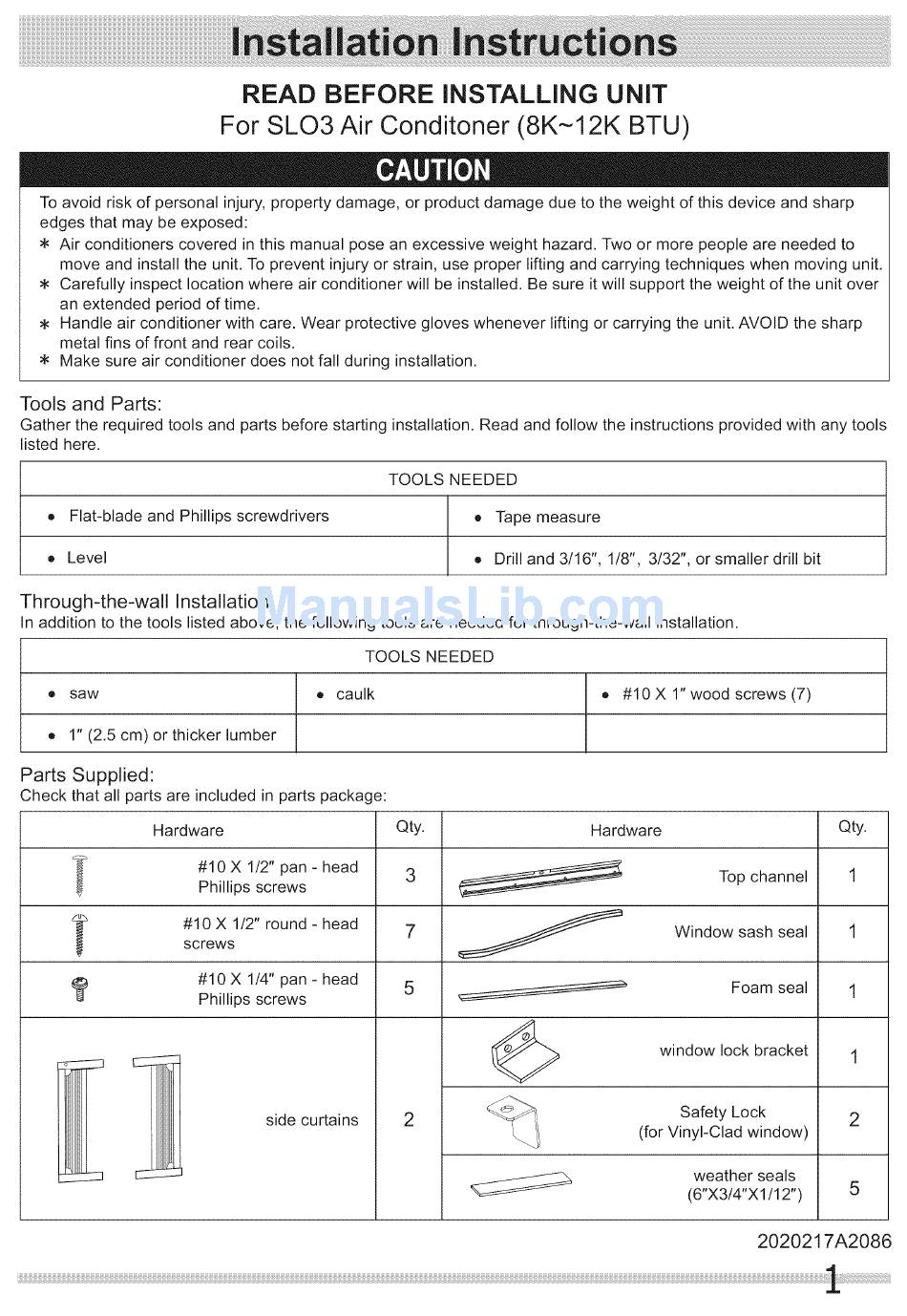

READ BEFORE INSTALLING
UNiT
For SLO3 Air Conditoner (8K~12K BTU)
To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp
edges that may be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to
move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit over
an extended period of time.
Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp
metal fins of front and rear coils.
Make sure air conditioner does not fall during installation.
Tools and Parts:
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools
listed here.
TOOLS NEEDED
•
Flat-blade and Phillips screwdrivers
• Level
•
Tape measure
o Drill and 3/16", 1/8"_ 3/32", or smaller drill bit
Through-the-wall
Installation:
In addition to the tools listed above, the following tools are needed for through-the-wall
installation.
TOOLS NEEDED
•
saw
•
1" (2.5 cm) or thicker lumber
• caulk
• #10 X 1" wood screws (7)
Parts Supplied
Check that all parts are included in parts package:
Hardware
Qty.
Hardware
#10 X 1/2" pan - head
Phillips screws
#10 X 1/2" round - head
screws
#10 X 1/4" pan - head
Phillips screws
Top channel
side curtains
5
2
Window sash seal
Foam seal
window lock bracket
Safety Lock
(for Vinyl-Clad window)
weather seals
(6"X3/4"X1/12")
Qty.
1
2
5
2020217A2086
