FLEXIDOME corner 9000 IR
VCN-9095
en
OSD Menu

Advertisement

Table of Contents
loading

Related Manuals for Bosch VCN-9095

Summary of Contents for Bosch VCN-9095

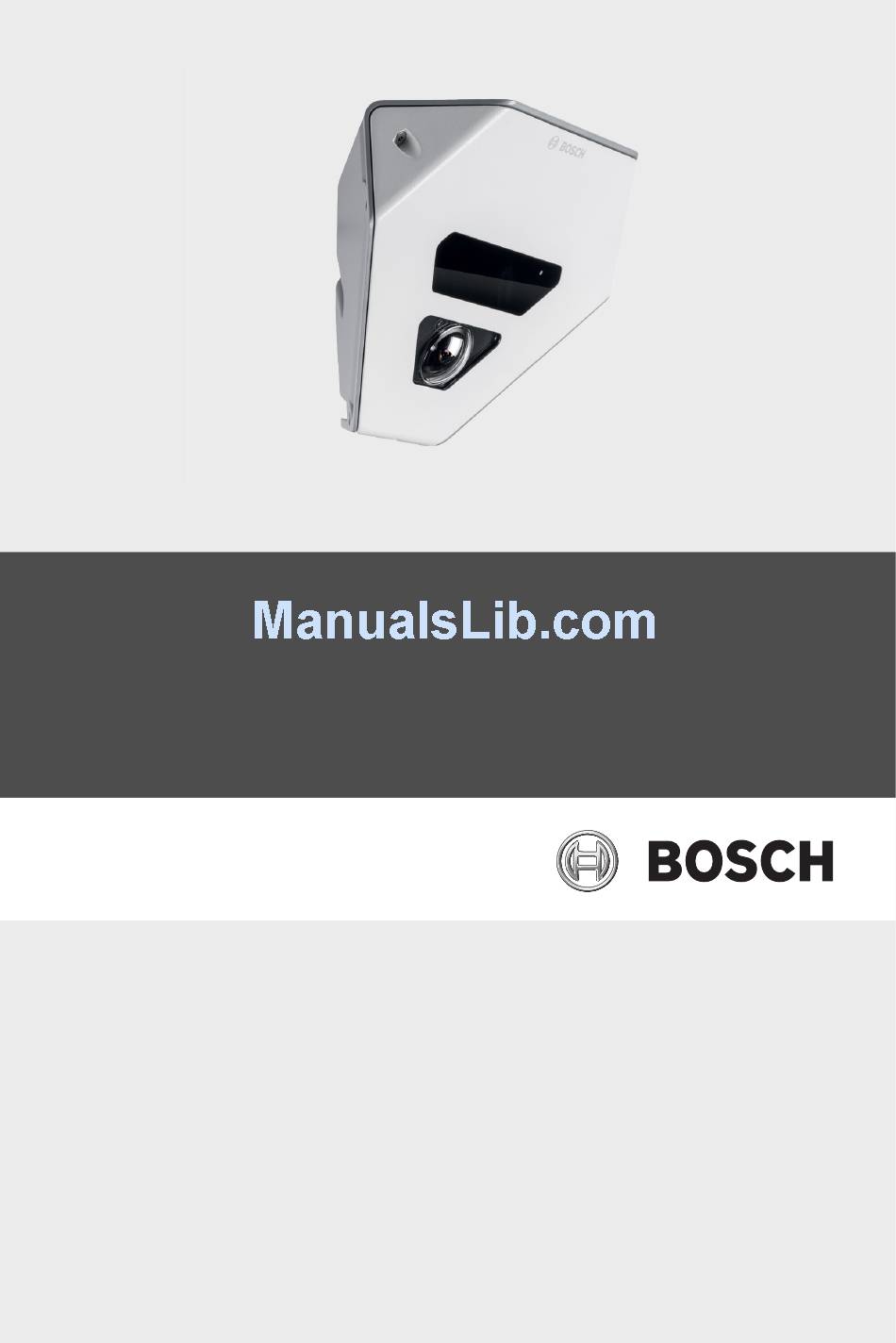

  • Page 1 FLEXIDOME corner 9000 IR VCN-9095 OSD Menu...

  • Page 3: Table Of Contents

    Table of Contents | Table of Contents Configuration Menus 1.1.1 Menu navigation 1.1.2 Top level menus Pre-defined modes Day/Night switching Camera control communication (Bilinx) Main menu structure 1.5.1 Mode submenu 1.5.2 ALC submenu 1.5.3 Day/Night submenu 1.5.4 Enhance / Dynamic Engine submenu 1.5.5 Color submenu 1.5.7...

  • Page 4: Configuration

    (center) for less than 1 second. The Main menu appears on the monitor. The Main menu allows you to select and set- up the picture enhancement functions. If you are not happy AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...
  • Page 5 The camera also has an Install menu in which the installation settings can be set. To access the Install menu, press the menu/select button (center) for longer than 2 seconds. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...

  • Page 6: Pre-Defined Modes

    Enhancements are set to reduce picture noise. Useful for conditional refresh DVR and IP storage systems because reducing noise reduces the amount of storage required. Vibrant This mode has enhanced contrast, sharpness and saturation. AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 7: Day/Night Switching

    Bilinx communications can only be disabled using the buttons on the camera. Disabled camera buttons When the Bilinx communications link is active, the buttons on the camera are disabled. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...

  • Page 8: Main Menu Structure

    Copy active Available Copies current mode settings to the mode mode mode number selected. numbers Mode Submenu Restores camera to the factory default Defaults settings. EXIT Returns to main menu. AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 9: Alc Submenu

    Fixed shutter 1/120 (NTSC), level of the scene is high enough. 1/250, In Fixed mode, selects shutter 1/500, speed. 1/1000, 1/2000, 1/4000, 1/10K, 1/100K Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...
  • Page 10 When active, some noise or spots may appear in the picture. This is normal camera behavior. It may also cause motion blur on moving objects. EXIT Returns to main menu. AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 11: Day/Night Submenu

    Motion - the camera avoids motion blur as long as the light level permits (it switches to monochrome earlier than it would with Color priority). Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...
  • Page 12 (mono) is switched Off in monochrome mode. On - the color burst remains active even in monochrome mode (required by some DVRs and IP encoders). EXIT Returns to main menu. AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 13: Enhance / Dynamic Engine Submenu

    A low (negative) value makes the picture less sharp. Increasing sharpness brings out more detail. Extra sharpness can enhance the details of license plates, facial features and the edges of certain surfaces. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...
  • Page 14 Use in ANPR/LPR applications to reduce headlight glare. (Test on-site to ensure that it does benefit the application and is not distracting for operators of the security system.) EXIT Returns to main menu. AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 15: Color Submenu

    Blue gain. Saturation -15 to +15 Adjusts the color saturation. -15 gives a monochrome image; 0 gives the default saturation; +15 gives the most saturation. EXIT Returns to main menu. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...

  • Page 16: Vmd Submenu

    Up, Down, Left, Right arrow keys. Pressing the Select key moves the flashing cursor to the opposite corner, which can now be moved. Pressing Select again freezes the area and exits the area menu. AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 17: Image Adjustment Submenu

    1.5.7 Image Adjustment submenu Item Selection Description Digital Zoom x1, x2, x4, x8, Select the zoom factor Off, On Select On to stabilize the image. EXIT Returns to main menu. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...

  • Page 18: Install Menu Structure

    Select to access ID submenu Privacy Submenu Sets up a masking area masking Flip Submenu Selects flip submenu Default ALL Submenu Returns all settings for all modes to factory defaults AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 19: Language Submenu

    1.6.1 Language submenu Item Selection Description Language English Displays the menus on the OSD in the Spanish chosen language. French German Portuguese Russian Simplified Chinese EXIT Returns to Install menu. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...

  • Page 20: Synchronization Submenu

    Vertical phase 0, 1, … 359 Adjusts the vertical phase offset (when in LINE LOCK mode and a valid power supply frequency is detected). EXIT Returns to Install menu. AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 21: Alarm I/O Submenu

    Filter toggle: - alarm output closes just before the IR filter starts moving and opens when video level has stabilized (2 to 3 seconds) EXIT Returns to Install menu. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...

  • Page 22: Connections Submenu

    Use Select to exit. Display ID pos. Off, Top left, Select the screen position of the Top right, camera ID. Bottom left, Bottom right AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...
  • Page 23 Mode ID pos. Off, Top left, Camera mode is displayed on the Top right, screen in the selected position. Bottom left, Bottom right EXIT Returns to Install menu. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...

  • Page 24: Privacy Masking Submenu

    Pressing Select again freezes the area and exits the area menu. 1.6.8 Flip submenu Item Selection Description Flip Selects the flip mode. horizontal Vertical Both EXIT Returns to Install menu. AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...

  • Page 25: Defaults Submenu

    Restores all settings of the six modes to their default (factory) values. Select YES then press the Menu/Select button to restore all values. When completed the message RESTORED! is shown. Bosch Security Systems OSD Menu AM18-Q0661 | v1.0 | 2013.06...
  • Page 26 | Configuration FLEXIDOME corner 9000 IR AM18-Q0661 | v1.0 | 2013.06 OSD Menu Bosch Security Systems...
  • Page 28 Bosch Security Systems www.boschsecurity.com © Bosch Security Systems , 2013...
