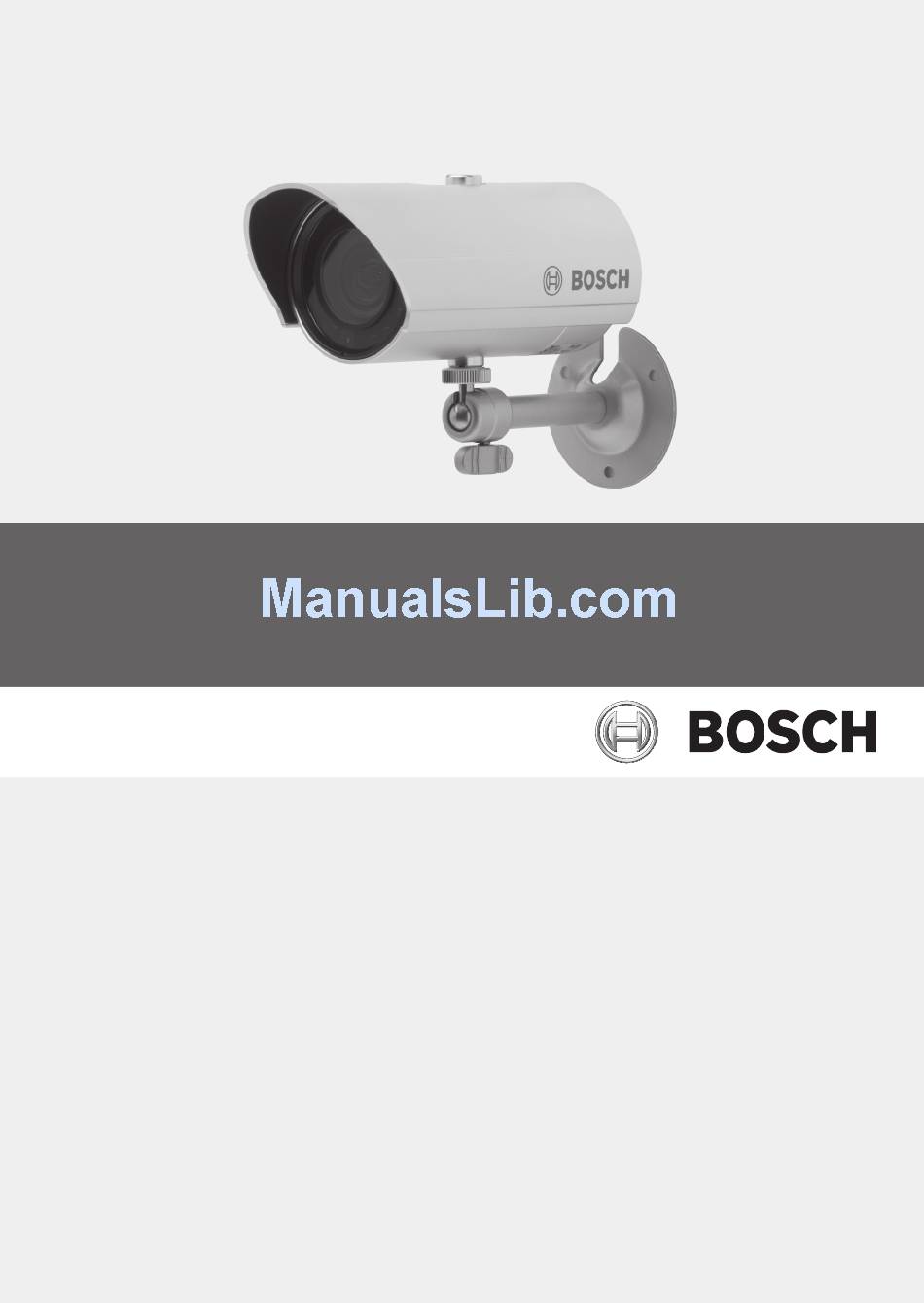

- Page 1 I nte gr ate d IR Bu l l et C ame r a WZ16 In stal l a t i o n Ma n u al...
-
Page 3: Table Of Contents
WZ16 Integrated IR Bullet Camera Table of Contents | en Table of Contents Safety Safety Precautions Important Safety Instructions Important Notices FCC & ICES compliance CSA certification Warranty / Limitation of Liability Introduction Parts Included Installation and Connection Configuration Adjusting the Zoom... -
Page 4: Safety
| Safety WZ16 Integrated IR Bullet Camera Safety Safety Precautions DANGER! High risk: This symbol indicates an imminentlyhazardous situation such as “Dangerous Voltage” inside the product. If not avoided, this will result in an electrical shock, serious bodily injury, or death. -
Page 5: Important Notices
Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. - Page 6 Connecting System ground to Safety ground may result in ground loops that can disrupt the CCTV system. Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information.
-
Page 7: Fcc & Ices Compliance
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected; – Consult your Bosch Service Center, dealer, or an experienced radio/TV technician for further advice. Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made. -
Page 8: Csa Certification
The Night Vision B&W & DSP Color CCD Camera has a three-year warranty. BOSCH Security Systems warrants that its products, at the time of shipment by BOSCH Security Systems, are free from defect in material or workmanship under normal use and service for the respective warranty periods specified in the applicable Price Schedule or as otherwise published. - Page 9 BOSCH Security Systems may elect, for any Product which is returned by Buyer during the applicable warranty period, or services for which timely notice of defect has been given by Buyer, and which are found by BOSCH Security Systems to be subject to adjustment under this warranty.
-
Page 10: Introduction
WZ16 Integrated IR Bullet Camera Introduction The WZ16 Integrated IR Bullet Camera is a night vision DSP Color CCD camera that uses a 1/3” CCD solid-state imaging device that provides superior performance. The camera can be installed easily in most indoor and outdoor locations. -
Page 11: Installation And Connection
WZ16 Integrated IR Bullet Camera Installation and Connection | en Installation and Connection DANGER! RISK OF ELECTRIC SHOCK! DO NOT OPEN THE UNIT! WARNING! To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the following installation instructions. - Page 12 Figure 3.2 Camera mounted (from bottom) on Wall Figure 3.3 Camera mounted (from top) on Wall 4. Connect the camera to the video monitor. Bosch recommends using a monitor with a CCTV quality 75Ω video impedance level. If your monitor is switched to high impedance, please adjust the monitor accordingly.
-
Page 13: Configuration
WZ16 Integrated IR Bullet Camera Configuration | en Configuration Follow the steps below to adjust the zoom and focus. Remove the lens cap before making adjustments, then replace it when you finish. Refer to the figure below. Figure 4.1 Lens adjustment... -
Page 14: Troubleshooting
| Troubleshooting WZ16 Integrated IR Bullet Camera Troubleshooting Troubleshooting Tips Before sending the camera out for repair, check the items below. If the problem persists after checking these items, contact your service center. - If no image appears, verify that: –... -
Page 15: Technical Specifications
WZ16 Integrated IR Bullet Camera Technical Specifications | en Technical Specifications Electrical Power 12 VDC (±10%) Max 700 mA 24 VAC (±10%) Max 7 W Surge Suppression Peak current: 2000 A (8/20 μs) Peak power: 5500 W (2 ms) Power Input... - Page 16 | Technical Specifications WZ16 Integrated IR Bullet Camera Dimensions Below are several dimensional drawings of the camera. Unit of measure is mm. Figure 6.1 Front view Number Description Photocell 18 LED Figure 6.2 ottom view Side view Figure 6.3 | 1.0 | 2010.12...
- Page 17 WZ16 Integrated IR Bullet Camera Technical Specifications | en Mounting bracket Figure 6.4 Bosch Security Systems, Inc. Installation Manual | 1.0 | 2010.12...
- Page 20 Bosch Security Systems, Inc. 850 Greenfield Road Lancaster, PA 17601 U.S.A. www.boschsecurity.com © Bosch Security Systems, Inc., 2011...
