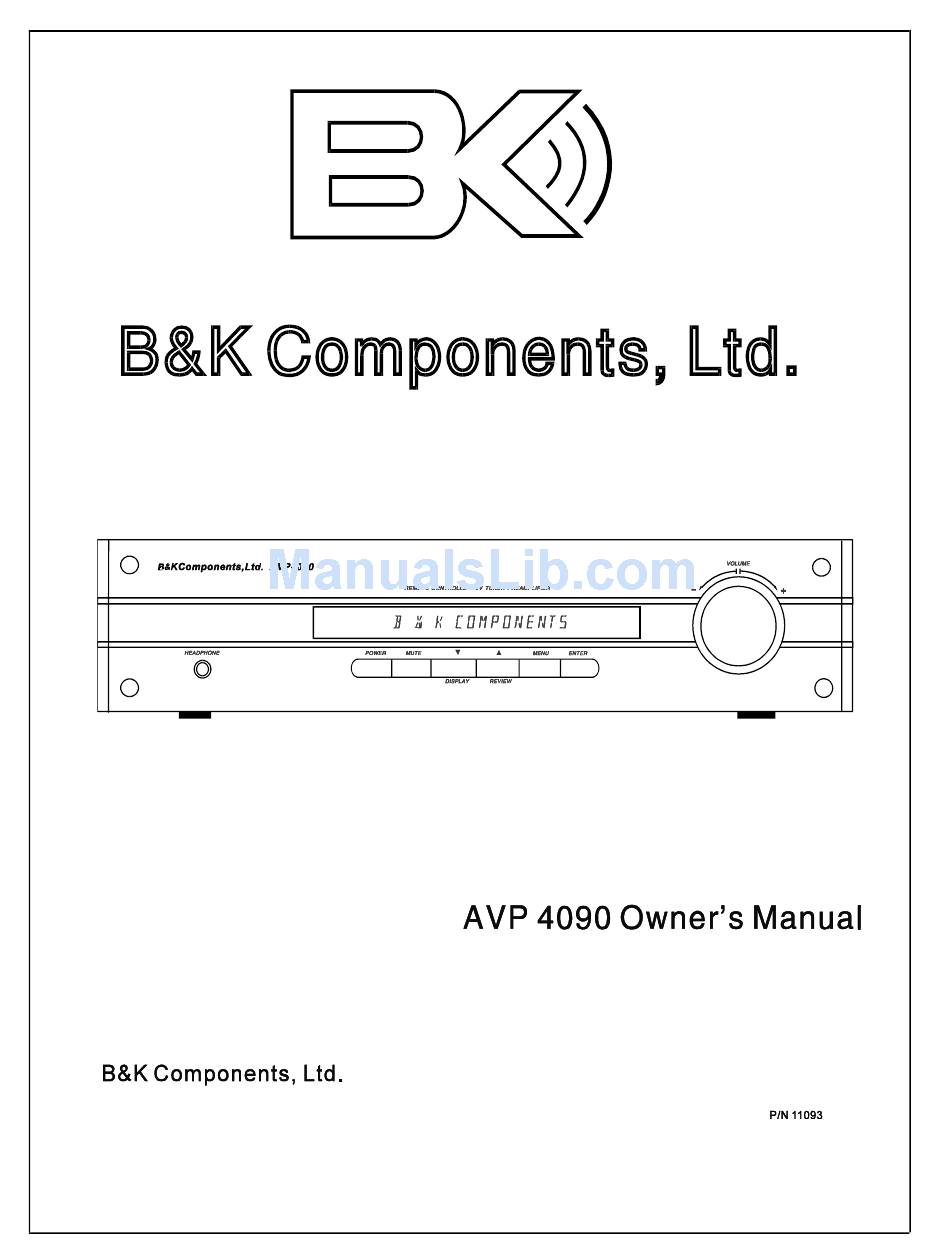

B&K AVP4090 Owner's Manual

Avp series preamplifier
Hide thumbs Also See for AVP4090:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for B&K AVP4090

Summary of Contents for B&K AVP4090

  • Page 2 Acknowledgments Manufactured under license from Dolby Laboratories. “Dolby”,”Pro Logic”, “AC3", and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. © 1992-1997 Dolby Laboratories, Inc. All ® rights reserved. DTS is a registered trademark of Digital Theater Systems, ®...

  • Page 3: Table Of Contents

    Table of Contents Safety precautions page 3 Features page 4 Display page 5,7 Front panel view page 6 Front panel description page 6 - 7 Rear panel view page 8 Rear panel description page 8 - 11 Remote control page 12 - 13 Setup page 14 Factory reset...
  • Page 4 Rename preset page 28 Tuner functions page 30 AM/FM Band page 30 Tuning/Seek page 30 Direct Frequency Input page 30 FM Stereo/Mono page 31 Save a station preset page 31 Recall a station preset page 32 Auto program station presets page 33 Advanced operations page 34 - 36...

  • Page 5: Safety Precautions

    Keep outdoor antenna away from power lines. Turn preamplifier ‘off’ when plugging in or unplugging source cables!!! The AVP4090 is equipped with raised feet so that continuous ventilation can be maintained. They also help to reduce acoustic feedback into the preamplifier and provide a measure of protection against scratching any surface the unit might be resting on.

  • Page 6: Features

    Features Overview Your new AVP series preamplifier from B & K Components, Ltd., is a versatile audio/video control center with an internal AM/FM tuner. The AVP preamplifiers are designed to not only sound sensational, but also to be an attractive, easy-to-use addition to your audio/video system.

  • Page 7: Display

    A/V presets - Your AVP comes equipped with built in preset memories that when selected set up your AVP for you. You can also make changes to settings (such as volume and balance levels, etc.) and save your preferences in your own custom preset.

  • Page 8: Front Panel View

    Front panel view The figure below shows the front panel controls and features. Input selection or changes to other settings using the front panel controls requires selecting the appropriate MENU options and using the y or x button to change the settings. 6.

  • Page 9: Menu Button

    4. Mute button - Suppresses sound output from the system. The display will show a ‘-’ at the right side of the display. 5. Display / O button - Lets you turn the front panel display on or off. When used in combination with MENU, it will change that options setting.

  • Page 10: Rear Panel View

    Rear panel view The AVP back panel is organized into groups of inputs and outputs for audio and video as shown below. Power switch Analog audio inputs AC fuse holder 10. AM antenna input AC input receptacle 11. FM antenna input Video outputs 12.

  • Page 11: Video Outputs

    PLEASE NOTE: The DIGITAL inputs on the AVP4090 will only accept an Industry Standard Consumer Audio DIGITAL input signal. (See setup procedure in this manual) When you connect a Dolby Digital source to an AVP with Dolby Digital, the signal must be an Industry Standard Consumer Audio DIGITAL signal into the AVP4090.

  • Page 12: Tape Loop

    10. AM antenna input - Connection for the AM antenna. 75 Ohms. 11. FM antenna input - Connection for the FM antenna. 75 Ohms. 12. Tape Loop - Connections for the audio of a tape deck. TAPE OUT- Provides a fixed level, buffered audio output for sending to a tape player.

  • Page 13: Surround Outputs

    15. IR IN - Accepts input from external IR receptors. Connect your IR repeater to IR IN to control the AVP preamplifier when the front IR receiver is blocked (by cabinet door). 16. Surround outputs - Outputs for your surround system. These variable level outputs are provided with the Surround Sound Processor option for sending signal to the power amplifiers as follows.

  • Page 14: Remote Control

    Remote control The B & K A/V system remote control is specially designed to streamline functions. Although you can choose to use a universal remote, we think you will agree that the remote shown below is simple and easy to learn. Most buttons on the remote control are duplicated through the front panel.
  • Page 15 Button: Function: Confirms a selection; when used while a menu option is displayed, displays current setting Lets you specify “bank A” when recalling or saving an A/V preset PRE (PRESET) Not used (for future applications) NUMBERS 0-9 Lets you select an A/V preset when followed by ENTER;...

  • Page 16: Setup

    Setup It’s tempting to just plug in your new AVP and have great sound pour out. Before you do that, take a few minutes to plan out how you want the preamplifier to fit into your audio/video system. If you haven’t already done so, ask yourself the following questions: What source components do I want to connect to my preamplifier? (CD, VCR, etc.)

  • Page 17: Factory Reset

    and attach it to the cable near both ends. This makes it easy to identify. To ensure maximum safety, keep all cables out of high traffic areas (hallways or doorways) and away from equipment that radiates power, including amplifiers, power cords, heaters, etc. If you might expand your audio/video system later, keep these ideas in mind as you plan current cable runs.

  • Page 18: Making The Connection

    Making the connection Take a look at the back panel of the AVP. You will notice that the RCA-type audio input and output connectors are identified by colors. Red for right channel and white for the left channel audio. Composite video input and output connectors are identified by yellow.

  • Page 19: Video Monitor

    Video monitor To add a video monitor to the system. Attach one end of the composite video interconnect cable to the video input on the monitor, then attach the other end to the yellow video output on the AVP labeled MON1 or MON2 (both MON1 and MON2 perform the same function). VCR connection The procedure listed is for connecting a VCR player to the V1 analog input on the AVP.

  • Page 20: Digital

    Attach one end of the audio interconnect cable to the right audio input on the Tape deck, then attach the other end to the red right TAPE OUT on the AVP. Digital connection The AVP preamplifier is equipped with six coaxial digital inputs. The digital inputs will accept either a standard PCM digital input or a digital Dolby Digital input.

  • Page 21: Surround Setup

    Surround setup Always set up and calibrate your speakers immediately after connecting your preamplifier to your system. You need to set up the speakers to achieve the best, most accurate performance from your preamplifier. This is important because the preamplifier needs to “know” your speaker configuration to control your current system. Any time you change your speaker configuration, you should perform setup and then calibration on your preamplifier.

  • Page 22: Bass Management

    Channel Mode/Option Description No subwoofer. Sends all bass frequencies to the front left and right channels including the LFE channel. Removes SW BASS MENU. Bass Management Note: LFE = Low Frequency Effects channel (or .1 channel) Option/mode Description Bass Normal LFE on.

  • Page 23: Surround Modes

    Surround mode explanation SURROUND MODES CHANNELS DELAY NOTES † ON † RANGE DOLBY SURROUND LF,RF,C,LR,RR 0 - 15 ms AC-3 Mode-All speakers are full range. Dolby Pro Logic- Rear left and 15 - 30 ms right are mono surround and sent through the delay.

  • Page 24: Speaker Calibration

    Speaker calibration Always calibrate your speakers after you have performed setup. Surround calibration is different from adjusting balance levels. When you calibrate, you equalize volume levels on all channels with a final goal of ensuring that the volume is the same on each one. When you adjust balance, you turn the volume up or down on specific channels because the sound you are hearing seems either too loud or too soft.
  • Page 25 Press ENTER, the display shows:   You can toggle between the LARGE, SMALL, and NONE modes by pressing x or y. Press ENTER, the display shows:    You can toggle between YES and NO modes by pressing x or y. Press ENTER, the display shows:   You can toggle between BASS NORMAL and BASS LFE OFF modes by...
  • Page 26 Press ENTER, the display shows:     You can toggle between OFF, ON, AC-3, and DTS modes by pressing x or y. This holds true for the CD, V1, V2, TV, and TNR digital settings. Digital off- Selects the corresponding AUDIO L/R analog input for Pro Logic Surround Processing.
  • Page 27 Press ENTER:   . Press ENTER:   . Press ENTER:  . Press ENTER: )!  . Press ENTER:   . Press ENTER:   . The surround calibration is next. Adjust the levels with the MASTER VOLUME +/- buttons.

  • Page 28: Using Presets

    Press ENTER, the display shows:    You have completed the setup procedure. Remember, you have to perform the calibration procedure every time you change your speaker configuration. Using presets There are 20 A/V presets provided. Presets “0" through “9" are selected using the numeric buttons on the remote (0-9).

  • Page 29: Save Preset

    Save a preset A preset will save the following information: Master volume, selected input, input mode (analog, PCM, Dolby Digital, or DTS), surround mode, rear volume, subwoofer volume, center channel volume, delay setting, and display status of on or off. To save a preset, press the SAVE button, followed by the preset number you wish to overwrite (0-9 or A0-A9), then ENTER.

  • Page 30: Rename Preset

    Rename a preset Once you save your own custom preset, you can rename it to make it easy to remember for the next time you want to use those same settings. For example, suppose you saved your favorite settings for watching a movie in A/V preset 2, and you’d like to rename the preset to “WATCH MOVIE”.

  • Page 31: Tuner Functions

    Tuner functions After selecting TUNER, the internal AM/FM tuner features are controlled as follows: For Controlling: Use Buttons: Description: AM/FM Band BAND Alternates between AM and FM bands. Tuning/Seek TUNE / Adjusts tuning frequency. Direct Frequency Entry FREQ then number keypad (0-9) To directly enter a station frequency.

  • Page 32: Fm Stereo/Mono

    FM Stereo/Mono- FM stereo is automatically selected when tuning a station. If you choose to manually set it, press MENU until the display shows:  ( Now press x to change mode. You can toggle from stereo to mono by repeatedly pressing the x button.

  • Page 33: Recall A Station Preset

    your station. The display should read (assuming you picked preset 01):     The display should now look like this:   '$.'  You have now saved the station into the preset 01. There are two tuner A/V presets you can also save. These presets are the A/V preset numbers 5 and A5.
  • Page 34 Press MENU until the display shows:     Then press ENTER. The display will read:    + Press ENTER again to confirm. The AVP will now search the band and program the first 20 strongest stations it receives into the 20 preset memories for that band.

  • Page 35: Advanced Operations

    Advanced operations Star (7) operations The AVP has incorporated some new ways to change the mode of the source inputs. In the standard SETUP menu, the digital modes of VLD, CD ,V1 ,V2 ,TV-V3, and TUNER are set globally and are not affected as presets are recalled. Now with the U(star) operations described below, you can override the setup mode to another digital input mode.
  • Page 36 The new setup will be saved for preset 1. You can save digital off for preset 1 and digital on for preset A1 if you wish. This would allow you to have two different sources into the CD inputs, one digital and one analog. These star operations do not change the digital settings in the SETUP menu.

  • Page 37: Troubleshooting

    You can now program the preamplifier to your desired setup. This is the same procedure as shown on page 15. Troubleshooting PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION No sound, display will not Power cord not plugged in. Reconnect power cord. light Power off at AC source.

  • Page 38: Specifications

    Specifications Audio Specifications Frequency Response (+3 dB): 5 Hz - 150 kHz Input Sensitivity: 63 mV Maximum Output Level: 9 V R.M.S. Total Harmonic Distortion: Less than .02% Unprocessed Less than .05% Front Less than .12% Rear Less than .05% Subwoofer Signal to Noise Ratio: 89 dB, CCIR 2k Weighted, max level...

  • Page 39: Care And Cleaning

    AM Section * Frequency Range: 520 - 1620 kHz in 10 kHz steps Total Harmonic Distortion: Less than 0.3% Sensitivity: 28 dBf Selectivity: 30 dB Antenna Input Impedance 75 Ohms * USA and Canada versions. Other versions have 50 sec De-emphasis with 50 kHz tuning steps for FM and 9 kHz tuning steps for Digital Inputs Line Voltage 120/220/240 VAC switchable...

  • Page 40: Limited Warranty

    Limited Warranty B&K Components Ltd., referred to herein as B&K, warrants your B&K equipment against all defects in material and workmanship for a period of five years from the date of purchase. This warranty applies only to the original purchaser and only to equipment in normal residential use and service. Defective equipment must be returned to B&K, prepaid, accompanied by sufficient payment to cover the cost of return shipping and handling, and will be repaired or replaced at the discretion of B&K whose decision as to the method of reparation will be final.
