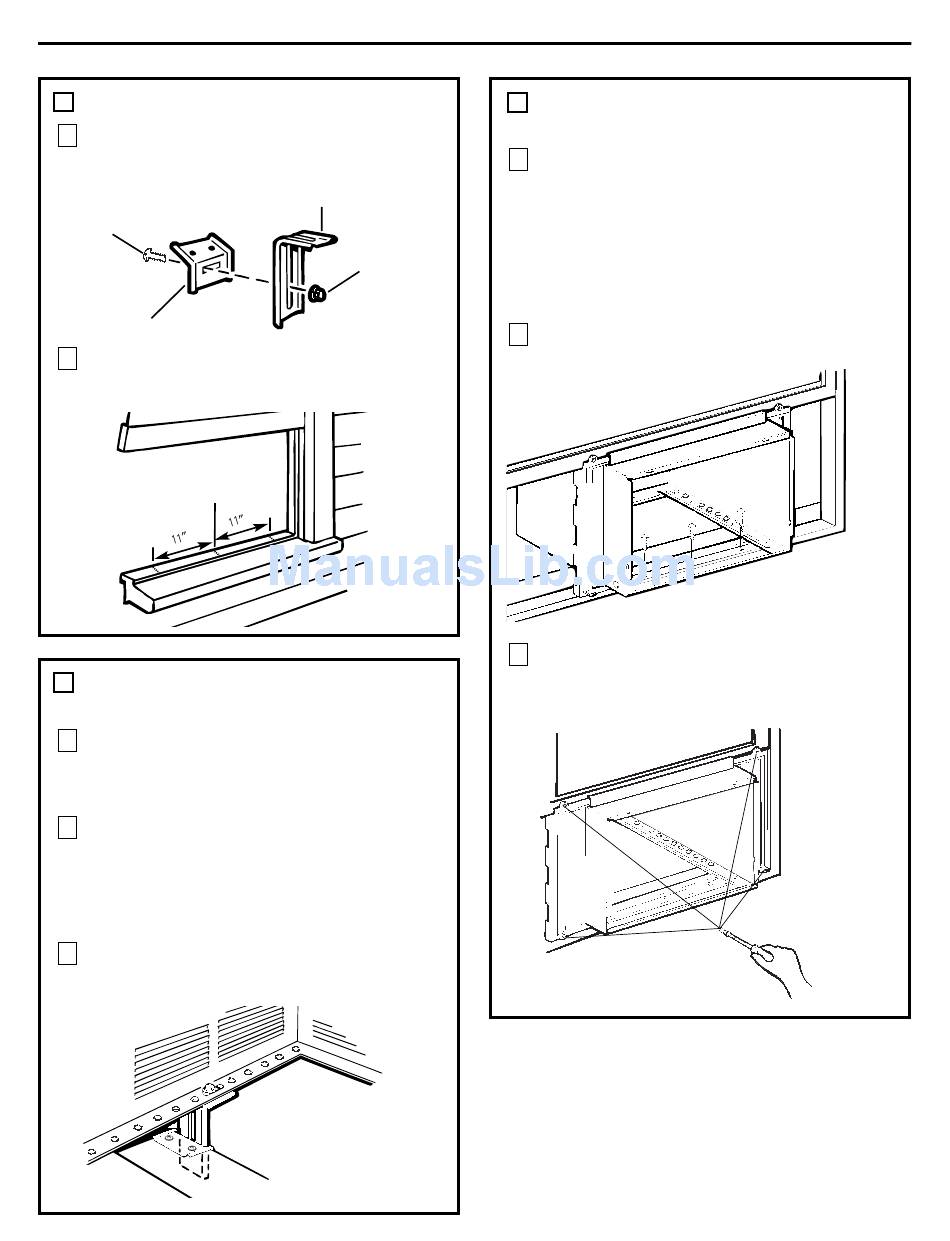

PREPARE THE WINDOW
5
Loosely attach the sill brackets to the
A
support brackets using the 2 carriage bolts
and 2 lock nuts.
Carriage
bolt
Sill bracket
Open the window and mark the centerline
B
of the window stool. Measure and mark 11"
to the left and right of the centerline.
Centerline
INSTALL THE CASE IN THE
6
WINDOW
Align the inside edge of the sill brackets
A
with the 11" marks from the centerline and
attach them to the window sill using 2 type
B screws on each side.
Carefully place the case on the window
B
stool aligning the center front on the
bottom with the centerline marked on the
window stool. Close the window, making
sure the window sash is behind the top
mounting rail.
Using the larger diameter hole in the case,
C
attach the brackets to the case using two
type D screws and 2 lock nuts on each side.
Installation Instructions
Support bracket
Lock nut
INSTALL THE CASE IN THE
6
WINDOW (CONT.)
Adjust the carriage bolts and the lock nuts
D
in each support so that the case is installed
with a slight tilt to the outside. Use a level;
about 1/3 bubble will be the correct case
slant to the outside. Tighten the bolts.
CAUTION: DO NOT drill a hole in the base pan.
The unit is designed to operate with
approximately 1/2 " of water in the base pan.
Secure the case to the window stool by
E
using 3 type B screws.
Pull the accordion panels to each window
F
sash track. Attach them on each side to the
window sash and the window stool using
4 type C screws.
11
