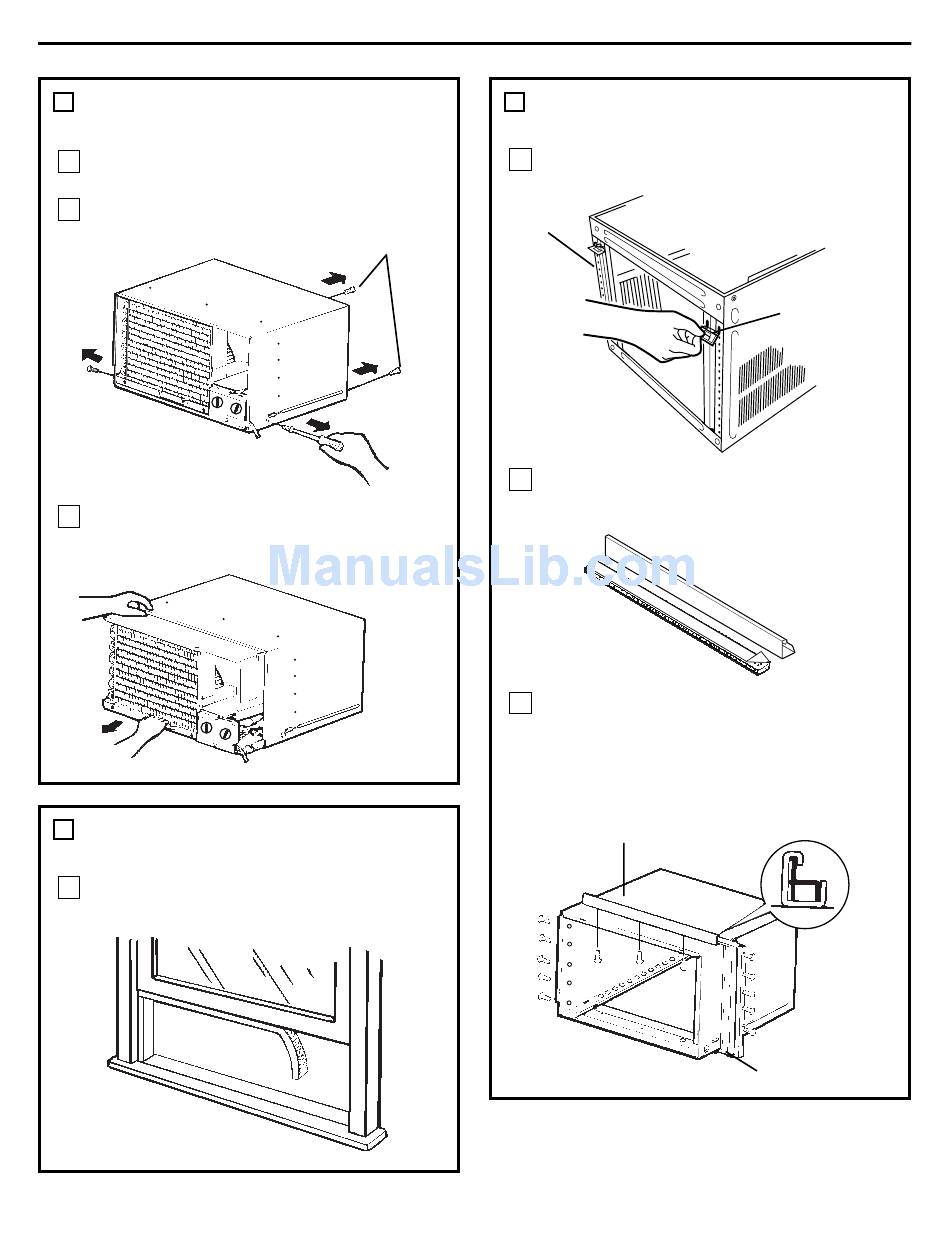

REMOVE THE AIR CONDITIONER
3
FROM THE CASE
Remove the 2 shipping screws from the
A
back of the case.
Remove the 2 screws on each side of the
B
case. Keep these for later use.
Slide the air conditioner from the case by
C
gripping the base pan handle and pulling
forward while bracing the case
PREPARE THE WINDOW AND
4
THE CASE
Cut the window sash seal to the proper
A
length. Peel off the backing and attach the
seal to the underside of the window sash.
Installation Instructions
Shipping screws
.
10
PREPARE THE WINDOW AND
4
THE CASE (CONT.)
Carefully insert the plastic frame guides
B
into the bottom of the case on each side.
Bottom of case
Remove the backing from the top mounting
C
rail seal strip and attach it to the bottom of
the top mounting rail.
Install the top mounting rail with 3 type A
D
screws on the inside of the case. Insert the
frames for the accordion panels into the top
mounting rail and the frame guides. Attach
the accordion panels to the side of the case
using 5 type A screws on each side.
Top mounting rail
Frame guide
Frame guides
