Carrier 25HCD3 Product Data

Carrier 25HCD3 Product Data

Comfort 13 heat pump with puron refrigerant 1-1/2 to 5 nominal tons

Advertisement

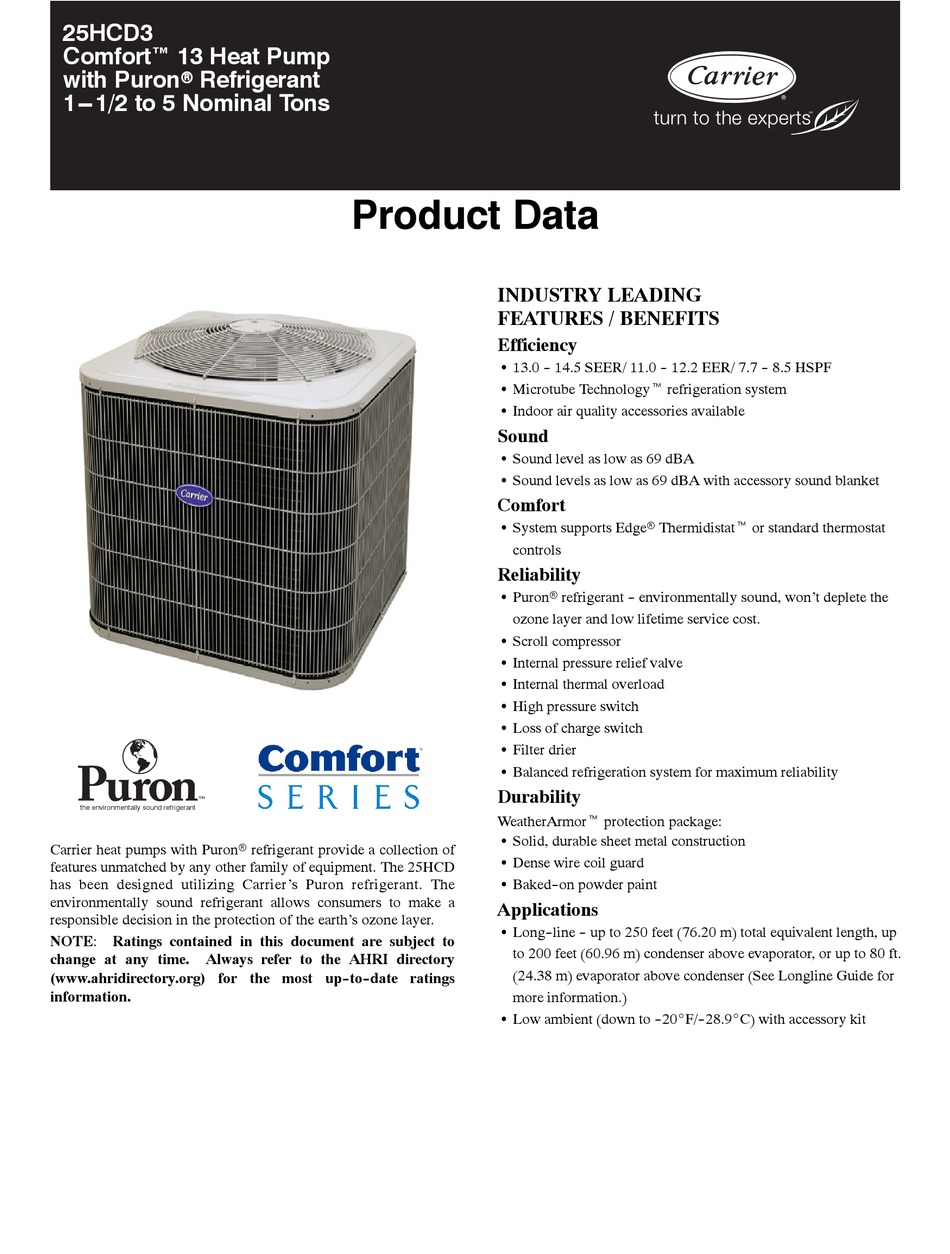

25HCD3
Comfort™ 13 Heat Pump
with Puronr Refrigerant
1---1/2 to 5 Nominal Tons
the environmentally sound refrigerant
Carrier heat pumps with Puronr refrigerant provide a collection of
features unmatched by any other family of equipment. The 25HCD
has been designed utilizing Carrier's Puron refrigerant. The
environmentally sound refrigerant allows consumers to make a
responsible decision in the protection of the earth's ozone layer.
NOTE: Ratings contained in this document are subject to
change at any time.
Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S 13.0 - - 14.5 SEER/ 11.0 - - 12.2 EER/ 7.7 - - 8.5 HSPF
S Microtube Technologyt refrigeration system
S Indoor air quality accessories available
Sound
S Sound level as low as 69 dBA
S Sound levels as low as 69 dBA with accessory sound blanket
Comfort
S System supports Edger Thermidistatt or standard thermostat
controls
Reliability
S Puronr refrigerant - - environmentally sound, won't deplete the
ozone layer and low lifetime service cost.
S Scroll compressor
S Internal pressure relief valve
S Internal thermal overload
S High pressure switch
S Loss of charge switch
S Filter drier
S Balanced refrigeration system for maximum reliability
Durability
WeatherArmort protection package:
S Solid, durable sheet metal construction
S Dense wire coil guard
S Baked- -on powder paint
Applications
S Long- -line - - up to 250 feet (76.20 m) total equivalent length, up
to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft.
(24.38 m) evaporator above condenser (See Longline Guide for
more information.)
S Low ambient (down to - -20_F/- -28.9_C) with accessory kit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25HCD3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Carrier 25HCD3

  • Page 1: Product Data

    WeatherArmort protection package: S Solid, durable sheet metal construction Carrier heat pumps with Puronr refrigerant provide a collection of S Dense wire coil guard features unmatched by any other family of equipment. The 25HCD has been designed utilizing Carrier’s Puron refrigerant. The...
  • Page 2: Standard Features

    MODEL NUMBER NOMENCLATURE Product Product Major Cooling Grille Minor Tier SEER Open Open Voltage Series Family Series Capacity Variations Series 3=208/230 ---1 A=Dense Grille 0=Not 0=Not 25 = HP H = RES HP C=Comfort D = Puron 3=13 SEER 5=208/230 ---3 0, 1, 2...
  • Page 3: Physical Data

    PHYSICAL DATA 36--- 31, 50, 48--- 31, 50, UNIT SIZE SERIES 18--- 30 24--- 30 30--- 30, 50 42--- 31, 50 60--- 30, 50, 60 Operating Weight lb (kg) (54.1) (56.4) (67.7) (76.7) (81.6) (94.3) (113.4) Shipping Weight lb (kg) (62.3) (64.5) (77.3)
  • Page 4: Refrigerant Piping Length Limitations

    REFRIGERANT PIPING LENGTH LIMITATIONS Maximum Line Lengths: The maximum allowable total equivalent length for heat pumps varies depending on the vertical separation. See the tables below for allowable lengths depending on whether the outdoor unit is on the same level, above or below the outdoor unit. Maximum Line Lengths for Heat Pump Applications MAXIMUM ACTUAL LENGTH MAXIMUM EQUIVALENT LENGTH{...
  • Page 5: Accessories

    THERMOSTAT ACCESSORIES PART NUMBER BRIEF DESCRIPTION THERMOSTATS USED WITH TSTATXXCNV10‡ Thermostat Conversion Kit (4 to 5 wire) --- 10 pack All Carrier branded thermostats TX ---LBP01 Large Decorative Backplate TP---Pxx, TP---Nxx, TC ---Pxx TX ---MBP01 Medium Decorative Backplate TC ---Nxx, TB---Pxx...
  • Page 6: Accessory Usage Guideline

    ACCESSORY USAGE GUIDELINE REQUIRED FOR LOW --- AMBIENT REQUIRED FOR REQUIRED FOR Accessory COOLING APPLICATIONS SEA COAST APPLICATIONS LONG LINE APPLICATIONS* (Below 55F / 12.8C) (Within 2 miles / 3.22 km) Accumulator Standard Standard Standard Ball Bearing Fan Motor Yes{ Compressor Start Assist Capacitor and Relay Crankcase Heater...
  • Page 7 Accessory Description and Usage (Listed Alphabetically) - - CONTINUED 10. Outdoor Air Temperature Sensor 14. Sound Hood Designed for use with Carrier Thermostats listed in this Wraparound sound reducing cover for the compressor. Reduces the publication. This device enables the thermostat to display the sound level by about 2 dBA.
  • Page 8: Electrical Data

    ELECTRICAL DATA FUSE** OPER VOLTS* COMPR WIRE WIRE LENGTH LENGTH UNIT or CKT V/PH SIZE† SIZE† ft (m)‡ ft (m)‡ SIZE 60° C 75° C 60° C 75° C AMPS 18--- 30 48.0 11.8 66 (20.1) 62 (18.9) 24--- 30 58.3 12.8 0.77...
  • Page 11 MBTUH CAPACITY, HEATING INTEGRATED UNIT LOSS, HEAT BUILDING...
  • Page 12 Wall...
  • Page 13: Tested Ahri* Combination Ratings

    For AHRI ratings certificates, please refer to the AHRI directory www.ahridirectory.org Additional ratings and system combinations can be accessed via the Carrier database at: www.MyCarrierRatings.com For performance data at specific application &/or design conditions with various indoor unit combinations, the equipment performance calculator can be accessed at : http://rpmob.wrightsoft.com/...
  • Page 22: Guide Specifications General

    GUIDE SPECIFICATIONS AIR- -COOLED, SPLIT- -SYSTEM HEAT PUMP 25HCD3 GENERAL 1- -1/2 TO 5 NOMINAL TONS System Description Fans Outdoor- -mounted, air- -cooled, split- -system heat pump unit — Condenser fan will be direct- -drive propeller type, suitable for ground or rooftop installation. Unit consists of a discharging air upward.
  • Page 23 SYSTEM DESIGN SUMMARY 1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01- -in. wc. 2. Minimum outdoor operating air temperature without low- -ambient operation accessory is 55_F (12.8_C). 3.
  • Page 24 Catalog No: 25HCD3---1PD Copyright 2013 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Edition Date: 03/13 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations. Replaces: New...
