Summary of Contents for Twin Eagles TESB132F-B

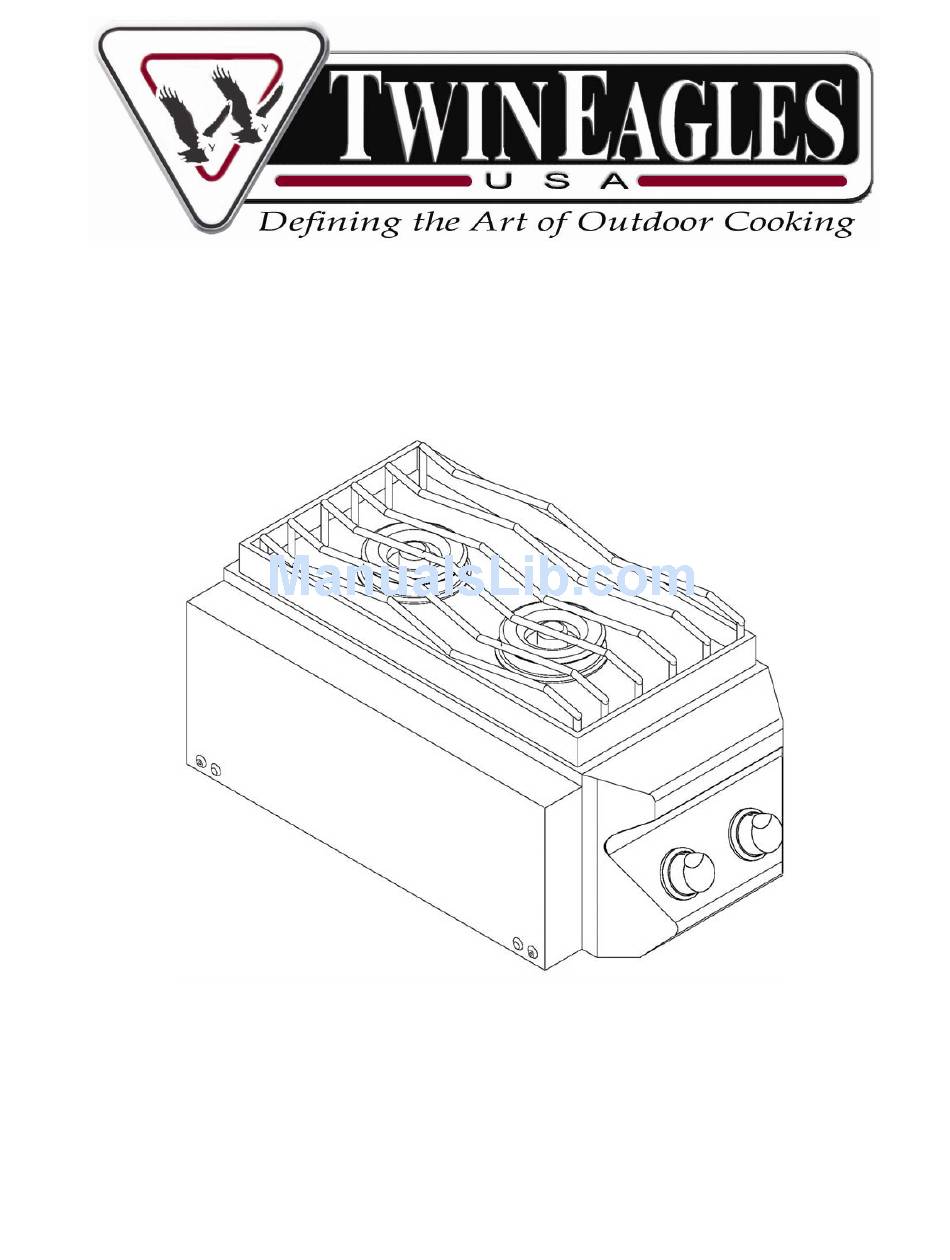

- Page 1 REESTANDING URNERS USE & CARE MANUAL Model: TESB132F-B P/N: 18528D 06/13...
-
Page 2: For Your Record
FOR YOUR RECORD IMPORTANT: Retain original proof of purchase to establish warranty period. Please record the following information and refer to this information when contacting the company or an authorized service agent. This information is found on the rating/ data plate located on the inside back of the unit. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING! Read this manual carefully and completely before using your unit to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. F O R Y O U R S A F E T Y A V E R T I S S E M E N T If you smell gas:... -
Page 4: General Safety Requirements
GENERAL SAFETY REQUIREMENTS: 1. The installation of this appliance must conform with local codes or, in the absence of local codes, either the National Fuel Gas Code, ANZI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code. 2. - Page 5 FREESTANDING INSTALLATION INSTRUCTIONS 1. Remove the front side shelf bracket (See fig. 1) by removing the flat head screws allowing you to remove the side shelf from the base cabinet. Save the screws 2. Install the front side shelf bracket by securing it with the saved flat head screws. Fig.
-
Page 6: Leak Test
LEAK TEST CAUTION BEFORE TESTING Finding and/or fixing a gas leak is NOT a “DO-IT-YOURSELF” procedure. NEVER USE THE SIDE BURNER WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS. WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME COULD RESULT IN A FIRE, EXPLOSION AND BODILY HARM. -
Page 7: Cleaning And Maintenance
OPERATING INSTRUCTIONS –SIDE BURNER 1. Make sure all knobs are in the “OFF” position. 2. Turn “on” the gas at source. Caution: If you smell gas, shut off gas supply and call for service. 3. Before lighting, remove the side burner cover or any cooking utensils from the burner grate. 4. -
Page 8: Exploded View
EXPLODED VIEW... -
Page 9: Service Parts List
SERVICE PARTS LIST Number Part Number Description TESB132F-BL TESB132F-BN S20256 Top Cover S20255Y Wind Guard S13806 S-grates S13309 Enameled Cap S13308 Enameled Ring S13307 Aluminum Bowl S13306 Base with Electrode, LP S13320 Base with Electrode, NG S21798-2Y Front Panel, 2-Burner S16192Y LED Holder S16272... - Page 10 TWIN EAGLES WARRANTY ONE-YEAR FULL WARRANTY: Twin Eagles warrants the outdoor Side Burners and all of their component parts, to be free from defects in materials and workmanship under normal residential use for a period of one year from the original date of purchase. Twin Eagles will repair or replace, at its option, any part, which fail or is found to be defective during the warranty period, at no cost to the original purchaser.
-
Page 11: How To Obtain Service
HOW TO OBTAIN SERVICE For service, please contact your TWIN EAGLES dealer or call TWIN EAGLES direct at (800) 789- 2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13231 East 166 Street Cerritos, CA 90703 Visit us at www.twineaglesbbq.com Please provide:... - Page 12 Here Place Postage Here Customer Service ATTN: Warranty Department 13231 East 166 Street Cerritos, CA 90703 Fax no. (562) 802-3391...
