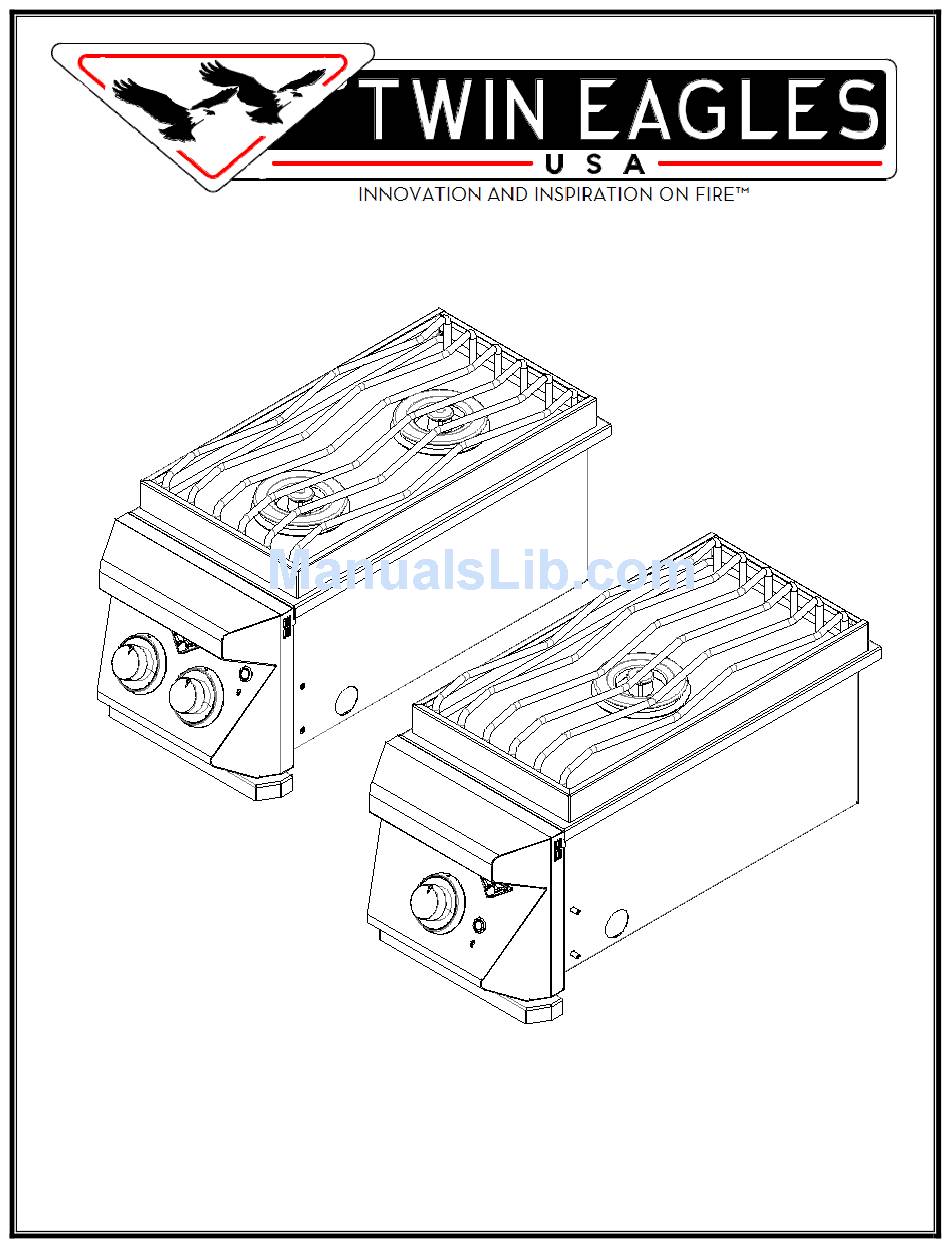

- Page 1 URNERS INSTALLATION, USE & CARE MANUAL MODELS: TESB131-C P/N: 19203A TESB132-C...
- Page 2 At TWIN EAGLES, we want you to enjoy grilling and spending time together as much as we do – making memories that linger long after the grill cools down.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING! Read this manual carefully and completely before using your side burner to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. D A N G E R D A N G E R If you smell gas: S’il y a une odeur de gaz:... - Page 4 • Check flexible hoses for cuts and wear that may affect the safety before each use. • The pressure regulator and hose assembly supplied with the Twin Eagles Side Burner must be used. Replacement pressure regulators and hose assemblies must be those specified by Twin Eagles.
-
Page 5: Table Of Contents
TABLE OF CONTENTS GAS REQUIREMENTS o GAS SAFETY REQUIRMENT…………………………………………………………………………… o LP GAS HOOK-UP………………………………………………………………………………………... o GAS REGULATOR CHECK / CONVERSION………………………………………………………….. o NATURAL GAS INSTALLATION………………………………………………………………………. o LEAK TEST…………………………………………….…………………………………………………. LOCATING THE SIDE BURNER o CLEARANCE TO COMBUSTIBLE CONSTRUCTION………………………………………………… o CLEARANCE TO NONCOMBUSTIBLE CONSTRUCTION…………………………………………... o CONNECTION TO GRILL/BATTERY INSTALLATION………………………………………………. -
Page 6: Gas Safety Requirment
GAS SAFETY REQUIREMENTS Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either natural gas (NG) or Liquid Propane (LP) gas and make sure that the marking on the data plate (rating plate) matches the gas being supplied to the side burner. -
Page 7: Lp Gas Hook-Up
LP GAS HOOK-UP Install the factory-supplied hose and regulator assembly as shown. Connect the ” flare end of the hose to the manifold coupling using a ¾” open wrench. Do not apply pipe sealant to the ” flare connection. Connect the regulator to the LP cylinder hand tighten it, do not use a wrench. Check for leaks using soapy water solution. -
Page 8: Gas Regulator Check / Conversion
GAS REGULATOR CHECK / CONVERSION If the side burner is factory built for natural gas, the regulator supplied is set for 4” water column. The regulator is convertible to 11” water column for system LP application. Make sure that the regulator is set for the correct gas type. -
Page 9: Natural Gas Installation
NATURAL GAS INSTALLATION A typical natural gas installation is shown below. Make sure that the factory-supplied regulator is used and installed with the arrow mark on the regulator pointing towards the side burner. Use only pipe sealants that are approved for use with natural and LP gases. An installer-supplied gas shutoff valve must be installed in an accessible location. -
Page 10: Leak Test
• Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by Twin Eagles. LEAK TEST 1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half water. -
Page 11: Locating The Side Burner
LOCATING THE SIDE BURNER This gas appliance is designed and certified for outdoor use only. Do not locate this side burner under overhead combustible surfaces. Do not operate the side burner inside a building, garage, recreation vehicle or any enclosed area. When choosing an area, consider exposure to wind, proximity to traffic paths and length of gas supply line. -
Page 12: Cut-Out Dimensions
CUT-OUT DIMENSIONS TYPICAL SIDE BURNER INSTALLATION INTO NON- COMBUSTIBLE CONSTRUCTION... -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS HOW TO LIGHT 1. Make sure all knobs are in the “OFF” position. If using a 2-burner Side Burner the right knob is for the front burner and the left knob is for the back burner. 2. Turn “on” the gas at source. Caution: If you smell gas, shut off gas supply and call for service. 3. -
Page 14: Stainless Steel
However, the conditions outlined above, along with neglect, can lead to surface corrosion or rust. It is recommended that your TWIN EAGLES products be kept dry and covered when not in use. This is even more important when long-term storage is intended. -
Page 15: Exploded View
EXPLODED VIEW... -
Page 16: Replacement Parts List
Base with Electrode, NG S13305 Burner LP (Complete) S13319 Burner, NG (Complete) S26360-132Y Front Panel (2-burner) S26360-131Y Front Panel (1-burner) S13204 Twin Eagles Logo S14232 Self-locking Retaining Ring S16196 12V Switch S13270 Light Bezel Housing Assembly S13224 Lens, Light Bezel S13226... -
Page 17: Wiring Diagram
WIRING DIAGRAM TESB132/132F-C WIRING DIAGRAM SHOWN... -
Page 18: Trouble Shooting Guide
BEFORE CALLING FOR SERVICE: If your Twin Eagles Side Burner does not function properly, use the following trouble shooting guide before contacting your dealer for service. The troubleshooting guide may save you the cost of a service call and the inconvenience of being without your Side Burner. -
Page 19: Limited Product Warranty
2206. Be prepared to furnish the following information: Purchaser’s name, model and serial number of the grill, date of purchase and the accurate description of the problem. Twin Eagles will not pay for service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request and making the grill accessible for service. - Page 20 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 21 HOW TO OBTAIN SERVICE For service, please contact your TWIN EAGLES dealer or call TWIN EAGLES direct at (800) 789-2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13259 East 166 Street Cerritos, CA 90703 Visit us at www.twineaglesgrills.com...
