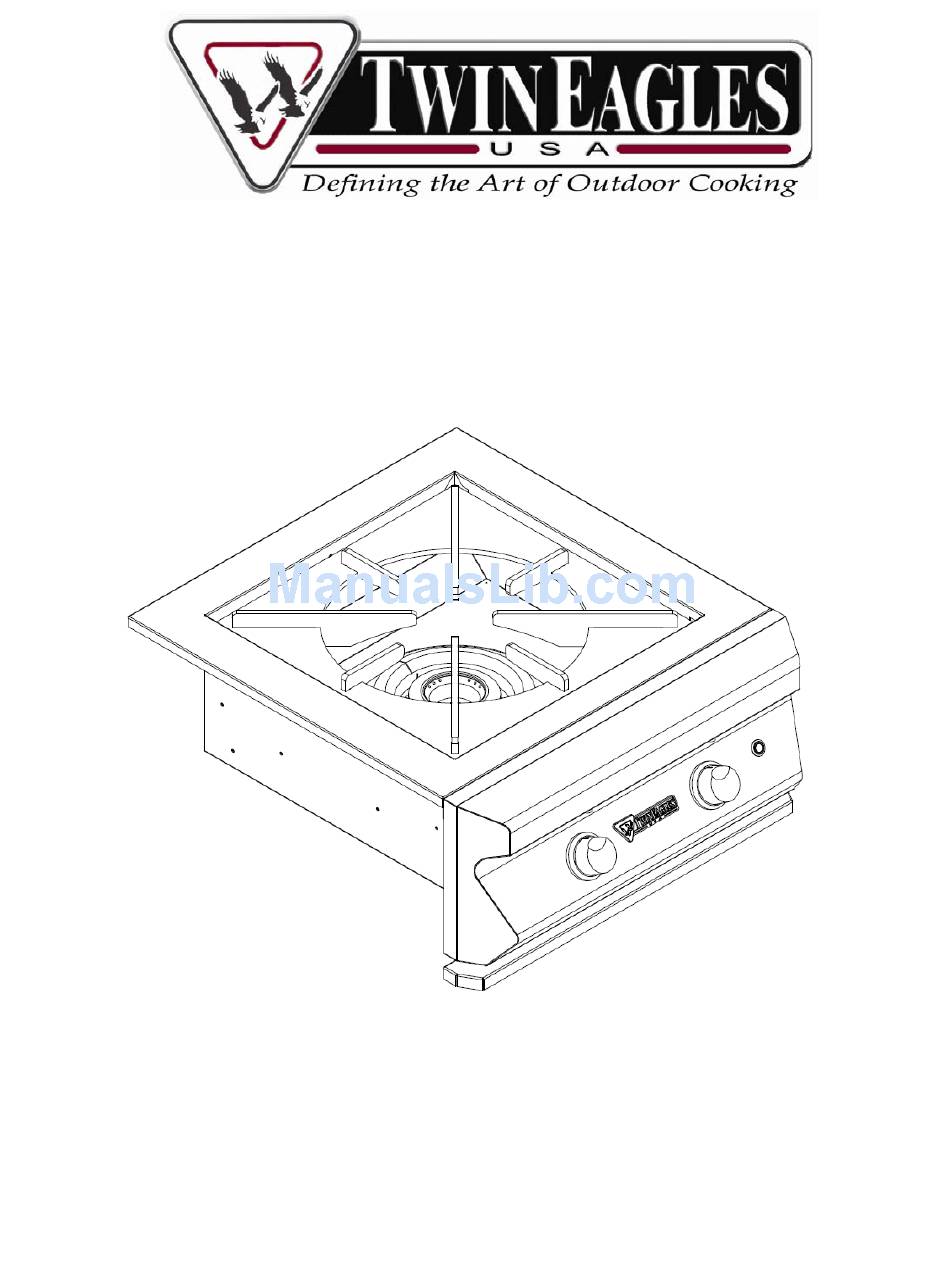

- Page 1 AGLES OWER URNER INSTALLATION, USE & CARE MANUAL Models: TEPB24HG-B (As Shown) TEPB24-B P/N: 18652A (04/12)
-
Page 2: Important Safety Information
– T IMPORTANT SAFETY INFORMATION AGLES OWER BURNER WARNING! Read this manual carefully and completely before using your Power Burner to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. F O R Y O U R S A F E T Y A V E R T I S S E M E N T If you smell gas:... - Page 3 GENERAL SAFETY REQUIREMENTS: 1. The installation of this appliance must conform with local codes or, in the absence of local codes, either the National Fuel Gas Code, ANZI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code. 2.
-
Page 4: Table Of Contents
TABLE OF CONTENTS – T AGLES OWER BURNER GETTING STARTED…………………………………………………………………………………….. 1 GAS REQUIREMENTS o GAS SAFETY REQUIREMENT…………………………………………..……………... 2 o LP GAS HOOKUP………….………………………………………………………..…… 3 o NATURAL GAS INSTALLATION…………………………………………………..….. 4 o LEAK TEST…………………………………………………………………………….… 4 ELECTRICAL REQUIREMENTS ……..…………………………..………………………………..… 5 ELECTRICAL WIRING DIAGRAM AND CUTOUT DIMENSIONS…………..………………….. 6 LOCATING THE POWER BURNER o CLEARANCE TO COMBUSTIBLE CONSTRUCTION………………………..………... -
Page 5: Gas Requirements
Specifications Value 3. Fill up the Warranty Registration Card and Counter Opening Height 11.50” mail it to the indicated address. Counter Opening Width 22.00” Counter Opening Depth 20.50” 70,000 NG Orifice Outer Ring NG Orifice Inner Ring LP Orifice Outer Ring LP Orifice Inner Ring –... -
Page 6: Lp Gas Hookup
It must be provided with a shut-off valve terminating in gas tank valve outlet. It must include a collar to protect the cylinder valve. The cylinder supply system must be arranged for vapor withdrawal. Do not operate the gas Power Burner indoors or in any enclosed area. If the gas Power Burner is not in use, the gas must be turned off at the supply cylinder. -
Page 7: Natural Gas Installation
– T NATURAL GAS INSTALLATION AGLES OWER BURNER The installation must conform with local codes or, in the absence of local codes, with either the national Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code. 1. -
Page 8: Electrical Requirements
LEAK TEST 1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half water. 2) Confirm that all control knobs are in the OFF position. 3) Turn the main gas valve supply ON. 4) Apply leak testing solution by spraying on the pipe joints, fittings, and hose. -
Page 9: Electrical Wiring Diagram And Cutout Dimensions
ELECTRICAL WIRING DIAGRAM AND TYPICAL CUTOUT DIMENSION CONNECTION DIAGRAM LADDER DIAGRAM Note: It is recommended to build the enclosure for the power burner 6”-12” lower than the countertop. – T LOCATING THE POWER BURNER AGLES OWER BURNER This gas appliance is designed and certified for outdoor use only. Do not locate this Power Burner under overhead combustible surfaces. -
Page 10: Clearance To Combustible Construction
CLEARANCE TO COMBUSTIBLE CONSTRUCTION A minimum clearance of 12” from the sides and 6” from the back of the Power Burner to adjacent vertical combustible construction must be maintained. DÉGAGEMENT DE TOUTE CONSTRUCTION COMBUSTIBLE Il faut maintenir une distance minimum de 12 po (30.48 cm) sur les côtés et de 6 po (15.24 cm) sur l’arrière du gril par rapport aux constructions combustibles verticales adjacentes. -
Page 11: Stainless Steel
– T CLEANING & MAINTENANCE AGLES OWER BURNER STAINLESS STEEL The T Power Burner is made of stainless steel construction. It is non-rusting and non- AGLES magnetic. Never clean the stainless steel when it is hot. After the initial cooking use, certain areas of the Power Burner may discolor. -
Page 12: Operating Instructions
– T OPERATING INSTRUCTIONS AGLES OWER BURNER BEFORE LIGHTING THE POWER BURNER DO NOT ATTEMPT TO LIGHT THE POWER BURNER IF YOU SMELL GAS. WARNING! IT IS CRITICAL THAT THE GAS BURNERS ARE PROPERLY INSTALLED WITH THEIR ORIFICES INSIDE THE BURNERS AIR SHUTTERS. If not properly installed, gas may leak outside of the burner that could lead to fire, potential damage to your Power Burner and bodily injury. -
Page 13: Replacement Parts
– T REPLACEMENT PARTS AGLES OWER BURNER Item TE Part Item TE Part Description Description Number Number S22321 Power Burner Cover S13147 Twin Eagles Emblem S22330Y Power Burner HD Grate S13128 Bezel Knob S16230 Hot Surface Igniter S13154 Knob S22309 Top Trim S16192 LED Holder... -
Page 14: Trouble Shooting Guide
– T TROUBLESHOOTING GUIDE AGLES OWER BURNER BEFORE CALLING FOR SERVICE: If your Twin Eagles Power Burner does not function properly, use the following troubleshooting guide before contacting your dealer for service. The troubleshooting guide may save the cost of a service call and the inconvenience of being without your Power Burner. -
Page 15: Limited Product Warranty
TWIN EAGLES POWER BURNER WARRANTY LIMITED LIFETIME WARRANTY: Twin Eagles warrants the main burners, grates and all fabricated stainless steel components, to be free from defects in materials and workmanship under normal residential use for the lifetime of the product. This warranty excludes discoloration, surface scratches, weather and atmospheric related staining, and minor surface rust and oxidation which are normal conditions and to be expected with any outdoor product. - Page 16 HOW TO OBTAIN SERVICE For service, please contact your TWIN EAGLES dealer or call TWIN EAGLES direct at (800) 789- 2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13231 East 166 Street Cerritos, CA 90703 Visit us at www.twineaglesbbq.com Please provide: ...
- Page 17 FOR YOUR RECORDS Please record the following information and refer to them when contacting the company or an authorized service agent. This information is found on the data nameplate, located on the panel behind the control panel of the Power Burner. Remove the drip pan to visually access the nameplate from the front of the Power Burner.
