Pro-Form 350s Crosstrainer Treadmill User Manual page 8

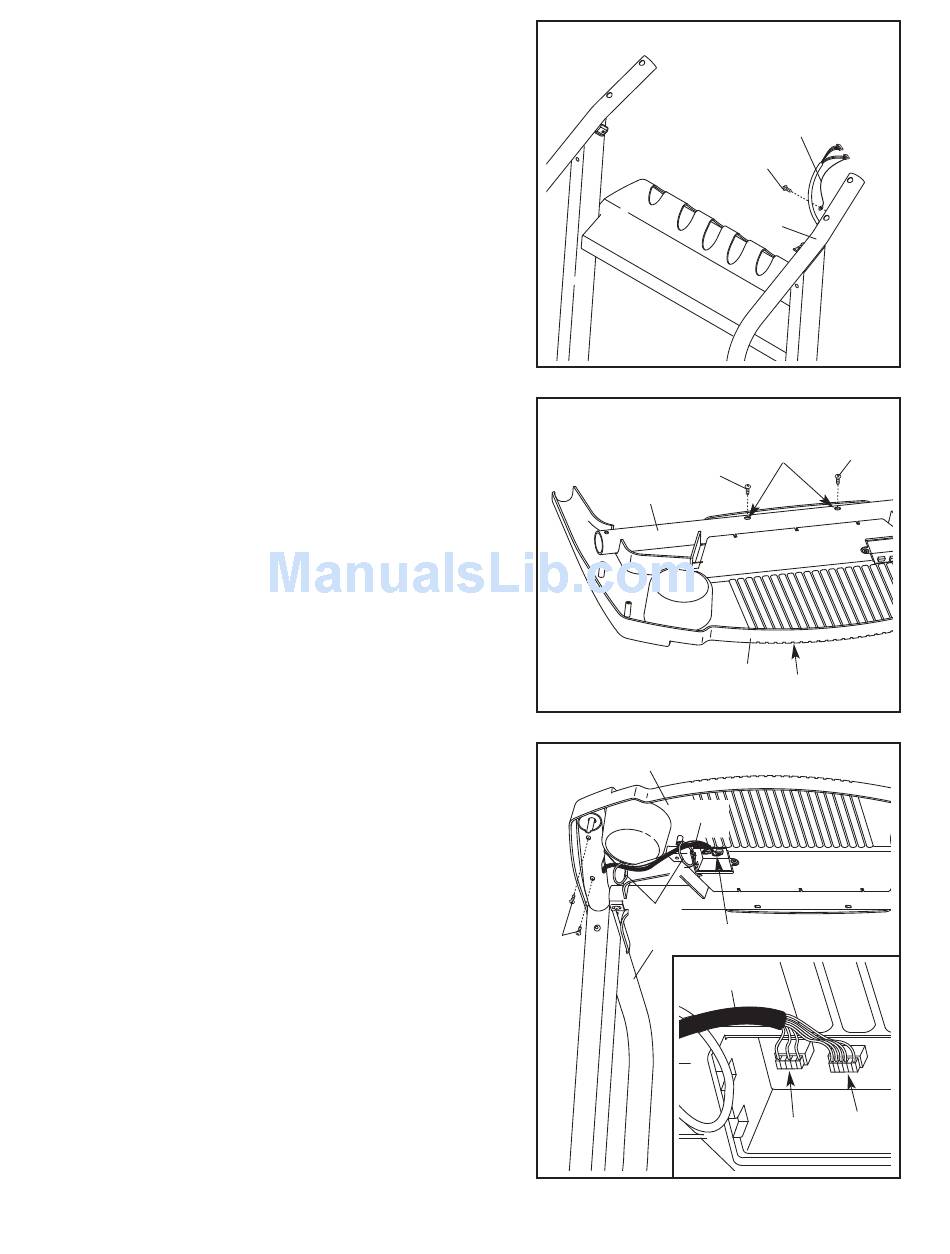

5. Attach the end of the ground wire to the small hole in the
side of the Right Handrail (72) with a Silver Ground
Screw (75).
6. Turn the Console Base (47) upside-down; be careful not
to scratch the Console (43). Set the Crossbar (40) in the
Console Base, with the indicated small holes on top.
Attach the Crossbar (40) to the Console Base (47) with two
3/4" Screws (2). Do not overtighten the Screws.
7. Place the Console Base (47) on the Right Handrail (72)
and the Left Handrail (not shown). Attach the Console
Base with four 3/4" Screws (2) (only two Screws are
shown). Do not overtighten the Screws.
Insert the Wire Harness (42) through the two indicated
plastic ties on the Console Base (47). Next, touch the
Right Handrail (72) to discharge any static. See the
inset drawing. Find the 5-pin connector on the end of the
Wire Harness. Insert the connector into the red socket be-
neath the console. The connector should slide easily
into the socket and snap into place. If the connector
does not slide easily and snap into place, turn the connec-
tor and then insert it. Insert the 6-pin connector into the
black socket beneath the console in the same way.
Make sure that the connectors and wires appear as
shown in the inset drawing. IF THE CONNECTORS ARE
NOT INSERTED PROPERLY, THE CONSOLE MAY BE
DAMAGED WHEN THE POWER IS TURNED ON.
5
6
40
7
47
Ties
2
8
Ground
Wire
75
72
Small
Holes
2
47
43
42
43
72
42
5-pin
2
6-pin
