Owner's Manual and
Installation Instructions
Heat Pump Model 5800
Español
For a Spanish version of this
manual, visit our Website at
ge.com.
Para consultar una version en
español de este manual de
instrucciones, visite nuestro
sitio de internet ge.com.
Française
For a French version of this
manual, visit our Website at
ge.com.
Pour une version française de
ce manuel d'utilisation, veuillez
visiter notre site web à l'adresse
ge.com.
TINSEA435JBRZ 49-7517 10-05 JR

Advertisement

   Also See for GE 5800

   Related Manuals for GE 5800

   Summary of Contents for GE 5800

  • Page 1: Table Of Contents

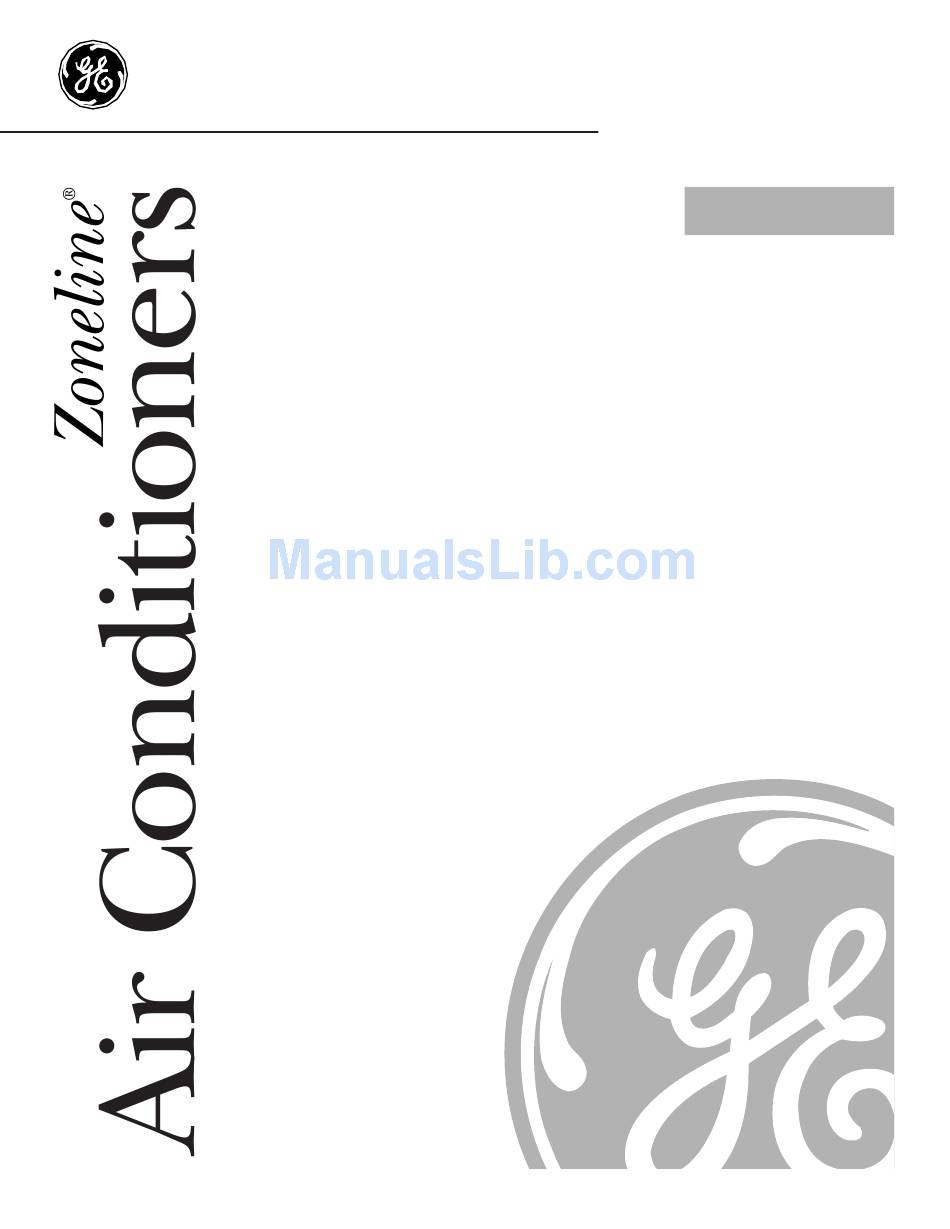

    Find these numbers on a label behind the room cabinet on the base pan. ge.com Owner’s Manual and Installation Instructions Heat Pump Model 5800 Español For a Spanish version of this manual, visit our Website at ge.com. Para consultar una version en español de este manual de...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. SAFETY PRECAUTIONS s This Zoneline must be properly installed in accordance with the...

  • Page 3: Controls

    25°F, heat is provided by the electric heater in the air conditioner instead of by the heat pump. Sleep Press to set the air conditioner to run for 8 hours before it automatically returns to the previous setting. When in the cooling mode and the sleep timer is set, the set temperature will automatically increase 2°F after the second...

  • Page 4: Air Direction

    Other features your Zoneline may have. Ventilation Control The ventilation control lever is located at the upper left side of the Zoneline unit, behind the room cabinet. NOTE: The vent door shipping hardware must be removed before using the vent control lever. See the Installation Instructions in this manual.

  • Page 5: Auxiliary Controls

    When this switch is disabled (DOWN), it allows the indoor fan to cycle on/off with the heat pump or heater operation. ge.com Dip Switches Reserved for future use DIAGNOS (Diagnostic Check) BOOST (Heat Boost Operation) HEAT S (Heat Sentinel) TL1 (H) (Temp.

  • Page 6

    Auxiliary controls on your Zoneline. Remote Thermostat–Class 2 When this switch is enabled (UP), it allows the unit to operate off of a Class 2 Remote Control Wall Thermostat. The unit controls are disabled. Load Shedding (CDC) This feature is active only if the unit is in CDC mode.

  • Page 7

    This feature automatically provides cooling without user interface. This helps to prevent an excessively hot room by turning the air conditioner ON at 85°F and OFF at 80°F. Heat Boost When this switch is enabled (UP) and outdoor temperatures are between 20° F and 46° F, heat pump only operation is locked out.

  • Page 8

    Auxiliary controls on your Zoneline. Auxiliary Controls–Terminal Connections The auxiliary controls are located behind the room cabinet below the control panel. Remove the room cabinet. See the To Remove the Room Cabinet section. Remove the screws from the lower panel front cover and lift the panel off.

  • Page 9

    Damage to a wall thermostat or to the Zoneline electronics can result from improper connections. Special care must be used in connecting blue and black wires. No line voltage connections should be made to any circuit. Isolate all wires in building from line voltage. ge.com...

  • Page 10: Care And Cleaning

    If they are clogged with dirt or soot, they may be professionally steam cleaned, a service available through your GE service outlet. You will need to remove the unit to inspect the coils because the dirt build-up occurs on the inside.

  • Page 11: Air Filters

    Replacement filters are available from your salesperson, GE dealer, GE Service and Parts Center or authorized Customer Care ge.com 2 Air filters Do not operate the ®...

  • Page 12: Installation Instructions

    Installation Instructions Questions? Call 800.GE.CARES (800.432.2737) BEFORE YOU BEGIN Read these instructions completely and carefully. IMPORTANT – • instructions for local inspector’s use. IMPORTANT – • governing codes and ordinances. Note to Installer – • Be sure to leave these instructions with the owner.

  • Page 13: Replacing An Existing Unit

    REPLACING AN EXISTING UNIT? Use the correct wall case This unit is designed to be installed in a GE plastic or insulated metal wall case. This minimizes condensation from forming on the room side of the case. If the current wall case is not insulated, you can reduce...

  • Page 14: Electrical Supply

    Perpendicular 15 Amp. 20 Amp. 230/208 volt receptacle configuration. Branch Circuit and Proper GE Power Cord Unit Amperage Rating *Not approved for use on 7000 BTU models. Installation Instructions Power cords may include an arc fault interruption or a leakage current detection interruption device. A test and reset button is provided on the plug case or the inline case.

  • Page 15

    These models must be installed using the appropriate GE power supply kit for the branch circuit amperage and the electrical resistance heater wattage desired. See the POWER CONNECTION CHART in these Installation Instructions.

  • Page 16

    265 VOLT ELECTRICAL SUPPLY REINSTALL JUNCTION BOX • Reinstall the junction box by engaging the tab at the lower rear, aligning the screw hole at the top and driving the one screw until secure. Be sure that all wire leads are inside the box and not pinched between the box and the unit.

  • Page 17: Installing The Zoneline

    Insulated Wall Case This unit is designed to be installed in a GE plastic or an insulated steel wall case. This minimizes condensation from forming on the room side of the case. The RAB71 series wall cases are insulated. Insulation kit RAK901L is available for use with RAB77 or existing uninsulated wall cases when needed.

  • Page 18

    NOTE: There are several extra holes in the unit side flanges for installation in wall cases other than GE. To avoid damaging the flange insulation, the installer should use an awl or other sharp tool to puncture the insulation in the appropriate holes before installing the attachment screws.

  • Page 19: Troubleshooting Tips

    • Outdoor grille must have a minimum of 65% free area. Non-GE grilles may be too restrictive for proper performance. Consult your salesperson for assistance. • Turn the control to a lower or higher setting.

  • Page 20: Normal Operating Sounds

    Before You Call For Service… Troubleshooting Tips Problem Possible Causes The air does not feel The heat pump alone warm enough during produces air that feels heating operation cooler than desired. Temperature display The compressor may flashes have failed. Things that are normal. Normal Operating Sounds COMPRESSOR PROTECTION...

  • Page 21: Product Registration

    ✁ Cut here Please place in envelope and mail to: General Electric Company Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150...

  • Page 22: Serial Number

    Check here if you do not want to receive communications from GEA’s carefully selected partners. FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS. For information about GEA's privacy and data usage policy, go to ge.com and click on "Privacy Policy" or call 800.626.2224. Read your Owner’s Manual carefully.

  • Page 23: Warranty

    Any part of the Zoneline which fails due to a defect in materials or workmanship. During this From the date of the full one-year warranty, GE will also provide, free of charge, all labor and on-site service to original purchase replace the defective part.

  • Page 24: Consumer Support

    Caution must be exercised, since improper servicing may cause unsafe operation. Contact Us If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations Register Your Appliance Register your new appliance on-line—at your convenience! Timely product registration will allow for...
