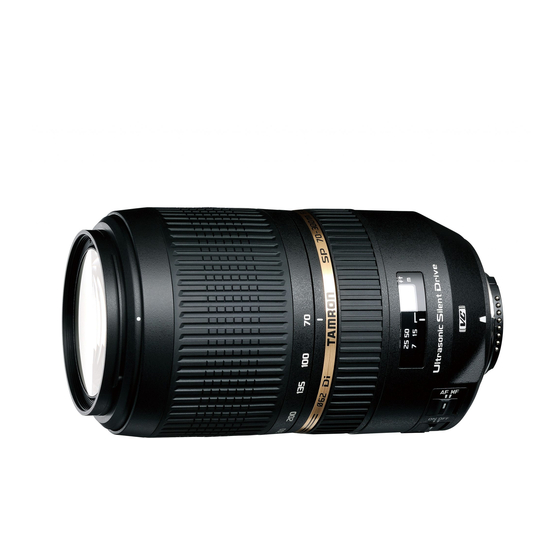

SP 70-300mm F/4-5.6
Di VC USD for Canon and Nikon (Model A005)
SP 70-300mm F/4-5.6
Thank you for purchasing the Tamron lens as the latest addition to your photographic
equipment. Before using your new lens, please read the contents of this Owner's Manual
thoroughly to familiarize yourself with your lens and the proper photographing
techniques for creating the highest quality images possible. With proper handling and
care, your Tamron lens will give you many years of photographing beautiful and exciting
pictures.
NOMENCLATURE (Refer to Fig. 1, if not specified)
1. Lens hood
2. Hood attaching alignment mark
3. Hood attaching indicator
4. Filter ring
5. Hood attaching index mark
6. Zooming ring
7. Focal length scale
8. Zoom index mark
9. Focusing ring
10. Distance scale
11. Distance index
12. VC (Vibration Compensation) switch
13. AF/MF switch (Fig. 3 & 4)
14. Lens attachment mark
15. Lens mount/Lens mount contacts
SPECIFICATIONS
Focal Length
Maximum Aperture
Angle of View
Lens Construction
Minimum Focus Distance
Maximum Magnification Ratio
Filter Size
Length
Diameter
Weight
Lens Hood
* Lengths, diameters and weights listed are of lenses with Nikon mounts.
Di USD for Sony (Model A005)
R
A005
70-300mm
F/4-5.6
34º 21' - 8º 15'
12/17
1.5 m
1:4.03
62 mm
142.7 mm
81.5 mm
765 g
HA005
Advertisement
Related Manuals for Tamron A005
Summary of Contents for Tamron A005
- Page 1 SP 70-300mm F/4-5.6 Di USD for Sony (Model A005) Thank you for purchasing the Tamron lens as the latest addition to your photographic equipment. Before using your new lens, please read the contents of this Owner’s Manual thoroughly to familiarize yourself with your lens and the proper photographing techniques for creating the highest quality images possible.
-
Page 3: Attaching And Removing The Lens
Press the shutter button further to photograph. Using the full-time manual function? A005 is equipped with the full-time manual function. The full-time manual function is a function that the focus can be fine-tuned by the manual focus without the AF/MF changing switch when taking a picture with autofocus. - Page 4 VC MECHANISM (Ref. Fig. 1, 5 & 6) (Mounted for Nikon and Canon models) VC (Vibration Compensation) is a mechanism that reduces the image blur caused by hand-held shooting. When using the VC, pictures can be taken at shutter speeds up to a maximum of 4 stops slower than the speed when the VC is not used.
- Page 5 (Fig. 7) and then rotate it clockwise to secure. The lens hood will be secure when the mark “TAMRON O” is at the top (Fig. 8). When attaching the lens hood, hold the focus and zoom control rings, so they are not rotated unintentionally.
- Page 6 -Certain models may indicate the maximum and minimum aperture values of the lens in approximate numbers. This is inherent to the design of the camera and not an indication of an error. TO ENSURE LONG-TERM SATISFACTION -Avoid touching the glass element surface. Use photographic lens cloths or blowers to remove dust from the lens element surface.
