Configuration Example—Cost-Reduced WAN
Optimal cost reduced
WAN example
Cost-reduced WAN using
RIP and SAP example
91
Reconfigure the router, disable dynamic routing on the link (if required)
3
and configure the required static routes, static backup routes and services
using the information obtained in Step 2.
Disabling dynamic routing on the link.
The optimal use of the WAN link is achieved by disabling RIP and SAP over the
WAN link and establishing static routes and services over the WAN link. This
eliminates all routing traffic from the WAN link, optimising the available band-
width for data transfers. However, establishing static routes and services is only
practical if relatively few networks and services require accessing over the WAN
link. For larger networks, dynamic routing using RIP and SAP is required to keep
track of network topology changes.
An example of a cost reduced WAN example using RIP and SAP is described
following.

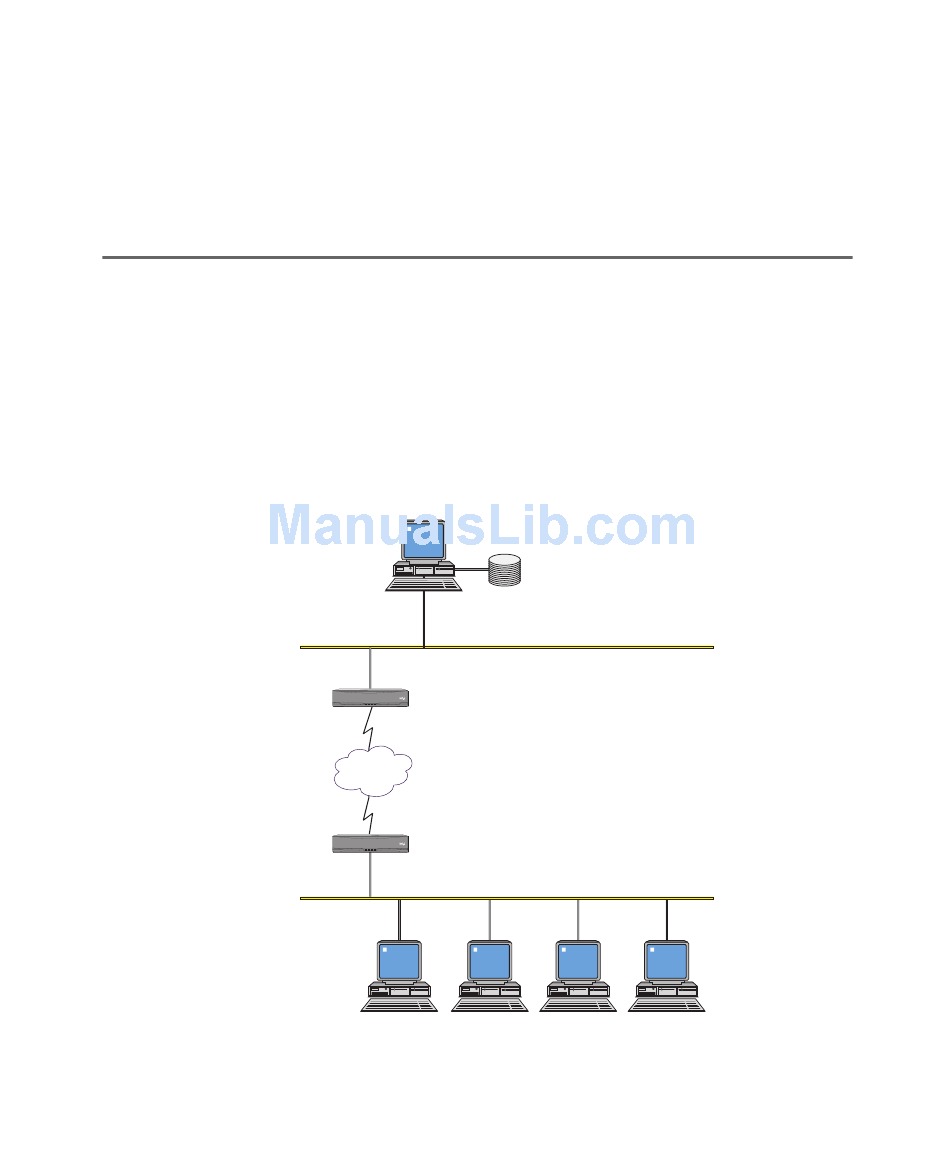

LAN A
Router 1
Intel Express Router 9200 ®
LAN WAN 1 WAN 2 System
Link 1
PDN
Intel Express Router 9200
® Router 2
LAN WAN 1 WAN 2 System
LAN B
023
Configuration Example—Cost-Reduced WAN
Server
Network 00000001
Network 00000002
PC's
Novell IPX Routing
