Leica S2 Technical Data

LEICA S2

Technical Data.

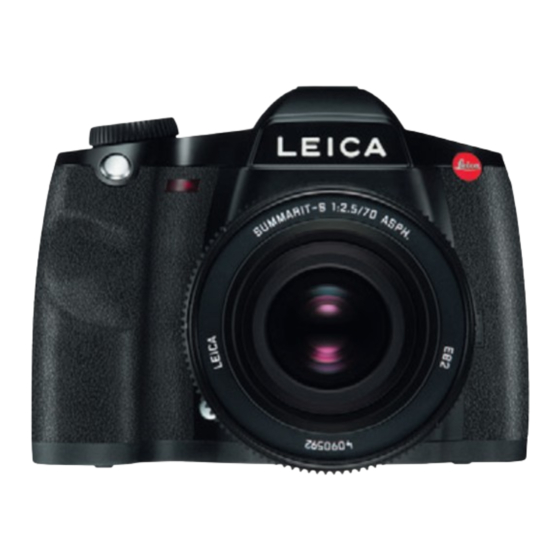

Kamera Leica S2
Order no. Leica S2 black 10801
Camera type Digital single-lens reflex camera for use with Leica S lenses.
Image sensor Low-noise CCD sensor, resolution: 37.5 megapixels, size: 45 x 30mm, pixel spacing: 6μm, aspect ratio: 3:2,
dynamic range: 12 stops, color depth: 16 bits per pixel, low-pass filter: no.
Sensitivity range ISO Pull 80 to 1250 (manual or automatic control).
Data storage Format: DNG (approx. 75 MB per image); lossless compressed DNG (about 35-45 MB per picture), JPEG (basic or fine),
memory cards: CompactFlash (up to 64 GB), SD (HC).
Maximum frame rate 1.5 images/s, buffer memory: 1 GB (DNG: around 10 consecutive exposures, lossless compressed DNG:
around 14 consecutive exposures).
Control monitor 3-inch TFT with 460,000 pixels, 16 million colors, cover glass: highly abrasion and scratch resistant sapphire glass
(only with the Leica S2-P).
Connections High-speed USB 2.0 (robust connection with strain-relief, cable included), HDMI, remote release, X sync, SCA3002.
Exposure metering Multi-field metering (5 fields), center-weighted integral metering, spot metering (3.5%).
Exposure control Program mode (with Shift function), shutter priority, aperture priority, manual metering.
Shutter Metal focal-plane shutter integrated in body: 1/4000 s to 125 s, flash sync time: 1/125 s,
optional leaf shutter in selected lenses: 1/500 s to 8 s, flash synch time: 1/500 s.
Flash operation Metering method: TTL (multi-field, selective, center-weighted), TTL-HSS High-speed synchronization up to 1/4000 s
with shutter, compatibility: fully compatible with Leica SF 58 and devices with SCA3002 adapters.
Auto Focus Central crosshair sensor, focusing drive in lens, operating modes: AF continuous, AF single, MF, AF memory with
AF lock button.
Viewfinder High eye-point pentaprism viewfinder, magnification: 0.86x, viewfinder field: 96%, diopter compensation -3 to +1,
focusing screen: matte with cross-hairs (interchangeable).
Power supply Li-Ion Akku (7.4 V, 2150 mAh)
Housing Die-cast magnesium, size (without lens): 160 x 120 x 80 mm/6.29 x 4.72 x 3.15 in,
weight: 1410 g/49.73 oz (including battery), resistant to dust and dripping/splashing water.

Scope of supply

Leica S2 Body, battery, charging unit, USB cable, carrying strap, neoprene carrying strap, ocular lens cap, bayonet lens cap,
Software: Adobe Photoshop Lightroom, Leica Image Shuttle.
Leica Camera AG / Oskar-Barnack-Strasse 11 / 35606 SOLMS / GERMANY / Telephone +49(0)6442-208-0 / Telefax +49(0)6442-208-333 / www.leica-camera.com
Leica S2-P black 10802
Page 1 of 1 / As at March 2011 / Specifications are subject to change without notice
